M1001S214 8.000000|ATSM-49-R|SMD晶振|MTRONPTI晶振

当前位置：首页 » 美国晶振 / AmericaCrystal » MTRONPTI麦特伦皮晶振 » M1001S214 8.000000|ATSM-49-R|SMD晶振|MTRONPTI晶振

prevnext

M1001S214 8.000000|ATSM-49-R|SMD晶振|MTRONPTI晶振

频率：8MHZ

尺寸：HC-49S-SMD

M1001S214 8.000000|ATSM-49-R|SMD晶振|MTRONPTI晶振,编码M100214 8.000000,型号ATSM-49-R,SMD晶振,MTRONPTI晶振,频率为8MHZ,负载电容为18PF,精度±50ppm,尺寸HC-49S-SMD,温度范围:-40℃-85℃, 石英晶体谐振器,贴片晶振,其因轻小薄特点,广泛应用在智能手机,智能手环,平板电脑,智能手表,钟表,汽车零件,摄像头,U盘,USB转接器.

订购热线：0755-27838351

M1001S214 8.000000|ATSM-49-R|SMD晶振|MTRONPTI晶振,编码M100214 8.000000,型号ATSM-49-R,SMD晶振,MTRONPTI晶振,频率为8MHZ,负载电容为18PF,精度±50ppm,尺寸HC-49S-SMD,温度范围:-40℃-85℃, 石英晶体谐振器,贴片晶振,其因轻小薄特点,广泛应用在智能手机,智能手环,平板电脑,智能手表,钟表,汽车零件,摄像头,U盘,USB转接器.

M1001S214 8.000000|ATSM-49-R|SMD晶振|MTRONPTI晶振

型号	ATSM-49-R
频率范围	8MHZ
负载电容	±50PF
精度	18PPM
工作温度	-45℃-85℃
存在温度	-50℃-125℃

M1001S214 8.000000|ATSM-49-R|SMD晶振|MTRONPTI晶振

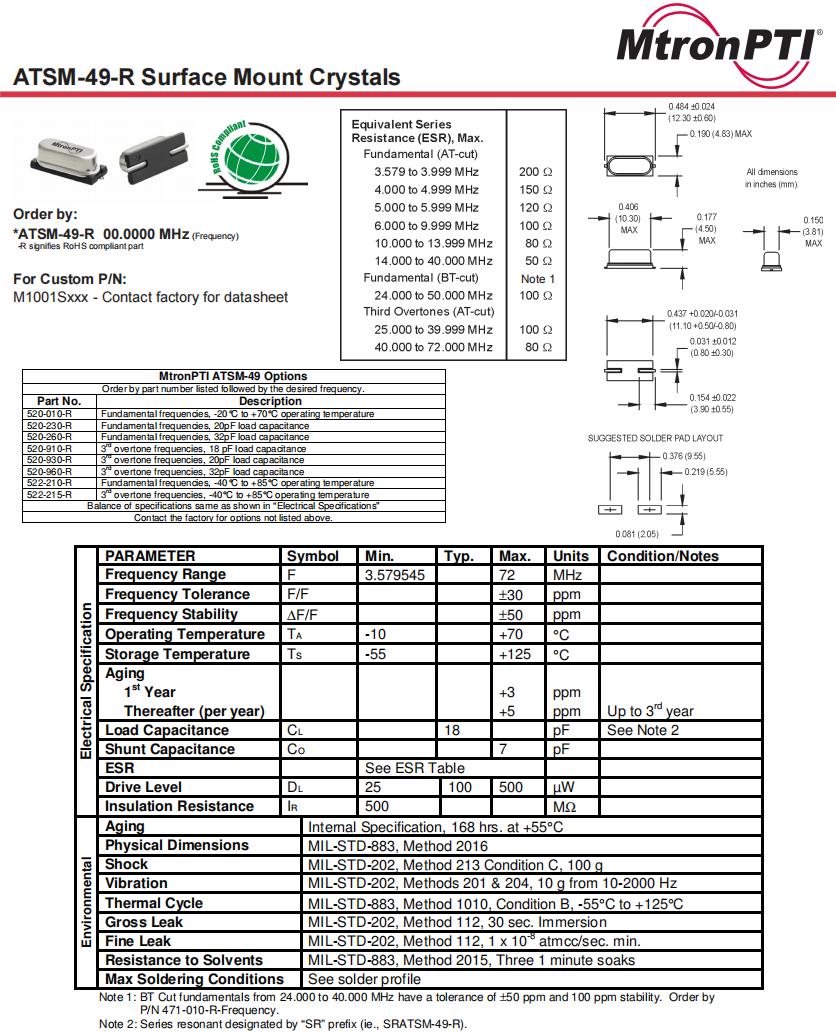

Part number	Series Datasheet	Crystal Resonator Technology	Frequency Stability	Frequency (MHz)	Frequency Tolerance	Aging	Package	Temperature Range
M1001S025-R 3.686400	石英晶振	AT	±50 ppm	3.6864	±30 ppm	±5 ppm	HC-49S-SMD	-40?C to +85?C
M1001S066 25.000000	ATSM-49-R Series	AT	±50 ppm	25	±30 ppm	±5 ppm	HC-49S-SMD	-10?C to +70?C
M1001S096 24.000000	ATSM-49-R Series	AT	±50 ppm	24	±30 ppm	±5 ppm	HC-49S-SMD	-40?C to +125?C
M1001S097 30.000000	ATSM-49-R Series	AT	±50 ppm	30	±30 ppm	±5 ppm	HC-49S-SMD	-40?C to +125?C
M1001S175-R 4.000000	ATSM-49-R Series	AT	±10 ppm	4	±25 ppm	±5 ppm	HC-49S-SMD	0?C to +70?C
M1001S182 25.000000	ATSM-49-R Series	AT	±50 ppm	25	±30 ppm	±5 ppm	HC-49S-SMD	-40?C to +85?C
M1001S214 8.000000	ATSM-49-R Series	AT	±50 ppm	8	±30 ppm	±5 ppm	HC-49S-SMD	-40?C to +85?C
M1001S258 10.000000	ATSM-49-R Series	AT	±50 ppm	10	±50 ppm	±5 ppm	HC-49S-SMD	-40?C to +125?C
M1001S286 26.000000	ATSM-49-R Series	AT	±50 ppm	26	Varies	±3 ppm	HC-49S-SMD	-20?C to +75?C
M1001S328 26.000000	ATSM-49-R Series	AT	±15 ppm	26	±10 ppm	±3 ppm	HC-49S-SMD	-40?C to +85?C
M1001S445 50.000000	ATSM-49-R Series	AT	±20 ppm	50	±15 ppm	±3 ppm	HC-49S-SMD	-40?C to +85?C
M1001S448 8.000000	ATSM-49-R Series	AT	±50 ppm	8	±50 ppm	±5 ppm	HC-49S-SMD	-55?C to +105?C
M1001S483 4.194304	ATSM-49-R Series	AT	±50 ppm	4.1943	±30 ppm	±5 ppm	HC-49S-SMD	-10?C to +70?C
M1001S554 25.000000	ATSM-49-R Series	AT	±50 ppm	25	±20 ppm	±5 ppm	HC-49S-SMD	-20?C to +70?C
M1001S559 14.463660	ATSM-49-R Series	AT	±30 ppm	14.4637	±30 ppm	NS	HC-49S-SMD	-40?C to +105?C
M1001S599 24.576000	ATSM-49-R Series	AT	±100 ppm	24.576	±30 ppm	±3 ppm	HC-49S-SMD	-55?C to +125?C
M1001S600 16.777216	ATSM-49-R Series	AT	±50 ppm	16.7772	±50 ppm	±5 ppm	HC-49S-SMD	-40?C to +85?C
M1001S602 8.000000	ATSM-49-R Series	AT	±50 ppm, ±100 ppm	8	±30 ppm	±5 ppm	HC-49S-SMD	0?C to +70?C
M1001S609 4.000000	ATSM-49-R Series	AT	±100 ppm	4	±30 ppm	±3 ppm	HC-49S-SMD	-40?C to +125?C
M1002S286 57.770833	HC-49UN Series	AT	±10 ppm	57.7708	±10 ppm	±1 ppm	HC-49U	-20?C to +70?C
M1004S050 12.288000	ATS-49 series	AT	±50 ppm	12.288	±30 ppm	±5 ppm	HC-49S	-40?C to +85?C
M1004S051 20.000000	ATS-49 series	AT	±50 ppm	20	±30 ppm	±5 ppm	HC-49S	-40?C to +85?C
M1004S156 24.000000	ATS-49 series	AT	±50 ppm	24	±50 ppm	±5 ppm	HC-49S	-40?C to +70?C
M1006S028 16.384000	HC-49UN Series	AT	±30 ppm	16.384	±20 ppm	±5 ppm	HC-49U-SMD	-40?C to +85?C
