爱普生7050mm振荡器,X1G004281001400,SG7050VAN低功耗晶振

频率：156.250000MHz

尺寸：7.0x5.0x1.6mm

爱普生7050mm振荡器,X1G004281001400,SG7050VAN低功耗晶振，日本进口晶振，EPSON爱普生晶振，型号：SG7050VAN，编码为：X1G004281001400，频率为：156.250000MHz，小体积晶振尺寸：7.0x5.0x1.6mm封装，六脚贴片晶振，LVDS输出差分晶振，SPXO石英晶体振荡器，SMD晶振，有源晶振，石英晶振，晶体振荡器，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，低抖动，低功耗，低电源电压，低耗能，低相位噪声，高精度，高性能，高品质等特点。7050晶振应用于：通讯设备、无线网络，蓝牙模块，机顶盒、光端机、GPS定位，导航仪，安防设备、路由器/交换机、仪器仪表、光纤通信，10G以太网，物联网等应用。

订购热线：0755-27838351

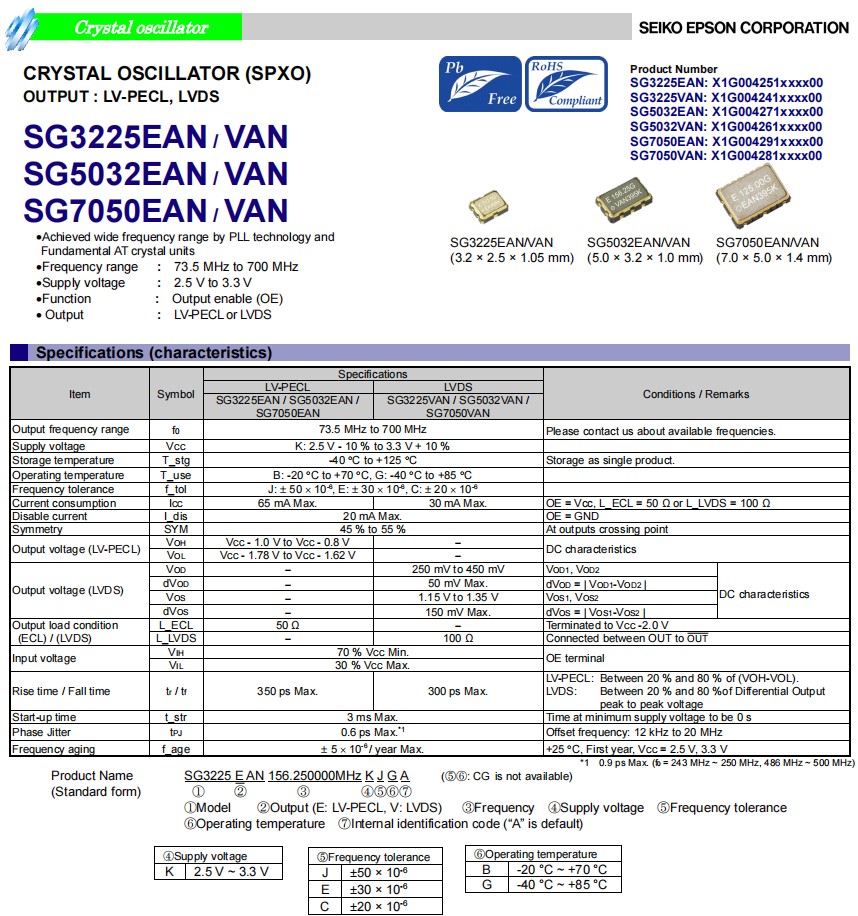

爱普生7050mm振荡器,X1G004281001400,SG7050VAN低功耗晶振 参数表

Item	Symbol	Specifications		Condition/Remarks
		LV-PECL	LVDS
		SG3225EAN	SG3225VAN
		SG5032EAN	SG5032VAN
		SG7050EAN	SG7050VAN
Output frequency range	f0	156.250MHz		Please contact us about available frequencies.
Supply voltage	VCC	K : 2.5 V to 3.3 V		VCC = ±10 %
Storage temperature	T_stg	-40 °C to +125 °C		Store as bare product.
Operating temperature	T_use	B : -20 °C to +70 °C
		G : -40 °C to +85 °C
Frequency tolerance	f_tol	C : ±20 × 10-6
		E : ±30 × 10-6
		J : ±50 × 10-6
Current consumption	ICC	65 mA Max.	30 mA Max.	OE = VCC
				L_ECL = 50 Ω or L_LVDS = 100 Ω
				f0 = 700 MHz
Disable current	I_dis	20 mA Max.		OE = GND
Symmetry	SYM	45 % to 55 %		At outputs crossing point
Output voltage	VOH	VCC - 1.0 V to VCC - 0.8 V	-	DC characteristics
(LV-PECL)	VOL	VCC - 1.78 V to VCC -1.62 V	-
Output voltage	VOD	-	250 mV to 450 mV	VOD1 , VOD2	DC characteristics
(LVDS)	dVOD	-	50 mV Max.	dVOD = \| VOD1 - VOD2 \|
	VOS	-	1.15 V to 1.35 V	VOS1 , VOS2
	dVOS	-	150 mV Max.	dVOS = \| VOS1 - VOS2 \|
Output load condition	L_ECL	50 Ω	-	Terminated to VCC - 2.0 V
(ECL)/(LVDS)	L_LVDS	-	100 Ω	Connected between OUT to OUT
Input voltage	VIH	70 % VCC Min.		OE terminal
	VIL	30 % VCC Max.
Rise time / Fall time	tr/tf	350 ps Max.	-	Between 20 % and 80 % of ( VOH - VOL )
		-	300 ps Max.	Between 20 % and 80 %of Differential Output peak to peak voltage.
Start-up time	t_str	3ms Max.		Time at minimum supply voltage to be 0 s
Phase Jitter	tPJ	0.6 ps Max. *1		Offset frequency : 12 kHz to 20 MHz
Frequency aging	f_aging	±5 × 10-6 / year Max.		+25 °C , VCC = 2.5 V or 3.3 V
				First year.

爱普生7050mm振荡器,X1G004281001400,SG7050VAN低功耗晶振 尺寸图

爱普生7050mm振荡器,X1G004281001400,SG7050VAN低功耗晶振

差分晶振是普通贴片晶振所不能够达到的,差分晶振具有低电平,低抖动,低功耗等特性.差分晶振作为目前行业中高要求,高技术石英晶体振荡器,具有相位低,损耗低的特点,差分晶振使用于产品中能够很容易地识别小信号,能够从容精确地处理双级信号,对外部电磁干扰(EMI)是高度免疫的,差分石英晶振满足市场需求,实现高频高精度等要求,更加保障了各种系统参考时钟的可靠性.

编码	进口晶振	型号	频率	尺寸	输出方式
X1G004281000100	EPSON晶振	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281000200	EPSON晶振	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281000400	EPSON晶振	SG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281000500	EPSON晶振	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281000600	EPSON晶振	SG7050VAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281000700	EPSON晶振	SG7050VAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281000800	EPSON晶振	SG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281000900	EPSON晶振	SG7050VAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281001000	EPSON晶振	SG7050VAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281001100	EPSON晶振	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281001200	EPSON晶振	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281001400	EPSON晶振	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281001500	EPSON晶振	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281001600	EPSON晶振	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281001700	EPSON晶振	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281002000	EPSON晶振	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281002100	EPSON晶振	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281002300	EPSON晶振	SG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281002400	EPSON晶振	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281002500	EPSON晶振	SG7050VAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281002600	EPSON晶振	SG7050VAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281002700	EPSON晶振	SG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281002800	EPSON晶振	SG7050VAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281002900	EPSON晶振	SG7050VAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281003000	EPSON晶振	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281003100	EPSON晶振	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281003200	EPSON晶振	SG7050VAN	155.520000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281003300	EPSON晶振	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281003400	EPSON晶振	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281003500	EPSON晶振	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281003600	EPSON晶振	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281003800	EPSON晶振	SG7050VAN	700.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281003900	EPSON晶振	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281004000	EPSON晶振	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281004200	EPSON晶振	SG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281004300	EPSON晶振	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281004400	石英晶振	SG7050VAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281004500	EPSON晶振	SG7050VAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281004600	EPSON晶振	SG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281004700	EPSON晶振	SG7050VAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281004800	EPSON晶振	SG7050VAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281004900	EPSON晶振	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281005000	EPSON晶振	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281005200	EPSON晶振	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281005300	EPSON晶振	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281005400	EPSON晶振	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281005500	EPSON晶振	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281005800	EPSON晶振	SG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281005900	EPSON晶振	SG7050VAN	125.006250 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281006100	EPSON晶振	SG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281006200	EPSON晶振	SG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281006300	EPSON晶振	SG7050VAN	400.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281006400	EPSON晶振	SG7050VAN	106.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281006500	EPSON晶振	SG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281006600	EPSON晶振	SG7050VAN	74.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281006700	EPSON晶振	SG7050VAN	148.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281006800	EPSON晶振	SG7050VAN	75.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281006900	EPSON晶振	SG7050VAN	150.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281007100	EPSON晶振	SG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281007200	EPSON晶振	SG7050VAN	312.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281007300	EPSON晶振	SG7050VAN	312.515625 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281007400	EPSON晶振	SG7050VAN	161.132800 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281007900	EPSON晶振	SG7050VAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281008000	EPSON晶振	SG7050VAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281008300	EPSON晶振	SG7050VAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281008400	EPSON晶振	SG7050VAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281008700	EPSON晶振	SG7050VAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281008800	EPSON晶振	SG7050VAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281009100	EPSON晶振	SG7050VAN	50.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281009200	EPSON晶振	SG7050VAN	68.750000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281009600	EPSON晶振	SG7050VAN	148.350000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281010200	EPSON晶振	SG7050VAN	98.304000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281010300	EPSON晶振	SG7050VAN	80.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281010400	EPSON晶振	SG7050VAN	114.285000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281010500	EPSON晶振	SG7050VAN	250.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
X1G004281010600	EPSON晶振	SG7050VAN	350.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS
