FC3BQ晶振,FC3BQBBMF36.0-T3,36MHZ,福克斯3225mm薄型晶振
频率：36MHZ
尺寸：3.2x2.5mm
FC3BQ晶振,FC3BQBBMF36.0-T3,36MHZ,福克斯3225mm薄型晶振,美国FOX晶振,欧美进口晶振,四脚贴片晶振,SMD晶体谐振器,贴片晶振,36MHZ水晶振动子,3225小尺寸晶振,无源晶振,尺寸3.2x2.5mm,频率36MHZ,负载20pF,工作温度-20~+70°C,无铅环保晶振,高品质晶振,低损耗晶振,数码相机晶振,无线局域网晶振,智能音响晶振.
订购热线：0755-27838351
FC3BQ晶振,FC3BQBBMF36.0-T3,36MHZ,福克斯3225mm薄型晶振,美国FOX晶振,欧美进口晶振,四脚贴片晶振,SMD晶体谐振器,贴片晶振,36MHZ水晶振动子,3225小尺寸晶振,无源晶振,尺寸3.2x2.5mm,频率36MHZ,负载20pF,工作温度-20~+70°C,无铅环保晶振,高品质晶振,低损耗晶振,数码相机晶振,无线局域网晶振,智能音响晶振.
FC3BQ晶振,FC3BQBBMF36.0-T3,36MHZ,福克斯3225mm薄型晶振特点:
尺寸3.2x2.5mm贴片晶振类型包装
公差低至±20PPM
稳定性低至±10PPM

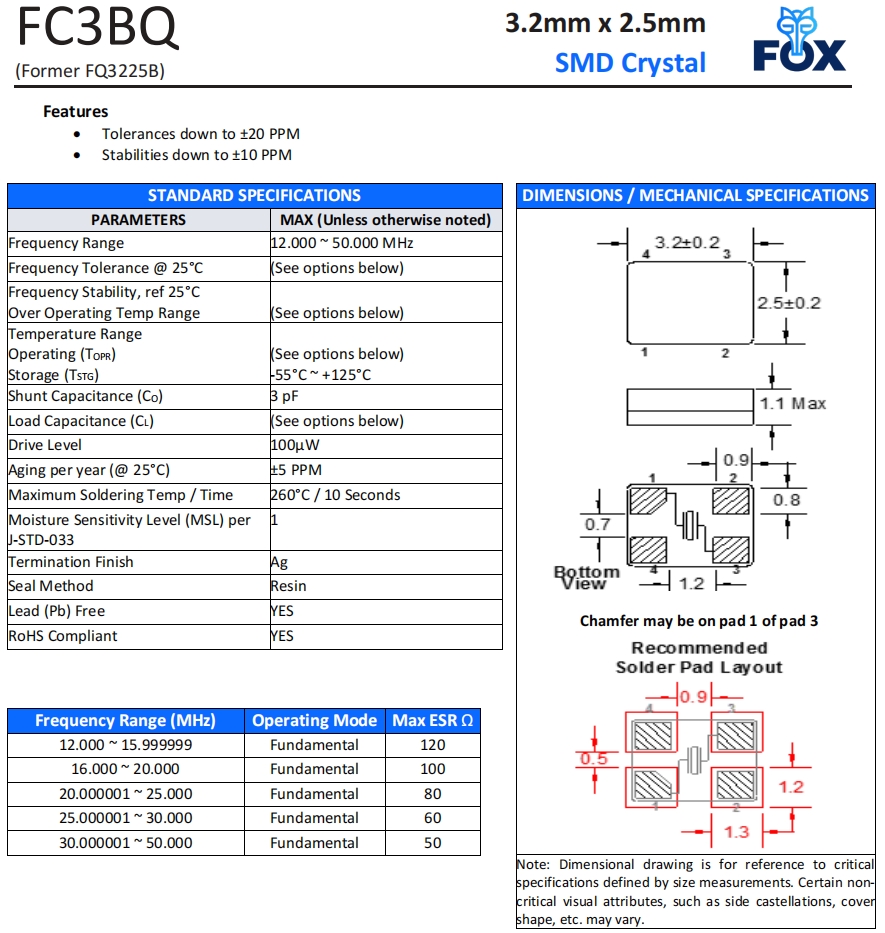

FC3BQ晶振,FC3BQBBMF36.0-T3,36MHZ,福克斯3225mm薄型晶振 参数表
| STANDARD SPECIFICATIONS | |||||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||||
| Frequency Range | 36.000 MHz | ||||||||||||||

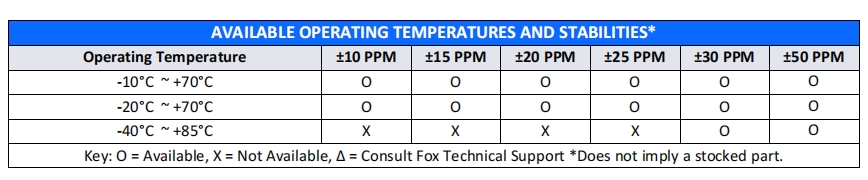

| Frequency Tolerance @ 25°C | (See options below) | ||||||||||||||
|
Frequency Stability, ref 25°C Over Operating Temp Range |
(See options below) | ||||||||||||||
|
Temperature Range Operating (TOPR) Storage (TSTG) |
(See options below) -55°C ~ +125°C |
||||||||||||||
| Shunt Capacitance (CO) | 3 pF | ||||||||||||||
| Load Capacitance (CL) | (See options below) | ||||||||||||||
| Drive Level | 100µW | ||||||||||||||
| Aging per year (@ 25°C) | ±5 PPM | ||||||||||||||
| Maximum Soldering Temp / Time | 260°C / 10 Seconds | ||||||||||||||
|
Moisture Sensitivity Level (MSL) per J-STD-033 |
1 | ||||||||||||||
| Termination Finish | Ag | ||||||||||||||
| Seal Method | Resin | ||||||||||||||
| Lead (Pb) Free | YES | ||||||||||||||
| RoHS Compliant | YES | ||||||||||||||

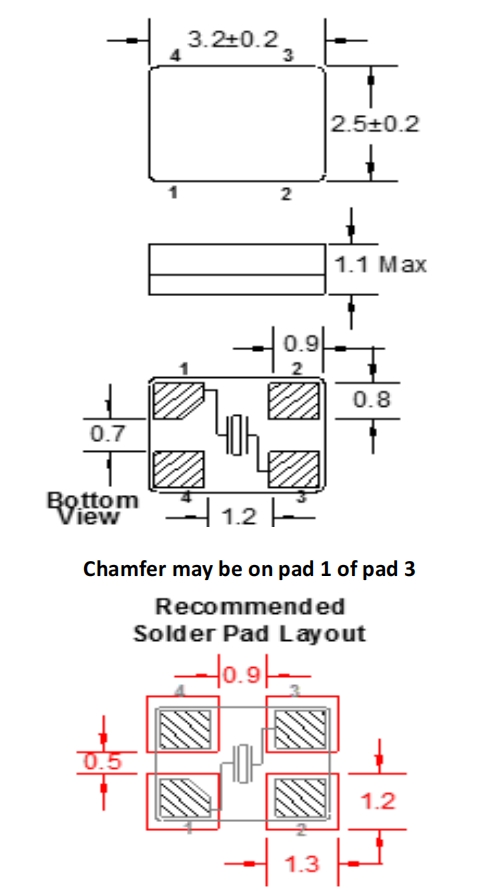

FC3BQ晶振,FC3BQBBMF36.0-T3,36MHZ,福克斯3225mm薄型晶振 尺寸图
| Manufacturer Part Number原厂编码 | Manufacturer厂家 | Series型号 | Frequency | Frequency Stability频率稳定度 |
| FOXSDLF/120-20 | Fox福克斯晶振 | HC49SDLF | 12MHz | ±50ppm |
| FOXSDLF/0368-20 | Fox福克斯晶振 | HC49SDLF | 3.6864MHz | ±50ppm |
| FOXSDLF/115-20 | Fox福克斯晶振 | HC49SDLF | 11.0592MHz | ±50ppm |
| FX135A-327 | Fox福克斯晶振 | FX135A | 32.768kHz | - |
| FSRLF327 | Fox福克斯晶振 | FSRLF | 32.768kHz | - |
| FSXLF327 | Fox福克斯晶振 | FSXLF | 32.768kHz | - |
| FOXSLF/080-20 | Fox福克斯晶振 | HC49SLF | 8MHz | ±50ppm |
| FQ5032B-12.000 | Fox福克斯晶振 | C5BQ | 12MHz | ±30ppm |
| FQ5032B-25.000 | Fox福克斯晶振 | C5BQ | 25MHz | ±30ppm |
| FSMLF327 | Fox福克斯晶振 | FSMLF | 32.768kHz | - |
| FQ7050B-8.000 | Fox福克斯晶振 | C7BQ | 8MHz | ±30ppm |
| FQ7050B-7.3728 | Fox福克斯晶振 | C7BQ | 7.3728MHz | ±30ppm |
| FQ1045A-6.000 | Fox福克斯晶振 | FQ1045A | 6MHz | ±30ppm |
| FQ1045A-4.000 | Fox福克斯晶振 | FQ1045A | 4MHz | ±30ppm |
| FOXLF024S | Fox福克斯晶振 | HC49ULF | 2.4576MHz | ±50ppm |
| FOXSDLF/160-20 | Fox福克斯晶振 | HC49SDLF | 16MHz | ±50ppm |
| FOXSDLF/200-20 | 福克斯晶振 | HC49SDLF | 20MHz | ±50ppm |
| FOXSDLF/080-20 | 福克斯晶振 | HC49SDLF | 8MHz | ±50ppm |
| FOXSDLF/250F-20 | 福克斯晶振 | HC49SDLF | 25MHz | ±50ppm |
| FOXSDLF/147-20 | 福克斯晶振 | HC49SDLF | 14.7456MHz | ±50ppm |
| FOXSDLF/240F-20 | 福克斯晶振 | HC49SDLF | 24MHz | ±50ppm |
| FOXSDLF/080R-20/TR | 福克斯晶振 | HC49SDLF | 8MHz | ±50ppm |
| FQ3225B-12.000 | 福克斯晶振 | FQ3225B | 12MHz | ±50ppm |
| FOXSLF/200-20 | 福克斯晶振 | HC49SLF | 20MHz | ±50ppm |
| FOXSLF/120-20 | 福克斯晶振 | HC49SLF | 12MHz | ±50ppm |
| FOXSLF/040 | 福克斯晶振 | HC49SLF | 4MHz | ±50ppm |
| FOXSLF/184-20 | 福克斯晶振 | HC49SLF | 18.432MHz | ±50ppm |
| FOXSLF/036S | 福克斯晶振 | HC49SLF | 3.579545MHz | ±50ppm |
| FOXSLF/221-20 | 福克斯晶振 | HC49SLF | 22.1184MHz | ±50ppm |
| FOXSLF/100-20 | 福克斯晶振 | HC49SLF | 10MHz | ±50ppm |
| FX252BS-16.000 | 福克斯晶振 | FX252B | 16MHz | ±50ppm |
| FQ5032B-20.000 | 福克斯晶振 | C5BQ | 20MHz | ±30ppm |
| FQ7050B-6.000 | 福克斯晶振 | C7BQ | 6MHz | ±30ppm |
| FOXLF100-20 | 福克斯晶振 | HC49ULF | 10MHz | ±50ppm |
| FOXLF200-20 | 福克斯晶振 | HC49ULF | 20MHz | ±50ppm |
| FOXLF080-20 | 福克斯晶振 | HC49ULF | 8MHz | ±50ppm |
| FOXLF115-20 | 福克斯晶振 | HC49ULF | 11.0592MHz | ±50ppm |
| NC38LF-327 | 福克斯晶振 | NC38LF | 32.768kHz | - |
| FOXLF040 | 福克斯晶振 | HC49ULF | 4MHz | ±50ppm |
| NC26LF-327 | 福克斯晶振 | NC26LF | 32.768kHz | - |
| FOXLF036S | FOX CRYSTAL | HC49ULF | 3.579545MHz | ±50ppm |
| FQ3225B-25.000 | 福克斯晶振 | FQ3225B | 25MHz | ±50ppm |
| FQ1045A-3.6864 | 福克斯晶振 | FQ1045A | 3.6864MHz | ±30ppm |
| FOXLF018S | 福克斯晶振 | HC49ULF | 1.8432MHz | ±50ppm |
| FOXSDLF/036S | 福克斯晶振 | HC49SDLF | 3.579545MHz | ±50ppm |
| FOXSDLF/120R-20/TR | 福克斯晶振 | HC49SDLF | 12MHz | ±50ppm |
| FSRLF327-6 | 福克斯晶振 | FSRLF | 32.768kHz | - |
| FOXLF115 | 福克斯晶振 | HC49ULF | 11.0592MHz | ±50ppm |
| FQ3225B-24.000 | 福克斯晶振 | FQ3225B | 24MHz | ±50ppm |
| FOXLF0368S | 福克斯晶振 | HC49ULF | 3.6864MHz | ±50ppm |
| FOXSDLF/184-20 | 福克斯晶振 | HC49SDLF | 18.432MHz | ±50ppm |
| FOXSDLF/060-20 | 福克斯晶振 | HC49SDLF | 6MHz | ±50ppm |
| FOXSDLF/040 | 福克斯晶振 | HC49SDLF | 4MHz | ±50ppm |
| FOXSDLF/221-20 | 福克斯晶振 | HC49SDLF | 22.1184MHz | ±50ppm |
| FOXSDLF/073-20 | 福克斯晶振 | HC49SDLF | 7.3728MHz | ±50ppm |
| FOXSDLF/049-20 | 福克斯晶振 | HC49SDLF | 4.9152MHz | ±50ppm |
| FOXSDLF/250FR-20/TR | 福克斯晶振 | HC49SDLF | 25MHz | ±50ppm |
| FX425B-12.000 | 福克斯晶振 | FX425B | 12MHz | ±50ppm |
| FQ5032B-18.432 | 福克斯晶振 | C5BQ | 18.432MHz | ±30ppm |
| FX252BS-24.000 | 福克斯晶振 | FX252B | 24MHz | ±50ppm |
| FQ7050BR-7.3728 | 福克斯晶振 | C7BQ | 7.3728MHz | ±50ppm |
| FX122-327 | 福克斯晶振 | FX122 | 32.768kHz | - |
| FOXSLF/115-20 | 福克斯晶振 | HC49SLF | 11.0592MHz | ±50ppm |
| FOXSLF/250F-20 | 福克斯晶振 | HC49SLF | 25MHz | ±50ppm |
| FOXSLF/147-20 | 福克斯晶振 | HC49SLF | 14.7456MHz | ±50ppm |
| FOXSLF/073-20 | 福克斯晶振 | HC49SLF | 7.3728MHz | ±50ppm |
| FOXSLF/160-20 | 福克斯晶振 | HC49SLF | 16MHz | ±50ppm |
| FOXSLF/160 | 福克斯晶振 | HC49SLF | 16MHz | ±50ppm |
| FOXSLF/080 | 福克斯晶振 | HC49SLF | 8MHz | ±50ppm |
| FOXSLF/128-20 | 福克斯晶振 | HC49SLF | 12.288MHz | ±50ppm |
| FOXSLF/245F-20 | 福克斯晶振 | HC49SLF | 24.576MHz | ±50ppm |
| FOXSLF/040A | 福克斯晶振 | HC49SLF | 4MHz | ±50ppm |
| FOXSLF/120 | 福克斯晶振 | HC49SLF | 12MHz | ±50ppm |
| FOXSLF/0368-20 | 福克斯晶振 | HC49SLF | 3.6864MHz | ±50ppm |
