X1H024576DK1H-X,HSX531S高精度晶振,加高无源晶振,6G网络设备晶振

频率：24.576MHZ

尺寸：5.00x3.20mm

X1H024576DK1H-X,HSX531S高精度晶振,加高无源晶振,6G网络设备晶振，尺寸5.00x3.20mm，频率24.576MHZ，石英贴片晶振，石英晶体谐振器，四脚贴片晶振，超小型晶振，石英水晶振动子，无线环保晶振，SMD晶振，石英无源晶振，高精度贴片晶振，高性能石英晶振，低损耗无源晶体，低功耗石英晶振，无线应用晶振，智能音响专用晶振，测试测量晶振，小型设备晶振，网络设备专用晶振，便携式设备晶振，智能手机晶振，蓝牙耳机晶振，通信产品专用晶振，具有高精度低损耗的特点.

SMD晶振产品被广泛应用各个领域之中，比较常用领域包含：无线应用，智能音响，测试测量，小型设备，网络设备，便携式设备，智能手机等领域.X1H024576DK1H-X,HSX531S高精度晶振,加高无源晶振,6G网络设备晶振.

订购热线：0755-27838351

X1H024576DK1H-X,HSX531S高精度晶振,加高无源晶振,6G网络设备晶振 参数表

TYPE
ITEM

HSX531S

Frequency Range

24.576 MHz

10 ~ 12 MHz

12 ~ 40 MHz

40 ~ 80 MHz

Mode

Fundamental

3rd Overtone

Frequency Tolerance

±10ppm, ±20ppm, or Specify

Frequency Stability over
Operating Temperature Range

±10ppm, ±15ppm, ±20ppm, or Specify

Operating Temperature

-10 ~ +60 ℃ , or Specify

Load Capacitance

Series, 8pF, 10pF, 12pF, 16pF or Specify

Drive Level

10μW (300μW Max.)

Equivalent Series Resistance

150Ω Max.

80Ω Max.

50Ω Max.

70Ω Max.

Storage Temp. Range

-40 ~ +125℃

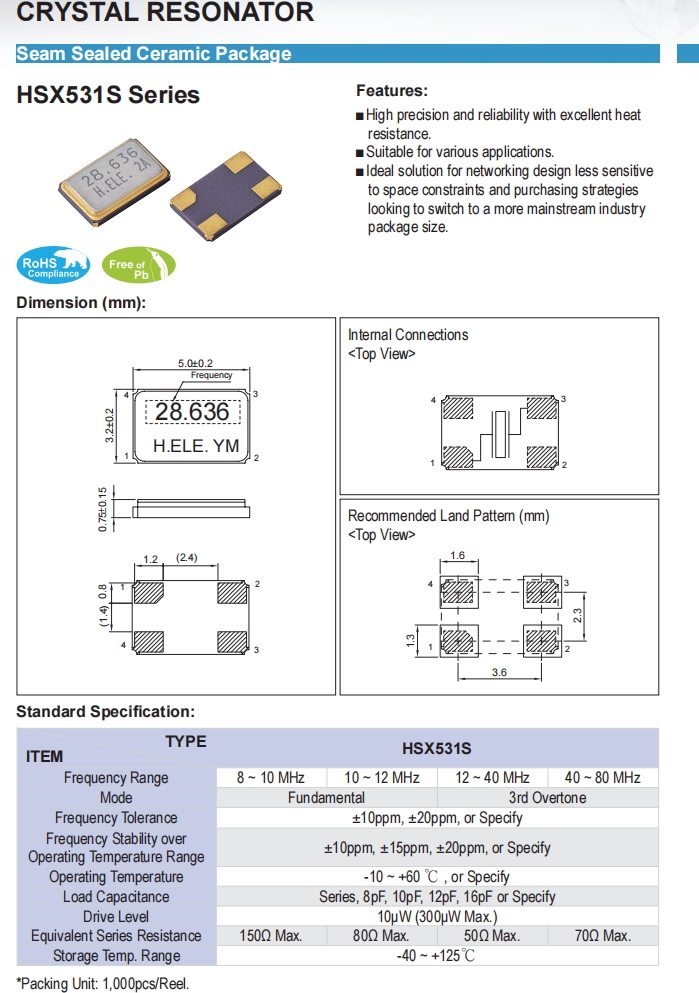

X1H024576DK1H-X,HSX531S高精度晶振,加高无源晶振,6G网络设备晶振 尺寸图

晶振产品特性：

高精度、高可靠性和优异的热性能

适用于各种应用。

网络设计的理想解决方案，灵敏度较低

空间限制和购买策略

希望转向更主流的行业包装尺寸。
