6G网络晶振|ETSB24E000003E|ETSB石英振动子|台湾鸿星晶体

频率：24MHZ

尺寸：1.6x1.2mm

6G网络晶振|ETSB24E000003E|ETSB石英振动子|台湾鸿星晶体，尺寸1.6x1.2mm，频率24MHZ，Hosonic无源晶振，石英贴片晶振，石英晶体谐振器，1612mm小体积晶振，SMD晶体谐振器，无源贴片晶振，石英晶体，SMD晶振，24MHZ无源晶振，石英水晶振动子，绿色环保晶振，轻薄型晶振，高性能晶振，高精度晶振，低功耗晶振，低成本晶振，低损耗晶振，无线模块晶振，可穿戴设备晶振，便携式设备晶振，数码相机晶振，网络设备晶振，具有高精度低功耗的特点。

石英晶体产品被广泛用于各个领域，尤其适合用于可穿戴设备，无线模块，数码相机，便携式设备，娱乐设备，网络设备等领域。6G网络晶振|ETSB24E000003E|ETSB石英振动子|台湾鸿星晶体.

订购热线：0755-27838351

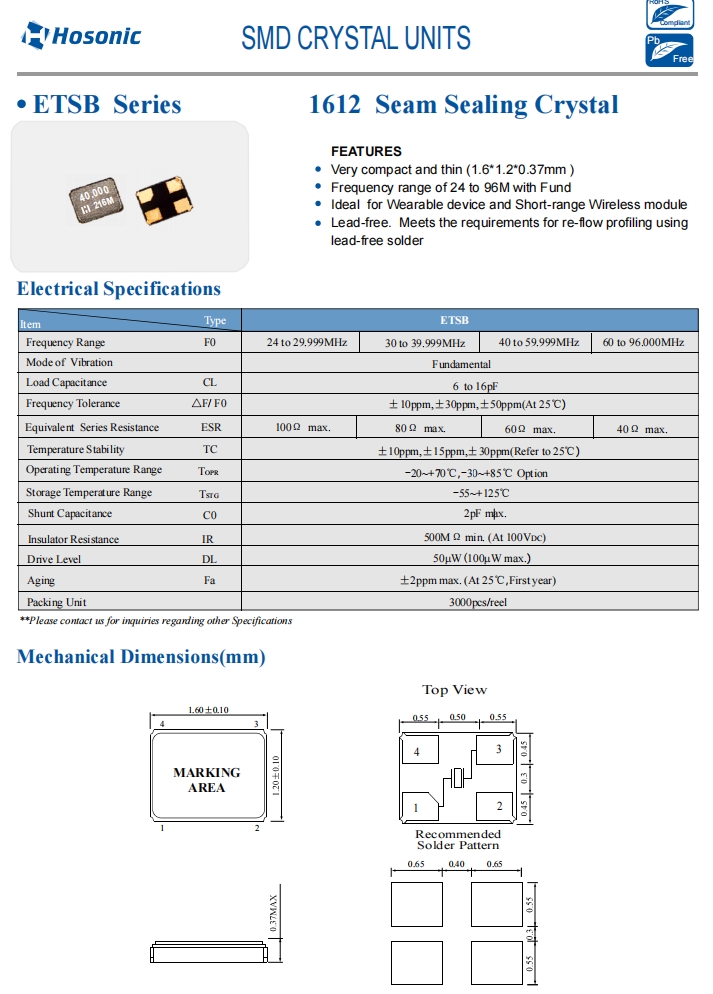

6G网络晶振|ETSB24E000003E|ETSB石英振动子|台湾鸿星晶体 参数表

Item	Type	ETSB
Frequency Range	F0	24 MHz	30 to 39.999MHz	40 to 59.999MHz	60 to 96.000MHz
Mode of Vibration		Fundamental
Load Capacitance	CL	6 to 16pF
Frequency Tolerance	ΔF/ F0	±10ppm, ±30ppm, ±50ppm(At 25℃)
Equivalent Series Resistance	ESR	100Ω max.	80Ω max.	60Ω max.	40Ω max.
Temperature Stability	TC	±10ppm, ±15ppm, ±30ppm(Refer to 25℃)
Operating Temperature Range	TOPR	-20~+70℃,-30~+85℃ Option
Storage Temperature Range	TSTG	-55~+125℃
Shunt Capacitance	C0	2pF max.
Insulator Resistance	IR	500MΩ min. (At 100VDC)
Drive Level	DL	50μW(100μW max.)
Aging	Fa	±2ppm max. (At 25℃,First year)
Packing Unit		3000pcs/reel

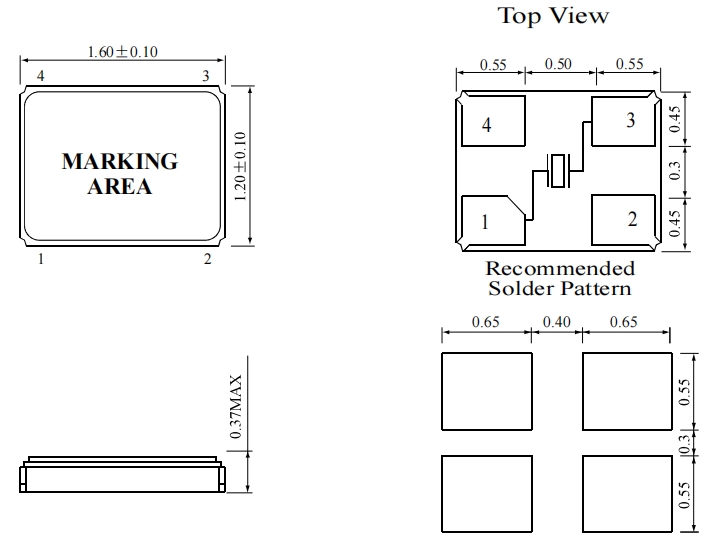

6G网络晶振|ETSB24E000003E|ETSB石英振动子|台湾鸿星晶体 尺寸图

晶振产品特性：

非常紧凑和薄（1.6*1.2*0.37mm）

频率范围为24至96MHZ

理想的可穿戴设备和短程无线模块无铅。

满足使用无铅焊料进行再流分析的要求.

更多相关Hosonic鸿星晶振型号

Mfr Part #	Supplier	Series	Frequency	Frequency Stability稳定度	Frequency Tolerance	Load Capacitance
ETSB37E0X0014E	Hosonic鸿星晶振	ETSB	37.4 MHz	±10ppm	±10ppm	16pF
ETSB38E0X0005E	Hosonic鸿星晶振	ETSB	38.4 MHz	±10ppm	±10ppm	10pF
ETSB24E000003E	Hosonic鸿星晶振	ETSB	24 MHz	±10ppm	±10ppm	8pF
ETSB48E007500ECBB8	Hosonic鸿星晶振	ETSB	48 MHz	±15ppm	±10ppm	10pF
ETSB48E007502E	Hosonic鸿星晶振	ETSB	48 MHz	±15ppm	±10ppm	10pF
ETSB32E000003E	Hosonic鸿星晶振	ETSB	32 MHz	±10ppm	±10ppm	8pF
ETSB60E003700E	Hosonic鸿星晶振	ETSB	60 MHz	±20ppm	±10ppm	9pF
E3FB24E00000KE	Hosonic鸿星晶振	E3FB	24 MHz	±30ppm	±30ppm	12pF
ETSB27E0X0003E	Hosonic鸿星晶振	ETSB	27.12 MHz	±10ppm	±10ppm	10pF
ETSB25E004800E	Hosonic鸿星晶振	ETSB	25 MHz	±15ppm	±10ppm	8pF
ETST00327000JE	Hosonic鸿星晶振	ETST	32.768 kHz	-	±20ppm	12.5pF
E5FA8E000000DE	Hosonic鸿星晶振	E5FA	8MHz	±20ppm		20pF
E3FB26E004203E	Hosonic鸿星晶振	E3FB	26MHz	±10ppm		7.3pF
E49B8E000001AE	Hosonic鸿星晶振	E49B	8MHz	±20ppm		20pF
E49B13E0X000FE10C0	Hosonic鸿星晶振	E49B	13.560MHz	±20ppm		20PF
E49A25E00000XE10C0	Hosonic鸿星晶振	HC-49S	25M	±20ppm		20pF
E49A11E0X000AE10C0	Hosonic鸿星晶振	HC-49S	11.0592M	±20ppm		20PF
E5FA8.00000F20E22	台湾鸿星晶振	E5FA	8MHz	±20ppm		20PF
E49B4E000000VE10C0	Hosonic鸿星晶振	E49B	4MHz	±20ppm		20PF
E5FA8.00000F20E11	Hosonic鸿星晶振	E5FA	8MHz
E49B11E0X000YE10C0	Hosonic鸿星晶振	E49B	11.0592MHz	±20ppm		20pF
E49A8E00000FE10CO	Hosonic鸿星晶振	E49A	8MHz	±20ppm		20pF
E49A16E00000KE10CO	Hosonic鸿星晶振	E49A	16M	±20ppm		20pF
E49A11E0X000JE	Hosonic鸿星晶振	HC-49SA	11.0592MHz	±30ppm		20pF
E49A12E00000ME	Hosonic鸿星晶振	HC-49SA	12MHz	±30ppm		20pF
E49A16E00000ME	Hosonic鸿星晶振	HC-49SA	16MHz	±30ppm		20pF
E49A24E00000HE	Hosonic鸿星晶振	HC-49SA	24MHz	±30ppm		20pF
E49A25E00001AE	Hosonic鸿星晶振	HC-49SA	25MHz	±30ppm		20pF
E49A25E000033E	Hosonic鸿星晶振	E49A	20pF	±30ppm		20pF
E49A4E000000JE	Hosonic鸿星晶振	HC-49SA	4MHz	±30ppm		20pF
E49A7E00X0007E	Hosonic鸿星晶振	HC-49SA	7.3728MHz	±30ppm		20pF
E49A8E000001CE	Hosonic鸿星晶振	E49A				10pF
E49B10E00000TE	Hosonic鸿星晶振	E49B				10pF
E49B4E00X000ZE	Hosonic鸿星晶振	E49B				10pF
E49B8E00X000CE	Hosonic鸿星晶振	E49B				10pF
E49B9E00X0009E	Hosonic鸿星晶振	ESB	9.84375MHz	±30ppm		10pF
ESA10.0000F30C35F	Hosonic鸿星晶振	HC-49SA	10MHz	±30ppm		10pF
ESA12.0000F20B35F	Hosonic鸿星晶振	HC-49SA	12MHz	±30ppm		20pF
ESA12.0000F20E33F	Hosonic鸿星晶振	HC-49SA	12MHz	±30ppm		20pF
ESA12.0000F30D35F	Hosonic鸿星晶振	HC-49SA	12MHz	±30ppm		30pF
ESA12.000F30D55F	Hosonic鸿星晶振	HC-49SA	12MHz	±30ppm		30pF
ESA14.7456F20E33F	Hosonic鸿星晶振	HC-49SA	14.7456MHz	±30ppm		20pF
ESA16.0000F30M55F	Hosonic鸿星晶振	HC-49SA	16MHz	±30ppm		30pF
ESA18.4320F20E33F	Hosonic鸿星晶振	HC-49SA	18.432MHz	±30ppm		20pF
ESA20.0000F18M33F	Hosonic鸿星晶振	HC-49SA	20MHz	±50ppm		18pF
ESA20.0000F20E33F	Hosonic鸿星晶振	HC-49SA	20MHz	±30ppm		20pF
ESA20.0000F30M55F	Hosonic鸿星晶振	HC-49SA	20MHz	±30ppm		18pF
ESA3.68640F20E33F	Hosonic鸿星晶振	HC-49SA	3.6864MHz	±30ppm		20pF
ESA8.00000F20E33F	Hosonic鸿星晶振	HC-49SA	8MHz	±30ppm		20pF
