ECS-RTC-3225-5699C3是一款小型I2C总线接口实时时钟晶振

ECS晶振ECS-RTC-3225-5699C3是一款小型I2C总线接口实时时钟(RTC ),内置32.768kHz TCXO温补晶振，稳定度为3ppm。精确的温度传感器和温度补偿电路确保时钟精度。RTC支持日历、时钟、VBAT和定时器功能。ECS-RTC-3225-5699C3采用3.2mmx2.5mmx1.0mm封装，适合稳定性至关重要的便携式电池供电小型电子设备。

原厂代码	品牌	型号	频率	工作温度
ECS-VXO-73-32.768-TR	ECS晶振	ECS-VXO-73	32.768MHz	-10°C ~ 70°C
ECS-VXO-73-32.768-TR	ECS Crystal	ECS-VXO-73	32.768MHz	-10°C ~ 70°C
ECS-VXO-73-32.768-TR	ECS Crystal	ECS-VXO-73	32.768MHz	-10°C ~ 70°C
ECS-327KE-TR	ECS Crystal	ECS-327KE	32.768kHz	-40°C ~ 85°C
ECS-327KE-TR	ECS Crystal	ECS-327KE	32.768kHz	-40°C ~ 85°C
ECS-327KE-TR	ECS Crystal	ECS-327KE	32.768kHz	-40°C ~ 85°C
ECS-327SMO-TR	ECS Crystal	ECS-327SMO	32.768kHz	-40°C ~ 85°C
ECS-327SMO-TR	ECS Crystal	ECS-327SMO	32.768kHz	-40°C ~ 85°C
ECS-327SMO-TR	ECS Crystal	ECS-327SMO	32.768kHz	-40°C ~ 85°C
ECS-8FMX-327.6-TR	ECS Crystal	ECS-8FX	32.768MHz	-40°C ~ 85°C
ECX-H25BN-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-40°C ~ 85°C
ECX-H25CM-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-20°C ~ 70°C
ECX-H35BN-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-40°C ~ 85°C
ECX-H35CM-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-20°C ~ 70°C
ECX-H23CM-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-20°C ~ 70°C
ECX-H27BN-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-40°C ~ 85°C
ECX-H27CM-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-20°C ~ 70°C
ECX-H37BN-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-40°C ~ 85°C
ECX-H37CM-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-20°C ~ 70°C
ECX-H33BN-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-40°C ~ 85°C
ECX-H33CM-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-20°C ~ 70°C
ECX-H22BN-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-40°C ~ 85°C
ECX-H22CM-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-20°C ~ 70°C
ECX-H32BN-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-40°C ~ 85°C
ECX-H32CM-32.768	ECS Crystal	ECSpressCON™ ECX-H	32.768MHz	-20°C ~ 70°C
ECS-327KO-TR	ECS Crystal	ECS-327KO	时钟晶振	-40°C ~ 85°C
ECS-327KO-TR	ECS Crystal	ECS-327KO	32.768kHz	-40°C ~ 85°C
ECS-327KO-TR	ECS Crystal	ECS-327KO	32.768kHz	-40°C ~ 85°C

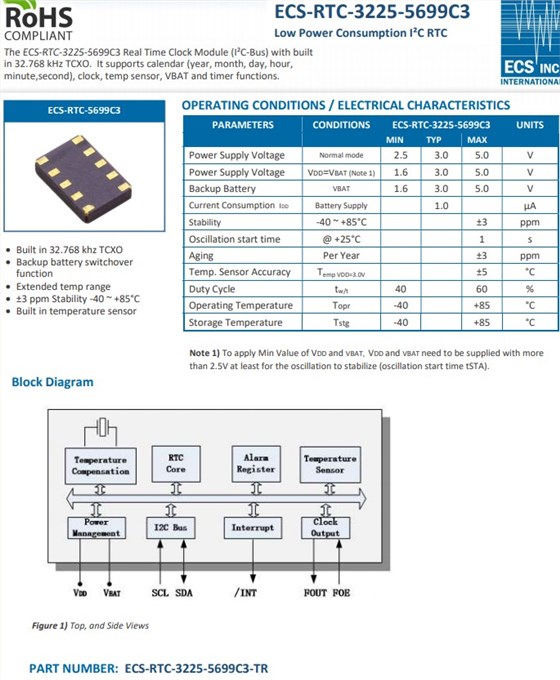

ECS-RTC-3225-5699C3是一款小型I2C总线接口实时时钟

特点:
小体积尺寸：3.2 x 2.5 x 1.0毫米
内置32.768kHz晶振 TCXO
-40°C至+85°C时的稳定性为3 ppm
低功耗:1.0 uA(典型值。)
电源电压:2.5V ~ 5.0V
自动备用电源切换功能
提供扩展的温度范围
频率范围:2.5V ~ 5.0V
温度补偿频率输出
应用：计算机，服务器，嵌入式系统，物联网，超低功耗，数字时钟
