解析FA-238晶振在蓝牙耳机品牌石英晶振编码Q22FA2380194200
市场蓝牙品牌晶振供需平稳石英晶振仍占据主流应用市场根据市场分析机构的预测,全球石英组件市场的需求量自2014至2022年的复合成长率约为7.8%.在爱普生晶体石英晶体振荡器部分,今年的市场虽略显供大于求,但总体上产品的价格变化不大,基本保持稳中有降的态势应用需求呈多样化.
蓝牙耳机FA-238晶振,石英晶振编码Q22FA2380194200
2022年的市场虽略显供大于求,但总体上产品的价格变化不大,基本保持稳中有降的态势,市场竞争集中体现在低频晶振产品线上.长期以来欧美日系日本晶振厂商凭借在石英频率组件产业起步较早、基础深厚的优势,在市场上具有较高的知名度,并在高端产品线拥有较高的市占率,但随着近年来中国大陆及台湾地区石英晶体振荡器厂商的崛起,使得不同行业蓝牙这一市场的格局更为多元化
爱普生晶振编码
长x宽x高
型号
石英晶振频率
负载
频率25°C
频率公差
工作温度范围
ESR最大
驱动电平
Q22FA2380191900
3.2x2.5x0.7mm
FA-238
26.000000MHz
10pF
+/-15ppm
+/-30ppm
-40to+105°C
≤50Ω
≤200µW
Q22FA2380192000
3.2x2.5x0.7mm
FA-238
19.200000MHz
12pF
+/-30ppm
+/-30ppm
-40to+105°C
≤80Ω
≤200µW
Q22FA2380192100
3.2x2.5x0.7mm
FA-238
20.000000MHz
10pF
+/-30ppm
+/-30ppm
-40to+105°C
≤60Ω
≤200µW
Q22FA2380192300
3.2x2.5x0.7mm
FA-238
24.000000MHz
18pF
+/-50ppm
+/-30ppm
-40to+85°C
≤60Ω
≤200µW
Q22FA2380192500
3.2x2.5x0.7mm
FA-238
25.000000MHz
9pF
+/-15ppm
+/-30ppm
-20to+70°C
≤50Ω
≤200µW
Q22FA2380192600
3.2x2.5x0.7mm
FA-238
27.000000MHz
12pF
+/-20ppm
+/-30ppm
-40to+105°C
≤50Ω
≤200µW
Q22FA2380193200
3.2x2.5x0.7mm
FA-238
24.576000MHz
18pF
+/-50ppm
+/-30ppm
-40to+85°C
≤60Ω
≤200µW
Q22FA2380193600
3.2x2.5x0.7mm
FA-238
52.000000MHz
8pF
+/-25ppm
+/-30ppm
-40to+105°C
≤40Ω
≤200µW
Q22FA2380193700
3.2x2.5x0.7mm
FA-238
28.224000MHz
12pF
+/-20ppm
+/-30ppm
-20to+70°C
≤50Ω
≤200µW
Q22FA2380193900
3.2x2.5x0.7mm
FA-238
16.588800MHz
7pF
+/-50ppm
+/-50ppm
-30to+85°C
≤80Ω
≤200µW

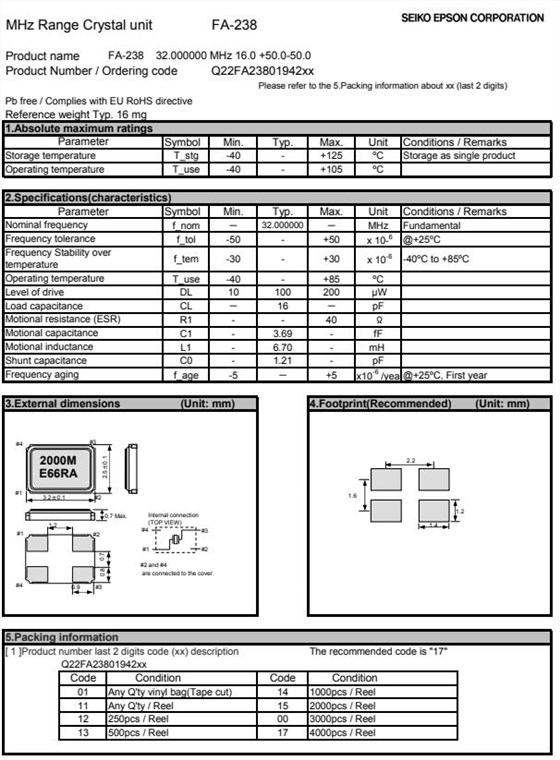

Q22FA2380194200
3.2x2.5x0.7mm
FA-238
32.000000MHz
16pF
+/-50ppm
+/-30ppm
-40to+85°C
≤40Ω
≤200µW
Q22FA23V0001200
3.2x2.5x0.7mm
FA-238V
13.560000MHz
12pF
+/-50ppm
+/-30ppm
-40to+80°C
≤80Ω
≤200µW
Q22FA23V0001800
3.2x2.5x0.7mm
FA-238V
12.288000MHz
12pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
≤200µW
Q22FA23V0002200
3.2x2.5x0.7mm
FA-238V
12.000000MHz
10pF
+/-30ppm
+/-30ppm
-20to+70°C
≤100Ω
≤200µW
Q22FA23V0002600
3.2x2.5x0.7mm
FA-238V
13.000000MHz
10pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
≤200µW
Q22FA23V0002700
3.2x2.5x0.7mm
FA-238V
14.745600MHz
20pF
+/-50ppm
+/-30ppm
-20to+70°C
≤80Ω
≤200µW
Q22FA23V0002800
3.2x2.5x0.7mm
FA-238V
12.000000MHz
15pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
≤200µW
Q22FA23V0002900
3.2x2.5x0.7mm
FA-238V
13.000000MHz
20pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
≤200µW
Q22FA23V0003000
3.2x2.5x0.7mm
FA-238V
13.000000MHz
20pF
+/-30ppm
+/-50ppm
-20to+60°C
≤100Ω
≤200µW
Q22FA23V0003300
3.2x2.5x0.7mm
FA-238V
12.288000MHz
12pF
+/-30ppm
+/-30ppm
-20to+70°C
≤100Ω
≤200µW
Q22FA23V0003700
3.2x2.5x0.7mm
FA-238V
14.318180MHz
20pF
+/-50ppm
+/-30ppm
-20to+70°C
≤80Ω
≤200µW
Q22FA23V0004400
3.2x2.5x0.7mm
FA-238V
12.000000MHz
20pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
≤200µW
Q22FA23V0004800
3.2x2.5x0.7mm
FA-238V
13.000000MHz
7pF
+/-50ppm
+/-30ppm
-20to+70°C
≤100Ω
≤200µW
Q22FA23V0005200
3.2x2.5x0.7mm
FA-238V
13.560000MHz
10pF
+/-50ppm
+/-30ppm
-20to+70°C
≤80Ω
≤200µW
Q22FA23V0006800
3.2x2.5x0.7mm
FA-238V
14.318000MHz
12pF
+/-50ppm
+/-30ppm
-20to+70°C
≤80Ω
≤200µW
蓝牙耳机FA-238晶振,石英晶振编码Q22FA2380194200
