仪器设备专用LV-PECL晶振SG5032EAN爱普生差分晶振X1G004271000100
晶振封装尺寸和外形基于晶体振荡器类型和规格,对晶振封装的要求将大相径庭.简单的时钟振荡器和一些TCXO可以装在小到1.2×2.5mm的封装中；而一些OCXO可以大到50×50mm,爱普生晶振对某些特定设计甚至可更大.虽然一些通孔封装如双列直插式4或14引脚类型仍然用于较大的部件(如恒温晶振OCXO或专用温补晶振TCXO),但大多数当前设计使用表贴封装.这些表贴配置可以是密封的陶瓷封装,
SG5032EAN爱普生差分晶振X1G004271000100,仪器设备专用LV-PECL晶振
| 爱普生有源晶振编码 | 型号 | 频率 | 长X宽X高 | 输出波 | 电源电压 | 工作温度 | 频差 |
| X1G004261006900 | SG5032VAN | 150.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -20to70°C | +/-20ppm |
| X1G004261007100 | SG5032VAN | 156.250000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -20to70°C | +/-20ppm |
| X1G004261010200 | SG5032VAN | 250.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261010700 | SG5032VAN | 153.600000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261011400 | SG5032VAN | 78.125000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261011900 | SG5032VAN | 120.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012100 | SG5032VAN | 644.531250MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012500 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012600 | SG5032VAN | 133.333300MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012800 | SG5032VAN | 250.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261012900 | SG5032VAN | 135.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261013100 | SG5032VAN | 322.265625MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261013300 | SG5032VAN | 230.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004261013500 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261013600 | SG5032VAN | 644.531250MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261013800 | SG5032VAN | 148.351600MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -20to70°C | +/-20ppm |
| X1G004261014100 | SG5032VAN | 161.132812MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004261014300 | SG5032VAN | 625.000000MHz | 5.00x3.20x1.20mm | LVDS | 2.250to3.630V | -40to85°C | +/-30ppm |

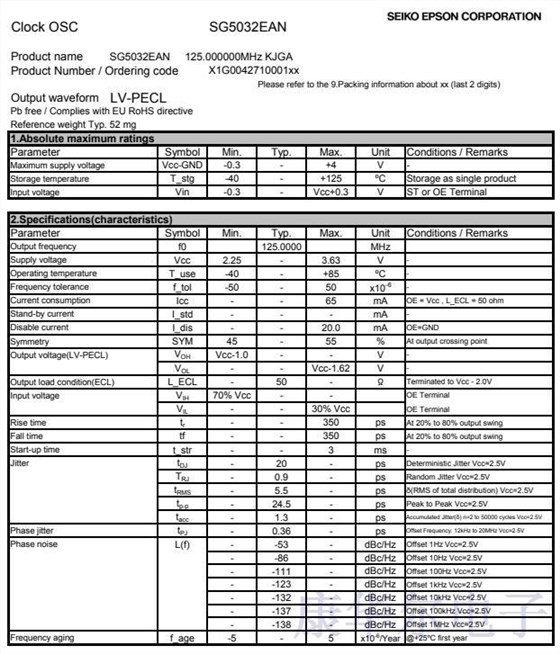

| X1G004271000100 | SG5032EAN | 125.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271000400 | SG5032EAN | 100.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271001200 | SG5032EAN | 150.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271001300 | SG5032EAN | 155.520000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271001400 | SG5032EAN | 156.250000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-50ppm |
| X1G004271002000 | SG5032EAN | 125.000000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-30ppm |
| X1G004271003300 | SG5032EAN | 156.250000MHz | 5.00x3.20x1.20mm | LV-PECL | 2.250to3.630V | -40to85°C | +/-30ppm |
SG5032EAN爱普生差分晶振X1G004271000100,仪器设备专用LV-PECL晶振
