AS-20.000-18-F-SMD-TR|AS-SMD无源晶体|6G蓝牙晶振|美国卢柏晶振,尺寸13.5x4.7mm,频率20MHZ,Rubyquartz贴片晶体,20MHZ无源晶振,无源晶体,石英晶体,石英贴片晶振,大尺寸晶振,SMD无源晶体,石英晶体谐振器,无铅环保晶振,高性能晶振,高品质晶振,低功耗晶振,6G蓝牙晶振,电影音系统专用晶振,电视机机顶盒晶振,网络设备晶振,无线应用晶振,蓝牙音箱晶振,游戏机专用晶振,具有高品质低功耗的特点。
石英贴片晶振产品非常适合用于6G蓝牙,电影音系统,电视机机顶盒,网络设备,无线应用,蓝牙音箱,儿童游戏机等领域.AS-20.000-18-F-SMD-TR|AS-SMD无源晶体|6G蓝牙晶振|美国卢柏晶振.AS-20.000-18-F-SMD-TR|AS-SMD无源晶体|6G蓝牙晶振|美国卢柏晶振参数图

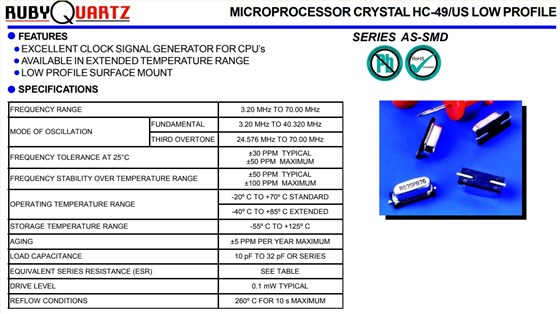

FREQUENCY RANGE
20.00 MHz
MODE OF OSCILLATION
FUNDAMENTAL
3.20 MHz TO 40.320 MHz
THIRD OVERTONE
24.576 MHz TO 70.00 MHz
FREQUENCY TOLERANCE AT 25°C
±30 PPMTYPICAL
±50 PPMMAXIMUM
FREQUENCY STABILITY OVER TEMPERATURE RANGE
±50 PPMTYPICAL
±100 PPMMAXIMUM
OPERATING TEMPERATURE RANGE
-20º C TO +70º C STANDARD
-40º C TO +85º C EXTENDED
STORAGE TEMPERATURE RANGE
-55º C TO +125º C
AGING
±5 PPM PER YEAR MAXIMUM
LOAD CAPACITANCE
10 pF TO 32 pF OR SERIES
EQUIVALENT SERIES RESISTANCE (ESR)
SEE TABLE
DRIVE LEVEL
0.1 mW TYPICAL
REFLOW CONDITIONS
260º C FOR 10 s MAXIMUM
AS-20.000-18-F-SMD-TR|AS-SMD无源晶体|6G蓝牙晶振|美国卢柏晶振尺寸图
晶振产品特性:
卓越的CPU时钟信号发生器
可在扩展的温度范围内使用
薄型表面安装
更多相关美国Rubyquartz卢柏晶振型号,请咨询我们!
