X1M0003210000,XG-2103CA可视化设备晶振,爱普生有源晶振

X1M0003210000,XG-2103CA可视化设备晶振,爱普生有源晶振X1M0003210000,XG-2103CA可视化设备晶振,爱普生有源晶振

产品简介

X1M0003210000,XG-2103CA可视化设备晶振,爱普生有源晶振，尺寸7.0×5.0mm，频率150MHZ，EPSON晶体振荡器，日本进口晶振，六脚有源晶振，7050mm有源晶振，有源贴片晶振，有源石英振荡器，有源晶体振荡器，石英晶体振荡器，时钟振荡器，150MHZ有源晶振，高性能有源晶振，高品质有源晶振，可视化设备有源晶振，智能家居有源晶振，医疗设备有源晶振，物联网有源晶振，室外基站有源晶振，测试设备有源晶振，低损耗有源晶振，低抖动有源晶振，低相位有源振荡器，低相噪有源晶振，低电压有源振荡器，低功耗有源晶振，低相噪有源晶振，具有高品质低相位的特点.

差分晶振产品比较常用于可视化设备，智能家居，医疗设备，物联网，室外基站，测试设备等领域。X1M0003210000,XG-2103CA可视化设备晶振,爱普生有源晶振.

产品详情

1

X1M0003210000,XG-2103CA可视化设备晶振,爱普生有源晶振，尺寸7.0×5.0mm，频率150MHZ，EPSON晶体振荡器，日本进口晶振，六脚有源晶振，7050mm有源晶振，有源贴片晶振，有源石英振荡器，有源晶体振荡器，石英晶体振荡器，时钟振荡器，150MHZ有源晶振，高性能有源晶振，高品质有源晶振，可视化设备有源晶振，智能家居有源晶振，医疗设备有源晶振，物联网有源晶振，室外基站有源晶振，测试设备有源晶振，低损耗有源晶振，低抖动有源晶振，低相位有源振荡器，低相噪有源晶振，低电压有源振荡器，低功耗有源晶振，低相噪有源晶振，具有高品质低相位的特点.

差分晶振产品比较常用于可视化设备，智能家居，医疗设备，物联网，室外基站，测试设备等领域。X1M0003210000,XG-2103CA可视化设备晶振,爱普生有源晶振.2

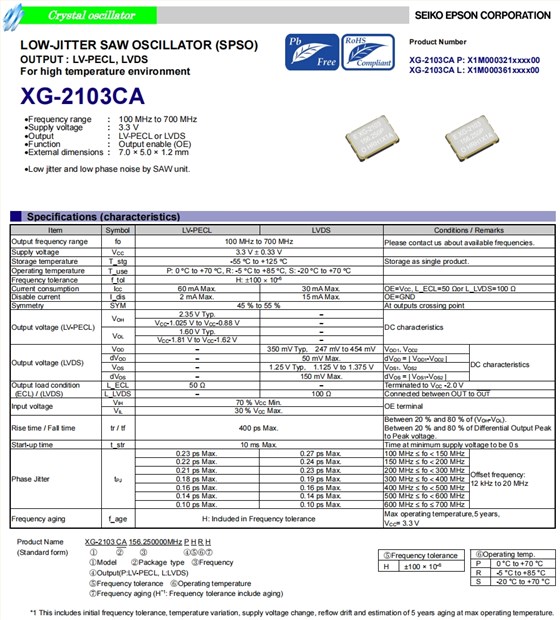

X1M0003210000,XG-2103CA可视化设备晶振,爱普生有源晶振参数表

Specifications (characteristics)
Item Symbol LV-PECL LVDS Conditions / Remarks
Output frequency range fo 150 MHz Please contact us about available frequencies.
Supply voltage VCC 3.3 V±0.33 V
Storage temperature T_stg -55°C to +125°C Storage as single product.
Operating temperature T_use P: 0°C to +70°C, R: -5°C to +85°C , S: -20°C to +70°C
Frequency tolerance f_tol H:±100×10-6
Current consumption ICC 60 mA Max. 30 mA Max. OE=VCC, L_ECL=50 Ωor L_LVDS=100 Ω
Disable current I_dis 2 mA Max. 15 mA Max. OE=GND
Symmetry SYM 45 % to 55 % At outputs crossing point
Output voltage (LV-PECL) VOH 2.35 V Typ. − DC characteristics
VCC- 1.025 V to VCC-0.88 V −
VOL 1.60 V Typ. −
VCC- 1.81 V to VCC- 1.62 V −
Output voltage (LVDS) VOD − 350 mV Typ,247 mV to 454 mV VOD1 , VOD2 DC characteristics
dVOD − 50 mV Max. dVOD=|VOD1-VOD2|
VOS − 1.25 V Typ,1.125 V to 1.375 V VOS1 , VOS2
dVOS − 150 mV Max. dVOS=|VOS1-VOS2|
Output load condition
(ECL) / (LVDS) 		L_ECL 50 Ω − Terminated to VCC-2.0 V
L_LVDS − 100 Ω Connected between OUT to OUT
Input voltage VIH 70 % VCCMin. OE terminal
VIL 30 % VCCMax.
Rise time / Fall time tr / tf 400 ps Max. Between 20 % and 80 % of (VOH-VOL).
Between 20 % and 80 % of Differential Output Peak
to Peak voltage.
Start-up time t_str 10 ms Max. Time at minimum supply voltage to be 0 s
Phase Jitter tPJ 0.23 ps Max. 0.27 ps Max. 100 MHz≤fo<150 MHz Offset frequency:
12 kHz to 20 MHz
0.22 ps Max. 0.24 ps Max. 150 MHz≤fo<200 MHz
0.21 ps Max. 0.23 ps Max. 200 MHz≤fo<300 MHz
0.18 ps Max. 0.19 ps Max. 300 MHz≤fo<400 MHz
0.16 ps Max. 0.16 ps Max. 400 MHz≤fo<500 MHz
0.14 ps Max. 0.14 ps Max. 500 MHz≤fo<600 MHz
0.10 ps Max. 0.10 ps Max. 600 MHz≤fo≤700 MHz
Frequency aging f_age H: Included in Frequency tolerance Max operating temperature,5 years,
VCC= 3.3 V
3

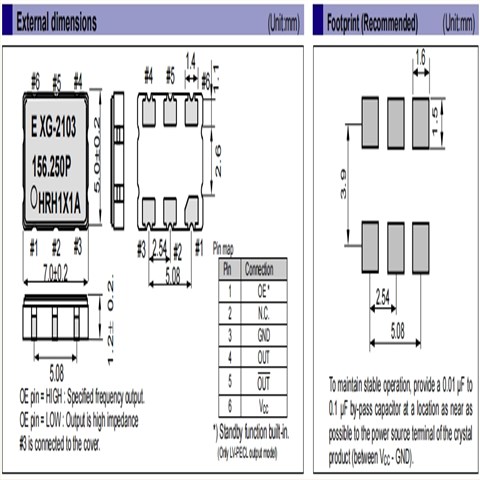

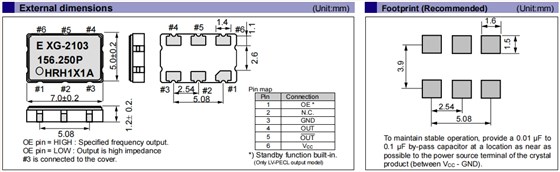

X1M0003210000,XG-2103CA可视化设备晶振,爱普生有源晶振 尺寸图

XG-2103CA

X1M0003210000,XG-2103CA可视化设备晶振,爱普生有源晶振

产品特性：

频率范围：100MHz至700MHz

电源电压：3.3 V

输出：LV-PECL或LVDS

功能：输出启用（OE）

外形尺寸：7.0×5.0×1.2mm

XG-2103CA 1


编码 品牌 型号 频率 尺寸 输出方式 电源电压 工作温度
X1M0003010002 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010003 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010004 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010006 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010007 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010008 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010009 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010010 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010011 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010012 爱普生晶振 XG-2102CA 133.330000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010013 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010014 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010015 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010016 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010017 爱普生晶振 XG-2102CA 133.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010019 爱普生晶振 XG-2102CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010020 爱普生晶振 XG-2102CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010021 爱普生晶振 XG-2102CA 106.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010022 爱普生晶振 XG-2102CA 250.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010023 爱普生晶振 XG-2102CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010025 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010026 爱普生晶振 XG-2102CA 245.760000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010027 爱普生晶振 XG-2102CA 250.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010029 爱普生晶振 XG-2102CA 156.257812 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010030 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0003010031 爱普生晶振 XG-2102CA 148.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010032 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010033 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010035 爱普生晶振 XG-2102CA 199.860000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010036 爱普生晶振 XG-2102CA 200.140000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010037 爱普生晶振 XG-2102CA 216.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0003010039 爱普生晶振 XG-2102CA 263.157900 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010040 爱普生晶振 XG-2102CA 622.080000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010041 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010042 爱普生晶振 XG-2102CA 103.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010043 爱普生晶振 XG-2102CA 105.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010044 爱普生晶振 XG-2102CA 161.132800 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010045 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010046 爱普生晶振 XG-2102CA 644.531250 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010047 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0003010048 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0003010049 爱普生晶振 XG-2102CA 156.255000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010050 爱普生晶振 XG-2102CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010051 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010052 爱普生晶振 XG-2102CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010053 爱普生晶振 XG-2102CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003110002 爱普生晶振 XG-2121CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110003 爱普生晶振 XG-2121CA 133.330000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110004 爱普生晶振 XG-2121CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110005 爱普生晶振 XG-2121CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110006 爱普生晶振 XG-2121CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110007 爱普生晶振 XG-2121CA 133.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110008 爱普生晶振 XG-2121CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110009 爱普生晶振 XG-2121CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110010 爱普生晶振 XG-2121CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110011 爱普生晶振 XG-2121CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110012 爱普生晶振 XG-2121CA 250.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110013 爱普生晶振 XG-2121CA 500.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110014 爱普生晶振 XG-2121CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110015 爱普生晶振 XG-2121CA 106.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110016 爱普生晶振 XG-2121CA 127.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110017 爱普生晶振 XG-2121CA 136.718750 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110018 爱普生晶振 XG-2121CA 98.304000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110020 爱普生晶振 XG-2121CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm 差分晶体振荡器 2.375 to 2.625 V -20 to 70 °C
X1M0003110021 爱普生晶振 XG-2121CA 625.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110022 爱普生晶振 XG-2121CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110023 爱普生晶振 XG-2121CA 322.265625 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110024 爱普生晶振 XG-2121CA 161.132800 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V -5 to 85 °C
X1M0003110025 爱普生晶振 XG-2121CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110026 爱普生晶振 XG-2121CA 135.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110027 爱普生晶振 XG-2121CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110028 爱普生晶振 XG-2121CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110029 爱普生晶振 XG-2121CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110030 爱普生晶振 XG-2121CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110031 爱普生晶振 XG-2121CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110032 爱普生晶振 XG-2121CA 250.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003110033 爱普生晶振 XG-2121CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.375 to 2.625 V 0 to 70 °C
X1M0003210000 爱普生晶振 XG-2103CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003210001 爱普生晶振 XG-2103CA 132.812500 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
6
