XPC736174.703000I,Renesas智能家居晶振,GPS定位器晶振，美国进口晶振，Renesas瑞萨电子晶振，XP系列晶振，编码为：XPC736174.703000I，频率为：174.703MHz，小体积晶振尺寸：7.0x5.0x1.7mm，CML输出差分晶振，8垫脚贴片晶振，石英晶振，有源晶振，贴片石英晶振，石英晶体振荡器，差分晶体振荡器，电源电压3.3V，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，超低相位噪声，低抖动，低功耗，低电源电压，低损耗，低耗能，低电平等特点。应用于：通讯设备，物联网，无线蓝牙，汽车电子，网络，以太网，光纤通道，智能家居，测量仪器，医疗设备，安防设备等应用。

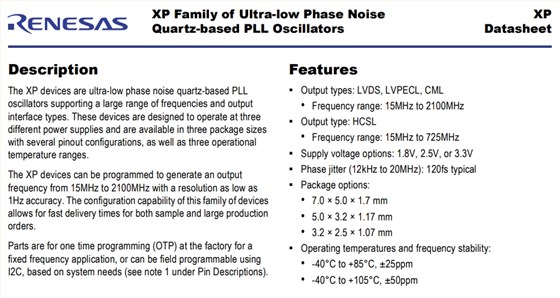

RenesasXP设备是超低相位噪声的基于石英的PLL振荡器，支持大范围的频率和输出接口类型。这些设备被设计为操作在三种不同的电源供应，并可在三种包装尺寸与几种针形配置，以及三种操作温度范围。XP设备可以通过编程产生从15MHz到2100MHz的输出频率，分辨率低至1Hz的精度。该系列设备的配置能力允许样品和大型生产订单的快速交付时间。
XPC736174.703000I,Renesas智能家居晶振,GPS定位器晶振,参数表
| Parameter | TestCondition | Minimum | Typical | Maximum | Units | |
| OutputFrequencyRange | LVDS,LVPECL,CML. |
|
174.703 |
|
MHz | |
| HCSL. | 15 | — | 725 | |||
| Frequency Stability | Temperature=-40°Cto+85°C. | — | — | ±25 | ppm | |
| Temperature=-40°Cto+105°C. | — | — | ±50 | ppm | ||
| Frequency Tolerance (25°C) | Temperature=25°C. | -15 | ±10 | -15 | ppm | |
| Aging(1styear) | TA=25°C. | — | — | ±3 | ppm | |
| Aging(10years) | TA=25°C. | — | — | ±10 | ppm | |
| Output Load | LVDS. | Differential. | — | 100 | — | Ω |
| LVPECL. | VDD-2.0V. | — | 50 | — | ||
| HCSL. | ToGND. | — | 50 | — | ||
| Start-up Time | Output valid time after VDD meets minimum specified level. | — | 5 | — | ms | |
| OutputRiseTime | LVDS. |
20% – 80%, 156.25MHz |
— | 299 | 400 | ps |
| LVPECL. | — | 287 | 400 | |||
| HCSL. | — | 306 | 400 | |||
| CML | — | 301 | 400 | |||
| OutputFallTime | LVDS. |
20% – 80%, 156.25MHz |
— | 279 | 400 | ps |
| LVPECL. | — | 274 | 400 | |||
| HCSL. | — | 284 | 400 | |||
| CML | — | 279 | 400 | |||
| OutputClockDutyCycle | LVDS. | 156.25MHz | 48 | — | 52 | % |
| LVPECL. | 156.25MHz | 48 | — | 52 | ||
| HCSL. | 156.25MHz | 48 | — | 52 | ||
| CML | 156.25MHz | 48 | — | 52 | ||
| OutputEnable/DisableTime | — | — | — | 1 | — |
ms |
XPC736174.703000I,Renesas智能家居晶振,GPS定位器晶振,尺寸图
XPC736174.703000I,Renesas智能家居晶振,GPS定位器晶振
产品特性：
输出类型：LVDS、LVPECL、CML
频率范围：15MHz至2100MHZ
输出类型：HCSL 差分晶振
频率范围：15MHz至725MHz
电源电压选项：1.8V、2.5V或3.3V
相位抖动（12kHz至20MHz）：典型值为120fs
程序包选项：7.0×5.0×1.7mm，5.0×3.2×1.17mm，3.2×2.5×1.07mm
工作温度和频率稳定性：
-40°C至+85°C，±25ppm
-40°C至+105°C，±50ppm
| 美国进口晶振 | 品牌 | 描述 | 系列 | 频率 | 输出 | 电压 |
| XPC736156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XPC | 156.25 MHz | CML | 3.3V |
| XPC736174.703000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPC | 174.703 MHz | CML | 3.3V |
| XPC316800.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 800 MHz | CML | 1.8V |
| XPC336212.500000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 212.5 MHz | CML | 3.3V |
| XPC536020.000000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPC | 20 MHz | CML | 3.3V |
| XPC736174.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPC | 174 MHz | CML | 3.3V |
| XPC736625.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPC | 625 MHz | CML | 3.3V |
| XPN336078.125000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPN | 78.125 MHz | HCSL | 3.3V |
| XPC316156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 156.25 MHz | CML | 1.8V |
| XPN326312.500000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPN | 312.5 MHz | HCSL | 2.5V |
| XPC736100.000000I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPC | 100 MHz | CML | 3.3V |
| XPN336025.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPN | 25 MHz | HCSL | 3.3V |
| XPN336100.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPN | 100 MHz | HCSL | 3.3V |
| XPN336156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPN | 156.25 MHz | HCSL | 3.3V |
| XPN316161.132812I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPN | 161.132812 MHz | HCSL | 1.8V |
| XPN536156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPN | 156.25 MHz | HCSL | 3.3V |
| XPN316100.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPN | 100 MHz | HCSL | 1.8V |
| XPC336156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 156.25 MHz | CML | 3.3V |
| XPN716156.253906I | Renesas晶振 | CLCC 7.00X5.00X1.70 MM, 2.54MM P | XPN | 156.253906 MHz | HCSL | 1.8V |
| XPC536156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPC | 156.25 MHz | CML | 3.3V |
| XPN326156.250000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPN | 156.25 MHz | HCSL | 2.5V |
| XPN736156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ HCSL SMD | XPN | 156.25 MHz | HCSL | 3.3V |
| XPN736100.000000I | Renesas晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | XPN | 100 MHz | HCSL | 3.3V |
| XPN536100.000000I | SMD晶振 | XTAL OSC XO 100.0000MHZ HCSL SMD | XPN | 100 MHz | HCSL | 3.3V |
| XPC735G11.328120K | Renesas晶振 | XTAL OSC XO 1.61132812 GHZ CML | XPC | 1.61132812 GHz | CML | 3.3V |
| XPC725100.000000K | Renesas晶振 | XTAL OSC XO 100.0000MHZ CML SMD | XPC | 100 MHz | CML | 2.5V |
| XPC336625.000000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 625 MHz | CML | 3.3V |
| XPC526156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPC | 156.25 MHz | CML | 2.5V |
| XPC316999.990000I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 999.99 MHz | CML | 1.8V |
| XPC516156.250000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPC | 156.25 MHz | CML | 1.8V |
| XPC536040.000000I | Renesas晶振 | CLCC 5.00X3.20X1.10 MM, 1.27MM P | XPC | 40 MHz | CML | 3.3V |
| XPC336950.000000I | Renesas晶振 | XTAL OSC XO 950.0000MHZ CML SMD | XPC | 950 MHz | CML | 3.3V |
| XPN336161.132812I | Renesas晶振 | XTAL OSC XO 161.132812MHZ HCSL | XPN | 161.132812 MHz | HCSL | 3.3V |
| XPN336312.500000I | Renesas晶振 | XTAL OSC XO 312.5000MHZ HCSL SMD | XPN | 312.5 MHz | HCSL | 3.3V |
| XPC735156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XPC | 156.25 MHz | CML | 3.3V |
| XPC716156.250000I | Renesas晶振 | XTAL OSC XO 156.2500MHZ CML SMD | XPC | 156.25 MHz | CML | 1.8V |
| XPC716025.000000I | Renesas晶振 | XTAL OSC XO 25.0000MHZ CML SMD | XPC | 25 MHz | CML | 1.8V |
| XPC736G11.381200I | Renesas晶振 | XTAL OSC XO 1.6113812 GHZ CML | XPC | 1.6113812 GHz | CML | 3.3V |
| XPC736G11.328120I | Renesas晶振 | XTAL OSC XO 1.61132812 GHZ CML | XPC | 1.61132812 GHz | CML | 3.3V |
| XPN336156.253906I | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPN | 156.253906 MHz | HCSL | 3.3V |
| XPN326156.250000K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPN | 156.25 MHz | HCSL | 2.5V |
| XPC335025.000000K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 25 MHz | CML | 3.3V |
| XPC315156.250000K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 156.25 MHz | CML | 1.8V |
| XPC315808.123456K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 808.123456 MHz | CML | 1.8V |
| XPC335050.000000K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPC | 50 MHz | CML | 3.3V |
| XPN315100.000000K | Renesas晶振 | CLCC 3.20X2.50X0.95 MM, 2.10MM P | XPN | 100 MHz | HCSL | 1.8V |
