375-01A-R .032768|MMCC-2石英晶体|±30 ppm|圆柱晶振

当前位置：首页 » 欧美晶振 » MtronPTI晶振 » 375-01A-R .032768|MMCC-2石英晶体|±30 ppm|圆柱晶振

prevnext

375-01A-R .032768|MMCC-2石英晶体|±30 ppm|圆柱晶振

频率：0.032768MHZ

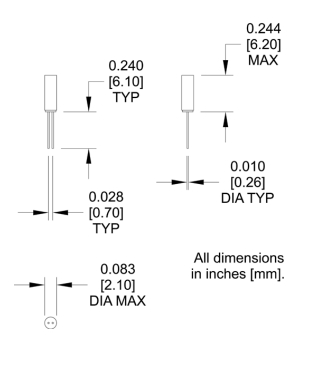

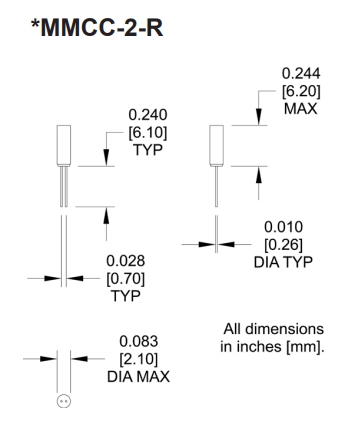

尺寸：2.0 x 6.0 mm

375-01A-R .032768|MMCC-2石英晶体|±30 ppm|圆柱晶振,375-01A-R .032768|MMCC-2石英晶体|±30 ppm|圆柱晶振,圆柱晶振,编码375-01A-R.032768,型号MMCC-2,无源晶振,MTRONPTI晶振,精度±30ppm,负载电容12.5PF,温度范围:-10℃-60℃,尺寸2.0mm*6.0mm,晶体谐振器,可以应用医疗设备中的智能温度计,CT机,磁共振,肌电图,脑电图,智能体重秤,X光,测压机,心电图等.

订购热线：0755-27838351

375-01A-R .032768|MMCC-2石英晶体|±30 ppm|圆柱晶振,375-01A-R .032768|MMCC-2石英晶体|±30 ppm|圆柱晶振,圆柱晶振,编码375-01A-R.032768,型号MMCC-2,无源晶振,MTRONPTI晶振,精度±30ppm,负载电容12.5PF,温度范围:-10℃-60℃,尺寸2.0mm*6.0mm,晶体谐振器,可以应用医疗设备中的智能温度计,CT机,磁共振,肌电图,脑电图,智能体重秤,X光,测压机,心电图等.

375-01A-R .032768|MMCC-2石英晶体|±30 ppm|圆柱晶振

型号	MMCC-2
频率范围	0.032768MHZ
负载电容	12.5PF
精度	30PPM
工作温度	-10℃60℃
存在温度	-40℃-85℃

TC-3

375-01A-R .032768|MMCC-2石英晶体|±30 ppm|圆柱晶振

mmcc-2cct

Part number	圆柱晶振	Crystal Resonator Technology	Frequency Stability	Frequency (MHz)	Frequency Tolerance	Aging	Package	Temperature Range
M13252JM 24.000000	M1325 Series	AT	±50 ppm	24	±30 ppm	±5 ppm	3.2 x 5.0 mm	-40?C to +85?C
M13804MP 15.000000	M1380 Series	AT	±100 ppm	15	±50 ppm	±3 ppm	3.7 x 8.0 mm	-55?C to +125?C
M15322GZL 0.032768	M1532 Series	AT	Parabolic Curve	0.0328	±20 ppm	±3 ppm	1.5 x 3.2 mm	-40?C to +85?C
375-01A-R .032768	MMCC-2 Series	AT	±65 ppm	0.0328	±30 ppm	±3 ppm	2.0 x 6.0 mm	-10?C to +60?C
M1001S025-R 3.686400	ATSM-49-R Series	AT	±50 ppm	3.6864	±30 ppm	±5 ppm	HC-49S-SMD	-40?C to +85?C
M1001S066 25.000000	ATSM-49-R Series	AT	±50 ppm	25	±30 ppm	±5 ppm	HC-49S-SMD	-10?C to +70?C
M1001S096 24.000000	ATSM-49-R Series	AT	±50 ppm	24	±30 ppm	±5 ppm	HC-49S-SMD	-40?C to +125?C
M1001S097 30.000000	ATSM-49-R Series	AT	±50 ppm	30	±30 ppm	±5 ppm	HC-49S-SMD	-40?C to +125?C
M1001S175-R 4.000000	ATSM-49-R Series	AT	±10 ppm	4	±25 ppm	±5 ppm	HC-49S-SMD	0?C to +70?C
M1001S182 25.000000	ATSM-49-R Series	AT	±50 ppm	25	±30 ppm	±5 ppm	HC-49S-SMD	-40?C to +85?C
M1001S214 8.000000	ATSM-49-R Series	AT	±50 ppm	8	±30 ppm	±5 ppm	HC-49S-SMD	-40?C to +85?C
M1001S258 10.000000	ATSM-49-R Series	AT	±50 ppm	10	±50 ppm	±5 ppm	HC-49S-SMD	-40?C to +125?C
M1001S286 26.000000	ATSM-49-R Series	AT	±50 ppm	26	Varies	±3 ppm	HC-49S-SMD	-20?C to +75?C
M1001S328 26.000000	ATSM-49-R Series	AT	±15 ppm	26	±10 ppm	±3 ppm	HC-49S-SMD	-40?C to +85?C
M1001S445 50.000000	ATSM-49-R Series	AT	±20 ppm	50	±15 ppm	±3 ppm	HC-49S-SMD	-40?C to +85?C
M1001S448 8.000000	ATSM-49-R Series	AT	±50 ppm	8	±50 ppm	±5 ppm	HC-49S-SMD	-55?C to +105?C
M1001S483 4.194304	ATSM-49-R Series	AT	±50 ppm	4.1943	±30 ppm	±5 ppm	HC-49S-SMD	-10?C to +70?C
M1001S554 25.000000	ATSM-49-R Series	AT	±50 ppm	25	±20 ppm	±5 ppm	HC-49S-SMD	-20?C to +70?C
M1001S559 14.463660	ATSM-49-R Series	AT	±30 ppm	14.4637	±30 ppm	NS	HC-49S-SMD	-40?C to +105?C
M1001S599 24.576000	ATSM-49-R Series	AT	±100 ppm	24.576	±30 ppm	±3 ppm	HC-49S-SMD	-55?C to +125?C
M1001S600 16.777216	ATSM-49-R Series	AT	±50 ppm	16.7772	±50 ppm	±5 ppm	HC-49S-SMD	-40?C to +85?C
M1001S602 8.000000	ATSM-49-R Series	AT	±50 ppm, ±100 ppm	8	±30 ppm	±5 ppm	HC-49S-SMD	0?C to +70?C
M1001S609 4.000000	ATSM-49-R Series	AT	±100 ppm	4	±30 ppm	±3 ppm	HC-49S-SMD	-40?C to +125?C
M1002S209 4.000000	MP-1 Series	AT	±20 ppm	4	±20 ppm	±5 ppm	HC-49U	-55?C to +105?C
M1002S210 5.482000	MP-1 Series	AT	±50 ppm	5.482	±20 ppm	±5 ppm	HC-49U	-55?C to +105?C
