NV2520SA-24.576000-NSA3458A,2520mm,NDK蓝牙耳机晶振

频率：24.576MHz

尺寸：2.5x2.0x0.9mm

NV2520SA-24.576000-NSA3458A,2520mm,NDK蓝牙耳机晶振，日本电波株式会社，NDK晶振，日本进口晶振，型号：NV2520SA，编码为：NV2520SA-24.576000-NSA3458A，电压：3.3V，频率为：24.576MHz，CMOS输出晶振，工作温度范围：-55℃至+125℃，小体积晶振尺寸：2.5x2.0x0.9mm，四脚贴片晶振，石英晶振，VCXO压控晶振，压控晶体振荡器，石英晶体振荡器。具有超小型晶振，轻薄型晶振，低抖动晶振，低功耗晶振，低电源电压晶振，低耗能晶振，低相位噪声晶振，低电平等特点。应用于：移动电话，DSC，导航设备、DVD、BD刻录机，音频（耳机、耳机等），通讯设备、无线网络，蓝牙模块，GPD定位，物联网等应用。

订购热线：0755-27838351

TC-1

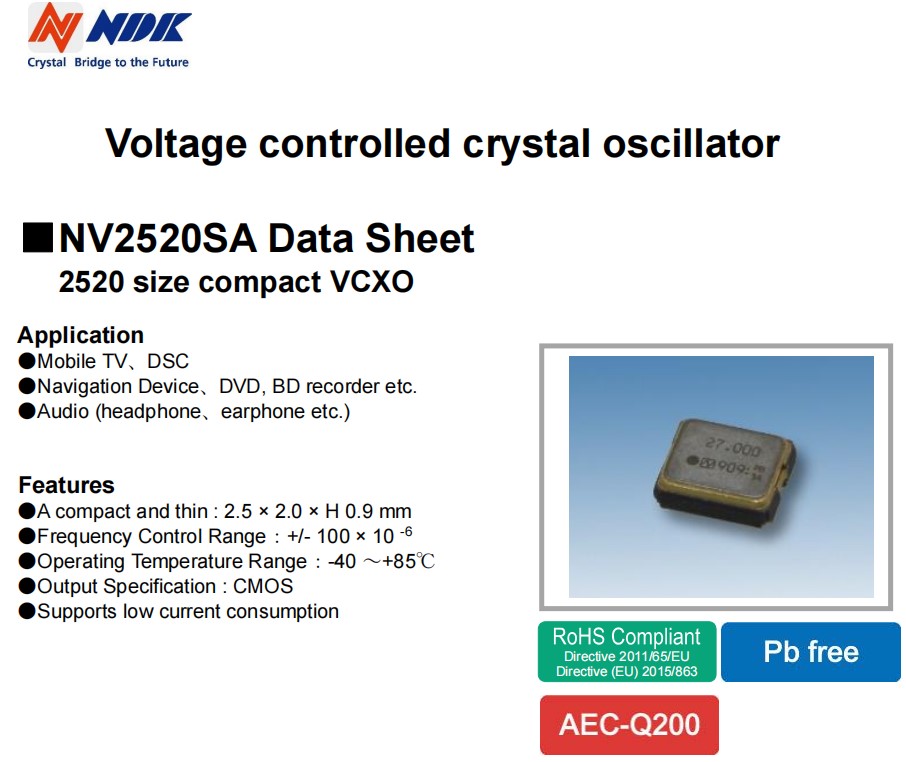

NV2520SA-24.576000-NSA3458A,2520mm,NDK蓝牙耳机晶振，产品特点：

●紧凑而薄：2.5×2.0×0.9mm石英晶体振荡器
●频率控制范围：+/-100×10-6
●工作温度范围：-40～+85℃
●输出规格：CMOS，支持低电流消耗

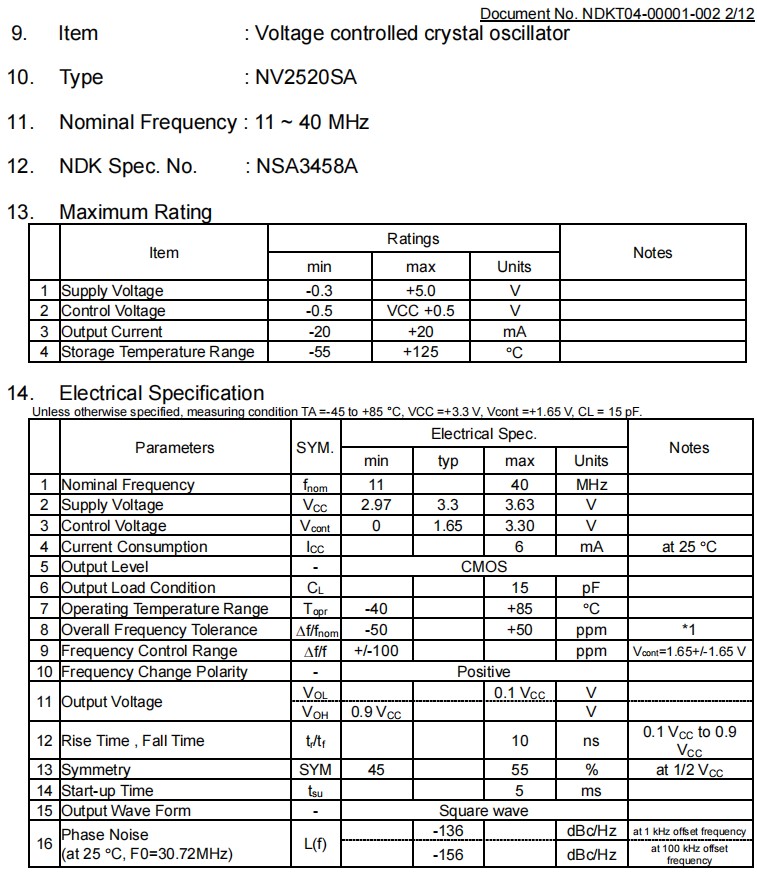

TC-2 NV2520SA-24.576000-NSA3458A,2520mm,NDK蓝牙耳机晶振,参数表

Item	Symbol	NV2520SA	Unit
Nominal frequency range	fnom	24.576000	MHz
Package size (L×W×H)	-	2.5×2.0×0.9	mm
Supply voltage	VCC	+3.3 ± 10 ％	V
Current consumption	ICC	Max. 6	mA
Output level	-	CMOS	-
Output load condition	-	Max.15	pF
Storage temperature range	Tstr	-55 to +125	℃
Operating temperature range	Topr	-40 to +85	℃
Overall frequency tolerance	Δf/fnom	Max. ±50	ppm
Frequency control range/Control voltage	Vcont	Min. ±100 / +1.65±1.65 V	ppm
Frequency change polarity	-	Positive	-
Symmetry	-	45 to 55	%
Start-up time	tsu	Max. 5	ms
Phase noise (Frequency=30.72MHz) [at 1kHz Offset Frequency]	-	Typ.-136	dBc/Hz
Phase noise (Frequency=30.72MHz) [at 100kHz Offset Frequency]	-	Typ.-156	dBc/Hz
Specification number	-	NSA3458A	-

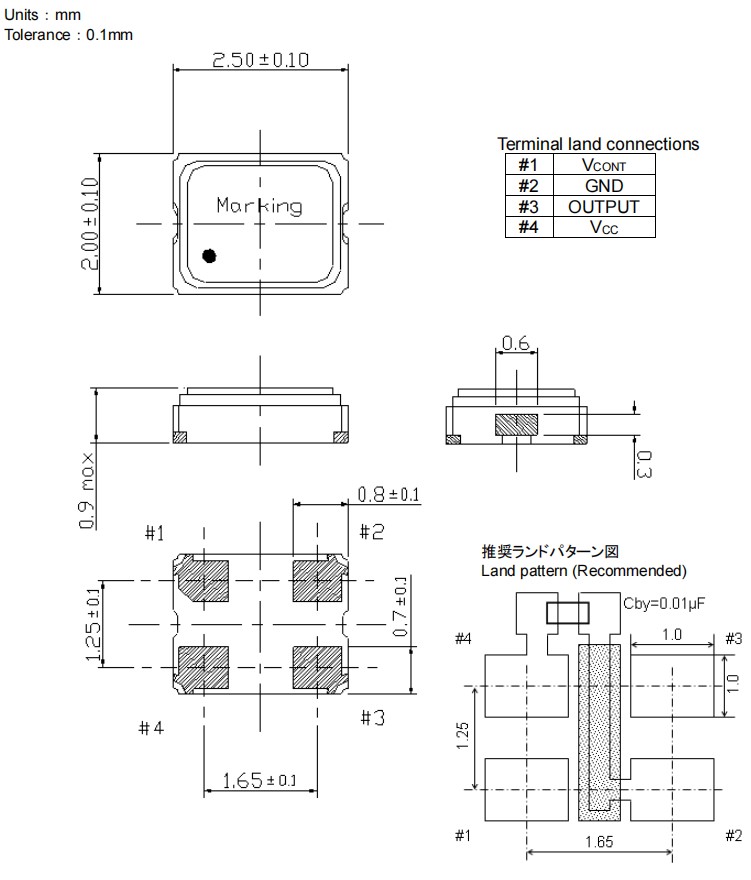

TC-3 NV2520SA-24.576000-NSA3458A,2520mm,NDK蓝牙耳机晶振,尺寸图

型号	石英水晶振动子	频率	包装尺寸	输出方式
NV2520SA	2520size Compact VCXO	12.288	2.5x2.0x0.9	CMOS
NV2520SA	2520size Compact VCXO	16.384	2.5x2.0x0.9	CMOS
NV2520SA	2520size Compact VCXO	20	2.5x2.0x0.9	CMOS
NV2520SA	2520size Compact VCXO	24.576	2.5x2.0x0.9	CMOS
NV2520SA	2520size Compact VCXO	25	2.5x2.0x0.9	CMOS
NV2520SA	2520size Compact VCXO	27	2.5x2.0x0.9	CMOS
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	LVDS
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	LVDS
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	LVDS
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	LVDS
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	LVDS
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	LVDS
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	LVDS
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	LVDS
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	LVDS
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	CML
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	CML
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	CML
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	CML
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	CML
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	CML
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	CML
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	CML
NV5032SK	Multi-mode VCXO	15~2100	5.0x3.0x1.2	CML
NV5032SK	Multi-mode VCXO NDK晶振	15~700	5.0x3.0x1.2	HCSL
NV5032SK	Multi-mode VCXO	15~700	5.0x3.0x1.2	HCSL
NV5032SK	Multi-mode VCXO	15~700	5.0x3.0x1.2	HCSL
NV5032SK	Multi-mode VCXO	15~700	5.0x3.0x1.2	HCSL
NV5032SK	Multi-mode VCXO	15~700	5.0x3.0x1.2	HCSL
NV5032SK	Multi-mode VCXO	15~700	5.0x3.0x1.2	HCSL
NV5032SK	Multi-mode VCXO	15~700	5.0x3.0x1.2	HCSL
NV5032SK	Multi-mode VCXO	15~700	5.0x3.0x1.2	HCSL
NV5032SK	Multi-mode VCXO	15~700	5.0x3.0x1.2	HCSL
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	LVDS
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	LVDS
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	LVDS
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	LVDS
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	LVDS
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	LVDS
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	LVDS
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	LVDS
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	LVDS
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	CML
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	CML
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	CML
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	CML
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	CML
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	CML
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	CML
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	CML
NV7050SK	Multi-mode VCXO	15~2100	7.0x5.0x1.6	CML
NV7050SK	Multi-mode VCXO	15~700	7.0x5.0x1.6	HCSL
NV7050SK	Multi-mode VCXO	15~700	7.0x5.0x1.6	HCSL
NV7050SK	Multi-mode VCXO	15~700	7.0x5.0x1.6	HCSL
NV7050SK	Multi-mode VCXO	15~700	7.0x5.0x1.6	HCSL
NV7050SK	Multi-mode VCXO	15~700	7.0x5.0x1.6	HCSL
NV7050SK	Multi-mode VCXO	15~700	7.0x5.0x1.6	HCSL
NV7050SK	Multi-mode VCXO	15~700	7.0x5.0x1.6	HCSL
NV7050SK	Multi-mode VCXO	15~700	7.0x5.0x1.6	HCSL
NV7050SK	Multi-mode VCXO	15~700	7.0x5.0x1.6	HCSL
