夸克高质量晶振,QTC32数字视频晶振,QTC3218.4320FDT1I20M,

频率：18.432MHZ

尺寸：3.2x2.5mm

夸克高质量晶振,QTC32数字视频晶振,QTC3218.4320FDT1I20M，尺寸3.2x2.5mm，频率18.432MHZ，Quarztechnik无源晶振，德国进口晶振，夸克石英晶振，Quarztechnik Crystal，石英晶体谐振器，SMD晶振，石英无源晶振，石英贴片晶振，石英晶振，无源贴片晶振，3225mm小封装晶振，高性能晶振，高质量晶振，高精度晶振，低损耗晶振，低功耗晶振，低耗能晶振，低成本晶振，通信设备晶振，测试设备晶振，无线应用晶振，汽车应用晶振，高密度应用晶振，数字视频专用晶振，物联网晶振，便携式设备晶振，健康保健晶振，医疗设备晶振，仪器设备晶振，具有超高的可靠性能。

贴片晶振产品超级适合用于物联网，便携式设备，健康保健，医疗设备，高密度应用，调制解调器、通信和测试设备，PMCIA，无线应用，汽车应用等领域。夸克高质量晶振,QTC32数字视频晶振,QTC3218.4320FDT1I20M.

订购热线：0755-27838351

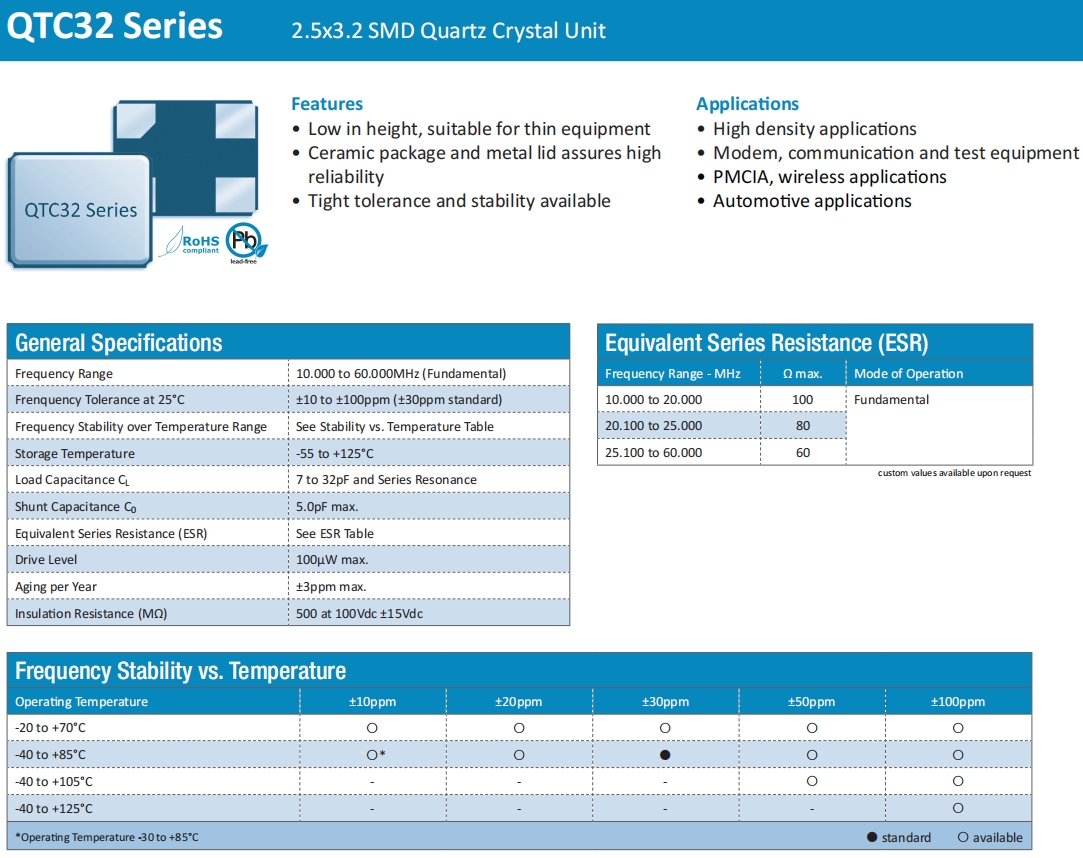

夸克高质量晶振,QTC32数字视频晶振,QTC3218.4320FDT1I20M 参数表

General Specifications

Frequency Range

18.4320MHz (Fundamental)

Frenquency Tolerance at 25°C

±10 to ±100ppm (±30ppm standard)

Frequency Stability over Temperature Range

See Stability vs. Temperature Table

Storage Temperature

-55 to +125°C

Load Capacitance CL

7 to 32pF and Series Resonance

Shunt Capacitance C0

5.0pF max.

Equivalent Series Resistance (ESR)

See ESR Table

Drive Level

100μW max.

Aging per Year

±3ppm max.

Insulation Resistance (MΩ)

500 at 100Vdc ±15Vdc

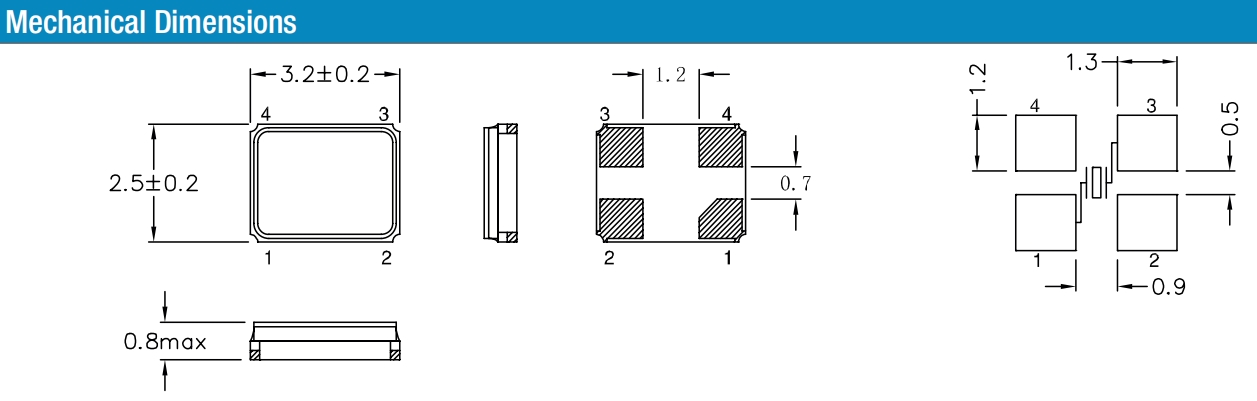

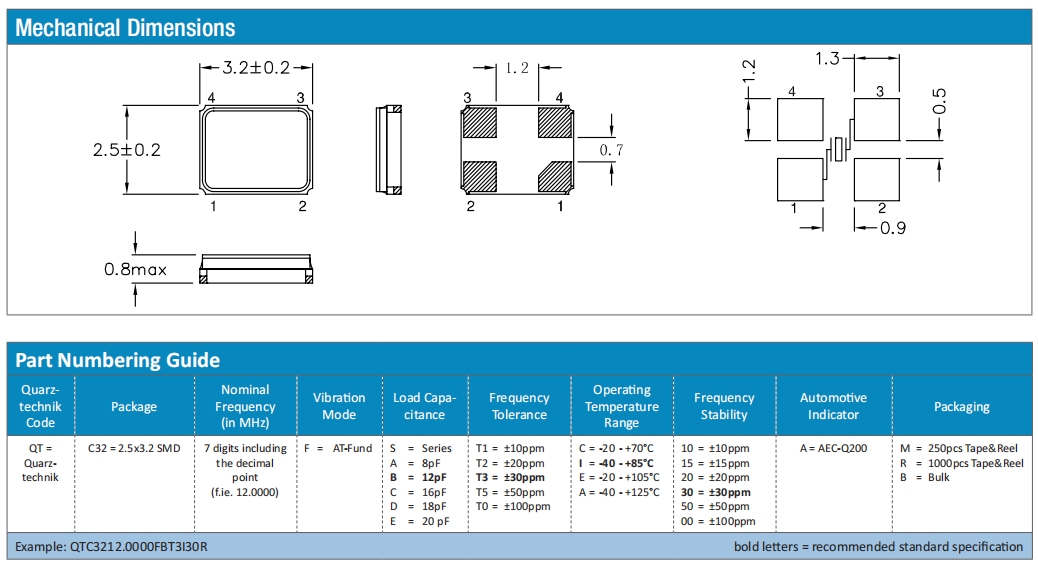

夸克高质量晶振,QTC32数字视频晶振,QTC3218.4320FDT1I20M 尺寸图

夸克高质量晶振,QTC32数字视频晶振,QTC3218.4320FDT1I20M

石英晶振产品特性：

高度低，适用于薄型设备

陶瓷包装和金属盖确保可靠性

具有紧密的公差和稳定性

Frequency	CL	Tolerance	Stability	Temp. Range	Part number	晶振厂家
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A8.00000FDT1I20M	Quarztechnik夸克晶振
10.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A10.0000FDT1I20M	Quarztechnik夸克晶振
11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A11.0592FDT1I20M	Quarztechnik夸克晶振
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A12.0000FDT1I20M	Quarztechnik夸克晶振
14.31818 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A14.31818FDT1I20M	Quarztechnik夸克晶振
14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A14.7456FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A16.0000FDT1I20M	Quarztechnik夸克晶振
19.6608 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A19.6608FDT1I20M	Quarztechnik夸克晶振
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A24.0000FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A25.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A27.0000FDT1I20M	Quarztechnik夸克晶振
32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC7A32.0000FDT1I20M	Quarztechnik夸克晶振
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A8.00000FDT1I20M	Quarztechnik夸克晶振
11.0592 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A11.0592FDT1I20M	Quarztechnik夸克晶振
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A12.0000FDT1I20M	Quarztechnik夸克晶振
14.7456 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A14.7456FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A16.0000FDT1I20M	Quarztechnik夸克晶振
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A20.0000FDT1I20M	Quarztechnik夸克晶振
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A24.0000FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A25.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A27.0000FDT1I20M	Quarztechnik夸克晶振
32.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC6A32.0000FDT1I20M	Quarztechnik夸克晶振
8.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A8.00000FDT1I20M	Quarztechnik夸克晶振
12.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A12.0000FDT1I20M	Quarztechnik夸克晶振
12.288 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A12.2880FDT1I20M	Quarztechnik夸克晶振
15.360 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A15.3600FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A16.0000FDT1I20M	Quarztechnik夸克晶振
18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A18.4320FDT1I20M	Quarztechnik夸克晶振
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A20.0000FDT1I20M	Quarztechnik夸克晶振
24.576 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A24.5760FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A25.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A27.0000FDT1I20M	Quarztechnik夸克晶振
30.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A30.0000FDT1I20M	Quarztechnik夸克晶振
40.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A40.0000FDT1I20M	Quarztechnik夸克晶振
48.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC5A48.0000FDT1I20M	Quarztechnik夸克晶振
16.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3216.0000FDT1I20M	Quarztechnik夸克晶振
18.432 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3218.4320FDT1I20M	Quarztechnik夸克晶振
20.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3220.0000FDT1I20M	Quarztechnik夸克晶振
24.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3224.0000FDT1I20M	Quarztechnik夸克晶振
25.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3225.0000FDT1I20M	Quarztechnik夸克晶振
27.0 MHz	18 pF	±10ppm	±20ppm	-40 - +85°C	QTC3227.0000FDT1I20M	Quarztechnik夸克晶振
