AS-10.000-20-3030-SMD-TR,10MHz,20pf,-20~70°C

频率：10MHz

尺寸：13.5 x4.8mm

AS-10.000-20-3030-SMD-TR,10MHz,20pf,-20~70°C，美国拉隆晶振,欧美无源晶振,AS-10.000-20-3030-SMD-TR晶振,频率10MHz,负载20pf,工作温度-20~70°C,进口SMD晶振,AS-SMD晶体谐振器,储存卡晶振,时钟信号源晶振,电脑显示屏晶振,便携式设备晶振..

订购热线：0755-27838351

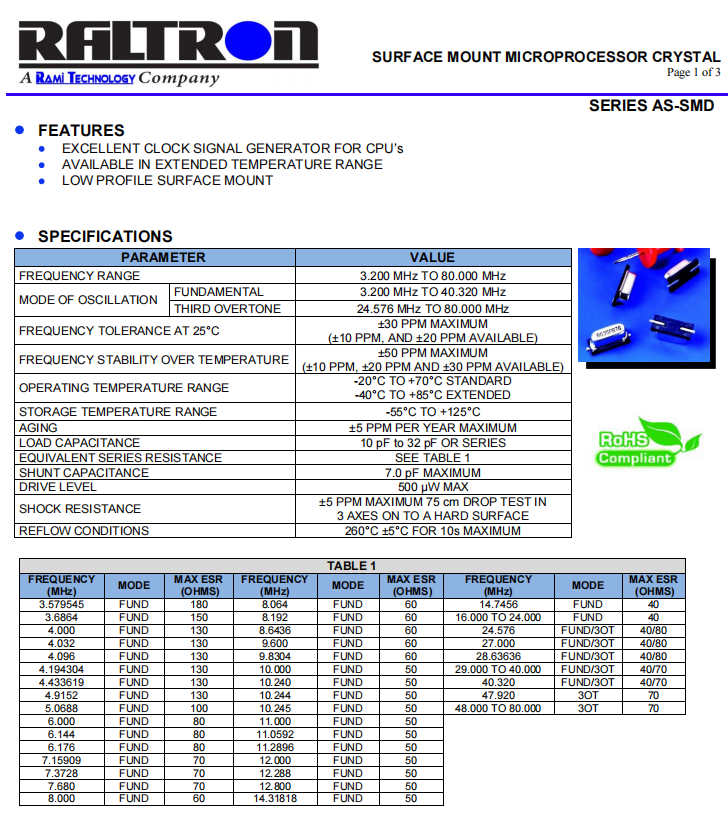

AS-10.000-20-3030-SMD-TR,10MHz,20pf,-20~70°C,参数图

规格参数			数值
频率			10MHz
频率公差 (at +25°C)			± 30PPM
温度范围内的频率稳定性			± 30PPM
工作温度			-20°C to +70°C
保存温度			-55°C to +125°C
老化			±5ppm Max/year
并联电容 (C0)			7 pF
负载电容 (CL)			30 pF
激励功率			500 μW Max
等效串联电阻(ESR)			60 Ω
抗冲击性能			±5 PPM MAXIMUM 75 cm DROP TEST IN 3 AXES ON TO A HARD SURFACE
回流焊条件			260°C ±5°C FOR 10s MAXIMUM

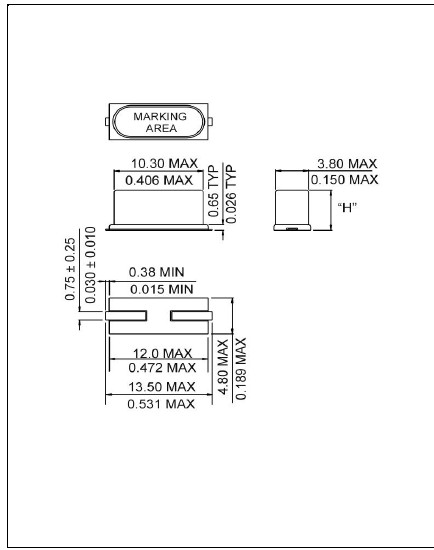

AS-10.000-20-3030-SMD-TR,10MHz,20pf,-20~70°C,尺寸图

Raltron原厂编码	型号	频率	尺寸	频率偏差	频率稳定度	负载	工作温度
AS-4.000-18-SMD-TR	AS-SMD	4.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-4.9152-18-EXT-SMD-TR	AS-SMD	4.9152MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-40°C~+85°C
AS-5.000-18-EXT-SMD-TR	AS-SMD	5.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-40°C~+85°C
AS-6.000-12-2020-EXT-SMD-TR	AS-SMD	6.000MHz	13.50 x 4.80mm	± 20 ppm	± 20 ppm	12 pF	-40°C~+85°C
AS-7.3728-20-EXT-SMD-TR	AS-SMD	7.3728MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-40°C~+85°C
AS-7.3728-18-SMD-TR	AS-SMD	7.3728MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-8.000-20-SMD-TR	AS-SMD	8.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-8.000-18-SMD-TR	AS-SMD	8.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-8.000-30-3030-SMD-TR	AS-SMD	8.000MHz	13.50 x 4.80mm	± 30 ppm	± 30 ppm	30 pF	-20°C~+70°C
AS-9.8304-18-SMD-TR	AS-SMD	9.8304MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-10.000-20-3030-SMD-TR	AS-SMD	10.000MHz	13.50 x 4.80mm	± 30 ppm	± 30 ppm	20 pF	-20°C~+70°C
AS-11.0592-18-SMD-TR	AS-SMD	11.0592MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-12.000-18-SMD-TR	AS-SMD	12.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-13.560-20-SMD-TR	AS-SMD	13.560MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-10°C~+70°C
AS-14.31818-20-SMD-TR	AS-SMD	14.31818MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-14.7456-20-SMD-TR	AS-SMD	14.7456MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-14.7456-18-EXT-SMD-TR	AS-SMD	14.7456MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-40°C~+85°C
AS-16.000-18-SMD-TR	AS-SMD	16.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-16.000-20-SMD-TR	AS-SMD	16.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-18.432-20-SMD-TR	AS-SMD	18.432MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-18.432-18-SMD-TR	AS-SMD	18.432MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-19.6608-20-SMD-TR	AS-SMD	19.6608MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-10°C~+70°C
AS-20.000-16-SMD-TR	AS-SMD	20.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	16 pF	-20°C~+70°C
AS-20.000-20-SMD-TR	AS-SMD	20.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-24.000-18-SMD-TR	AS-SMD	24.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-24.576-18-F-SMD-TR	AS-SMD	24.576MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-25.000-18-F-SMD-TR	AS-SMD	25.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-20°C~+70°C
AS-26.000-20-F-SMD-TR	AS-SMD	26.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	20 pF	-20°C~+70°C
AS-27.000-20-F-3030-SMD-TR	AS-SMD	27.000MHz	13.50 x 4.80mm	± 30 ppm	± 30 ppm	20 pF	-10°C~+60°C
AS-30.000-10-F-2020-EXT-SMD-TR	AS-SMD	30.000MHz	13.50 x 4.80mm	± 20 ppm	± 20 ppm	10 pF	-40°C~+85°C
AS-30.000-10-F-2020-EXT-SMD-TR	AS-SMD	32.000MHz	13.50 x 4.80mm	± 10 ppm	± 20 ppm	10 pF	-20°C~+70°C
AS-40.000-18-F-EXT-SMD-TR	AS-SMD	40.000MHz	13.50 x 4.80mm	± 30 ppm	± 50 ppm	18 pF	-40°C~+85°C
