Q0.032768-JTX310-12.5-20-T1-HMR-LF法国Jauch晶振电子产品常用的具体参数
Q0.032768-JTX310-12.5-20-T1-HMR-LF法国Jauch晶振电子产品常用的具体参数
JAUCH晶振节奏和能量是推动和驱动世界的力量.我们在Jauch的世界尤其受到这些冲动的影响.频率控制产品和电池解决方案决定了我们的日常生活,每天给我们节奏和能量.最重要的是,我们的员工是使Jauch晶振代理商成为一家非常特别的公司的因素.
在我们的博客中,我们将带您了解我们的产品、员工和Jauch企业文化,为您提供JauchG集团幕后令人兴奋的见解.我们期待与您分享！

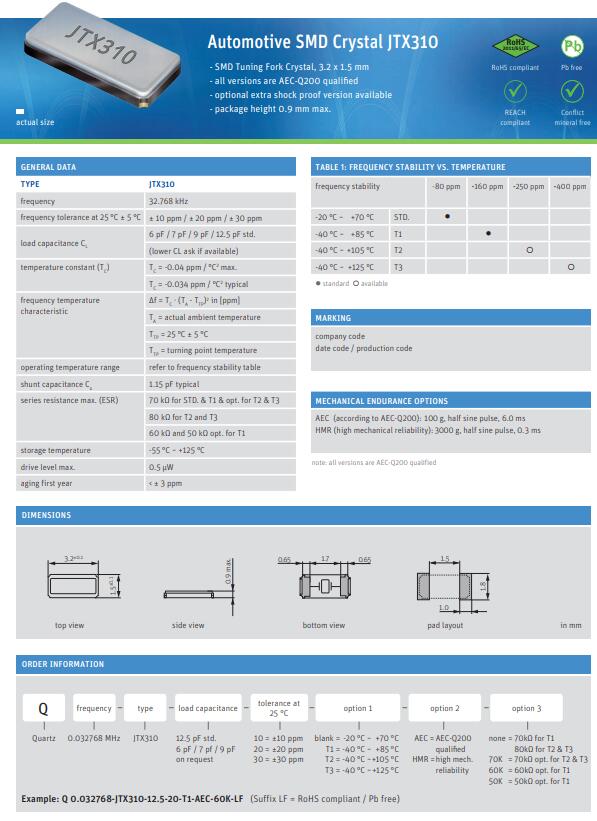

Q0.032768-JTX310-12.5-20-T1-HMR-LF晶振,法国Jauch石英晶体
| Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 105°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 105°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 105°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 9PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 9PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 9PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 125°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 125°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 125°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch Quartz | CRYSTAL 32.768KHZ 12.5PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 7PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 7PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 7PF SMD | JTX310 | ±20ppm | -40°C ~ 85°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 9PF SMD | JTX310 | ±20ppm | -40°C ~ 105°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 9PF SMD | JTX310 | ±20ppm | -40°C ~ 105°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 9PF SMD | JTX310 | ±20ppm | -40°C ~ 105°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 7PF SMD | JTX310 | ±20ppm | -40°C ~ 105°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 7PF SMD | JTX310 | ±20ppm | -40°C ~ 105°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 7PF SMD | JTX310 | ±20ppm | -40°C ~ 105°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 9PF SMD | JTX310 | ±20ppm | -40°C ~ 125°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
| Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch Quartz | CRYSTAL 32.768KHZ 9PF SMD | JTX310 | ±20ppm | -40°C ~ 125°C | 0.126" L x 0.059" W (3.20mm x 1.50mm) |
70年代石英表的热潮已经表明：在精确的时间记录方面,没有什么比石英晶体更好的了！今天也不例外.具有32.768kHz特征频率的频率控制产品几乎可以在所有集成时间测量的应用中找到,例如笔记本电脑、手机或微波炉.
Q0.032768-JTX310-12.5-20-T1-HMR-LF晶振,法国Jauch石英晶体

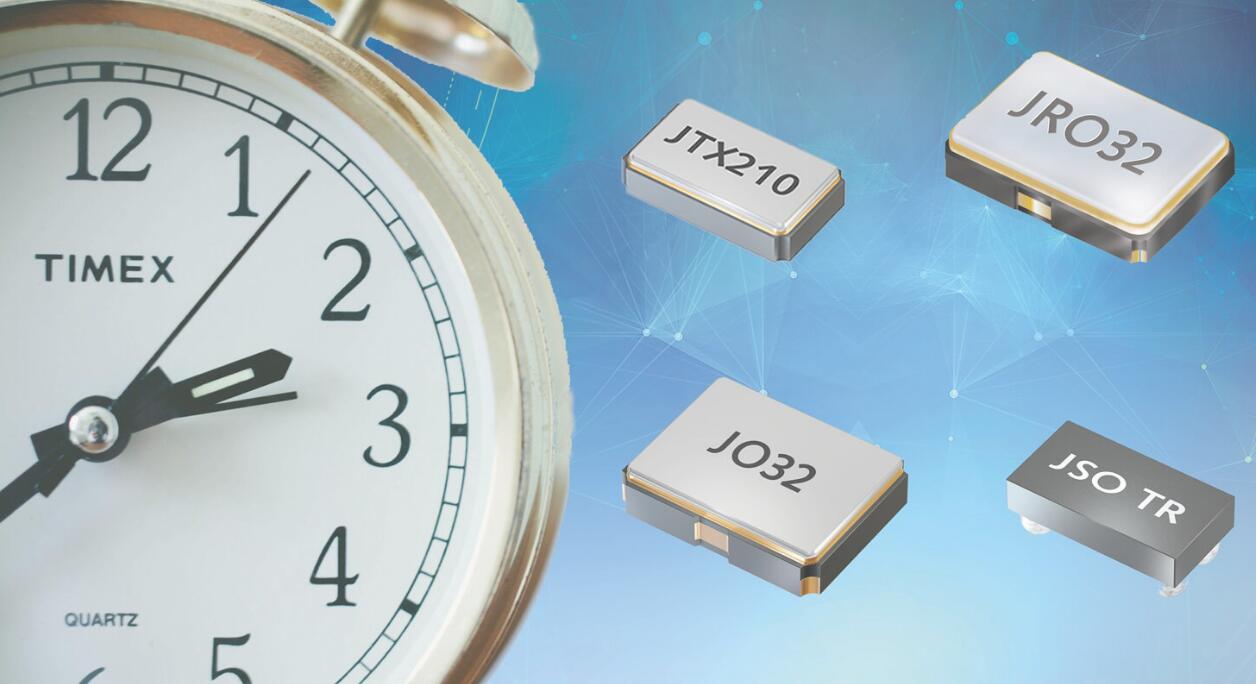

32.768kHz进口晶振振荡器的优势
如果您不想为音叉晶体设计正确的电路,您可以求助于Jauch的32.768kHz振荡器,它们都配备了与CMOS兼容的输出信号.这种轨到轨输出可以非常轻松地连接到所有常见的微控制器和RTC设备.
音叉晶体带来的低电流消耗
例如,JRO3232.768kHz振荡器非常易于使用.它在内部使用贴片晶振音叉晶体,因此电流消耗特别低.此外,它可以在1.5V和5.0V之间的可变工作电压下工作,这使其特别适用于电池供电的应用.由于使用了音叉晶体,其输出频率在很大程度上取决于工作温度.
