仪器设备专用LV-PECL晶振SG5032EAN爱普生差分晶振X1G004271000100

晶振封装尺寸和外形基于晶体振荡器类型和规格,对晶振封装的要求将大相径庭.简单的时钟振荡器和一些TCXO可以装在小到1.2×2.5mm的封装中；而一些OCXO可以大到50×50mm,爱普生晶振对某些特定设计甚至可更大.虽然一些通孔封装如双列直插式4或14引脚类型仍然用于较大的部件(如恒温晶振OCXO或专用温补晶振TCXO),但大多数当前设计使用表贴封装.这些表贴配置可以是密封的陶瓷封装,

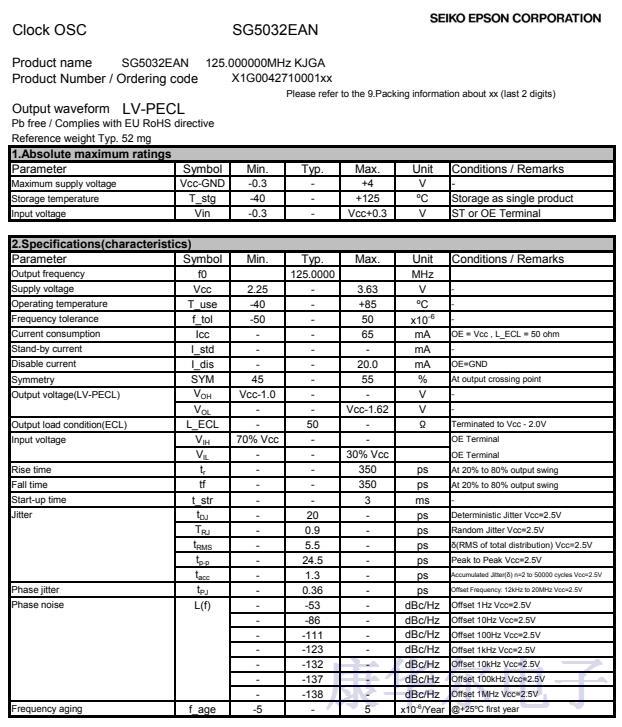

SG5032EAN爱普生差分晶振X1G004271000100,仪器设备专用LV-PECL晶振

爱普生有源晶振编码	型号	频率	长X宽X高	输出波	电源电压	工作温度	频差
X1G004261006900	SG5032VAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-20 ppm
X1G004261007100	SG5032VAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-20 ppm
X1G004261010200	SG5032VAN	250.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004261010700	SG5032VAN	153.600000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261011400	SG5032VAN	78.125000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261011900	SG5032VAN	120.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261012100	SG5032VAN	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261012500	SG5032VAN	148.351600 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261012600	SG5032VAN	133.333300 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261012800	SG5032VAN	250.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261012900	SG5032VAN	135.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004261013100	SG5032VAN	322.265625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004261013300	SG5032VAN	230.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004261013500	SG5032VAN	148.351600 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004261013600	SG5032VAN	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004261013800	SG5032VAN	148.351600 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C	+/-20 ppm
X1G004261014100	SG5032VAN	161.132812 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004261014300	SG5032VAN	625.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004271000100	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004271000400	SG5032EAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004271001200	SG5032EAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004271001300	SG5032EAN	155.520000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004271001400	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-50 ppm
X1G004271002000	SG5032EAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm
X1G004271003300	SG5032EAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C	+/-30 ppm

对于高于约100MHz的较高频率,通常使用差分方波.这些晶体振荡器具有两个180°异相的输出、具有快速上升和下降时间以及非常小的抖动.日本晶振最通用的类型是LVPECL和LVDS.如果振荡器用于驱动RF组件、如混频器或其它具有50Ω输入阻抗的器件,则通常会指定某个功率级别的正弦波输出.晶振产生的输出功率通常在0dBm到+13dBm(1mW到20mW)之间,尽管如果需要可以输出更高功率.

SG5032EAN爱普生差分晶振X1G004271000100,仪器设备专用LV-PECL晶振
