7015mm,224-000307-20,Oscilent音叉晶振,32.768KHZ,224系列晶振

7015mm,224-000307-20,Oscilent音叉晶振,32.768KHZ,224系列晶振,美国奥斯康利晶振,欧美无源晶振,32.768KHZ音叉晶体,无源贴片晶振,SMD晶体,7015mm晶体谐振器,陶瓷晶振,四脚无源晶体,尺寸7.0*1.5mm,频率32.768KHZ,负载7pF,低功耗晶振,低耗能晶振,时钟晶体,高精度晶振,无铅晶振,无线鼠标晶振,电话机晶振,儿童智能手表晶振.

7015mm,224-000307-20,Oscilent音叉晶振,32.768KHZ,224系列晶振特点:

超薄包装,低调32.768KHz晶振

长期稳定性,行业标准占地面积

卓越的抗震性能,卓越的环境特性

磁带和卷轴,RoHs/无铅合规

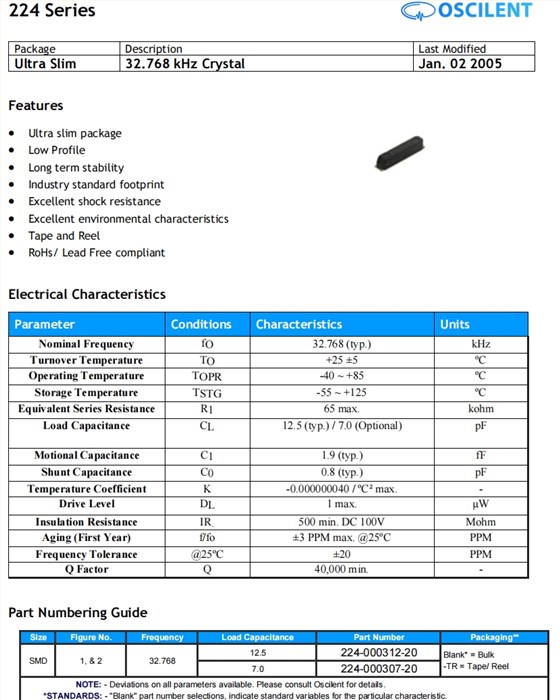

7015mm,224-000307-20,Oscilent音叉晶振,32.768KHZ,224系列晶振 参数表

Parameter			Conditions		Characteristics			Units
Nominal Frequency			fO		32.768 (typ.)			kHz
Turnover Temperature			TO		+25 ±5			ºC
Operating Temperature			TOPR		-40 ~ +85			ºC
Storage Temperature			TSTG		-55 ~ +125			ºC
Equivalent Series Resistance			R1		65 max.			kohm
Load Capacitance			CL		12.5 (typ.) / 7.0 (Optional)			pF
Motional Capacitance			C1		1.9 (typ.)			fF
Shunt Capacitance			C0		0.8 (typ.)			pF
Temperature Coefficient			K		-0.000000040 / ºC² max.			-
Drive Level			DL		1 max.			µW
Insulation Resistance			IR.		500 min. DC 100V			Mohm
Aging (First Year)			f/fo		±3 PPM max. @25ºC			PPM
Frequency Tolerance			@25ºC		±20			PPM
Q Factor			Q		40,000 min.			-

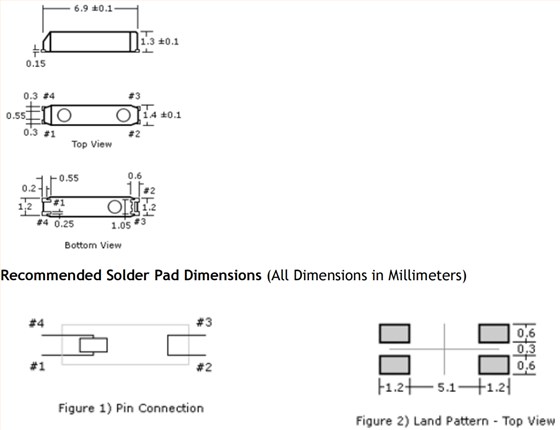

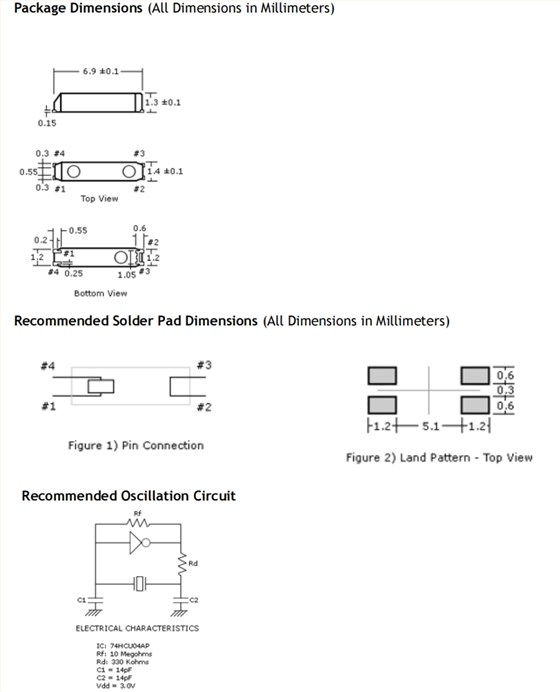

7015mm,224-000307-20,Oscilent音叉晶振,32.768KHZ,224系列晶振 尺寸图
