CFV-20677503DZFB-77.503KHz-12.5pf-日本西铁城晶振

CFV-20677503DZFB-77.503KHz-12.5pf-日本西铁城晶振,CFV-20677503DZFB晶振,频率77.503KHz,负载12.5pf,日本西铁城晶振,CFV-206插件晶振,小体积晶振,环保晶振,工作温度-20~70°C,便携式设备晶振,低消费电力设备晶振,电子体重秤晶振,智能体温计晶振,家用电器晶振.

CFV-20677503DZFB-77.503KHz-12.5pf-日本西铁城晶振参数表

项目	符号	CFV-206
频率	f0	77.503KHz
频率公差	△f/f0	±30ppm
负载电容	CL	12.5pf
工作温度	TOPR	－20℃～＋70℃
保存温度	TSTR	－40℃～＋85℃
点温度	TM	25℃±5℃
温度系数	β	－0.034±0.006ppm/℃2
串联阻力	R1	50KΩ Max.
驱动级别	DL	1μW Max
老化（第一年）	△f/f0	±5ppm Max.
并联电容	C0	0.8~1.7pF Typ.

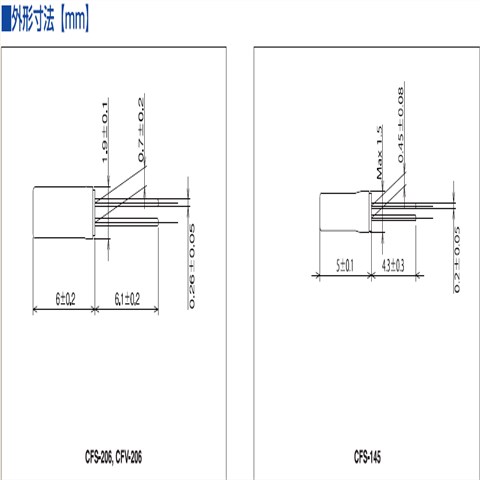

CFV-20677503DZFB-77.503KHz-12.5pf-日本西铁城晶振尺寸图

原厂编码	生产厂家	型号	频率	频率偏差	负载电容	电阻	工作温度
CFS-20632768DZFB	Citizen 晶振	CFS-206	32.768kHz	±20ppm	12.5pF	35 kOhm	-20°C ~ 70°C
CFS-20632768HZFB	Citizen 晶振	CFS-206	32.768kHz	±5ppm	12.5pF	35 kOhm	-20°C ~ 70°C
CFS-20632768AZFB	Citizen 晶振	CFS-206	32.768kHz	±20ppm	12.5pF	35 kOhm	-20°C ~ 70°C
CFS-20632768DZYB	Citizen 晶振	CFS-206	32.768kHz	±20ppm	7pF	35 kOhm	-20°C ~ 70°C
CFS-20632768DZCB	Citizen 晶振	CFS-206	32.768kHz	±20ppm	9pF	35 kOhm	-20°C ~ 70°C
CFS-20632768EZBB	Citizen 晶振	CFS-206	32.768kHz	±10ppm	6pF	35 kOhm	-20°C ~ 70°C
CFS-20632768EZFB	Citizen 晶振	CFS-206	32.768kHz	±10ppm	12.5pF	35 kOhm	-20°C ~ 70°C
CFV-20632000AZFB	Citizen 晶振	CFV-206	32kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFS-14532768DZFB	Citizen 晶振	CFS145	32.768kHz	±20ppm	12.5pF	40 kOhm	-20°C ~ 70°C
CFV-20638400AZFB	Citizen 晶振	CFV-206	38.4kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20677503DZFB	Citizen 晶振	CFV-206	77.503kHz	±20ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20675000DZFB	Citizen 晶振	CFV-206	75kHz	±20ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-206100000AZFB	Citizen 晶振	CFV-206	100kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20640000AZFB	Citizen 晶振	CFV-206	40kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20632000DZFB	Citizen 晶振	CFV-206	32kHz	±20ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20665536AZFB	Citizen 晶振	CFV-206	65.536kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20636000AZFB	Citizen 晶振	CFV-206	36kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFS-20632768EZYB	Citizen 晶振	CFS-206	32.768kHz	±20ppm	7pF	35 kOhm	-20°C ~ 70°C
CFV-20668500DZFB	Citizen 晶振	CFV-206	68.5kHz	±20ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20668503DZFB	Citizen 晶振	CFV-206	68.5kHz	±20ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20640003DZFB	Citizen 晶振	CFV-206	40kHz	±20ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20660003DZFB	Citizen 晶振	CFV-206	60kHz	±20ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20660000DZFB	Citizen 晶振	CFV-206	60kHz	±20ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20640000DZFB	Citizen 晶振	CFV-206	40kHz	±20ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20660000AZFB	CITIZEN晶振	CFV-206	60kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20676800AZFB	Citizen 晶振	CFV-206	76.8kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20696000AZFB	Citizen 晶振	CFV-206	96kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFS-20632768HZBB	Citizen 晶振	CFS-206	32.768kHz	±5ppm	6pF	35 kOhm	-20°C ~ 70°C
CFS-20632768HZCB	Citizen 晶振	CFS-206	32.768kHz	±5ppm	9pF	35 kOhm	-20°C ~ 70°C
CFS-20632768HZYB	Citizen 晶振	CFS-206	32.768kHz	±5ppm	7pF	35 kOhm	-20°C ~ 70°C
CFV-20675000BZFB	Citizen 晶振	CFV-206	75kHz	±50ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20677500BZFB	Citizen 晶振	CFV-206	77.5kHz	±50ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20675000AZFB	Citizen 晶振	CFV-206	75kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20638000AZFB	Citizen 晶振	CFV-206	38kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV-20677503AZFB	Citizen 晶振	CFV-206	77.503kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV206 60.005KAZF	Citizen 晶振	CFV-206	60.005kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV206 76.790KAZF	Citizen 晶振	CFV-206	76.79kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV206 76.810KAZF	Citizen 晶振	CFV-206	76.81kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV206 77.500KAZF	Citizen 晶振	CFV-206	77.5kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV206 153.600KAZF	Citizen 晶振	CFV-206	153.6kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV206 153.600KAZF-UB	Citizen 晶振	CFV-206	153.6kHz	±30ppm	12.5pF	50 kOhm	-20°C ~ 70°C
CFV206 32.000KDZSB	Citizen 晶振	CFV-206	32kHz	±20ppm	11pF	50 kOhm	-20°C ~ 70°C
