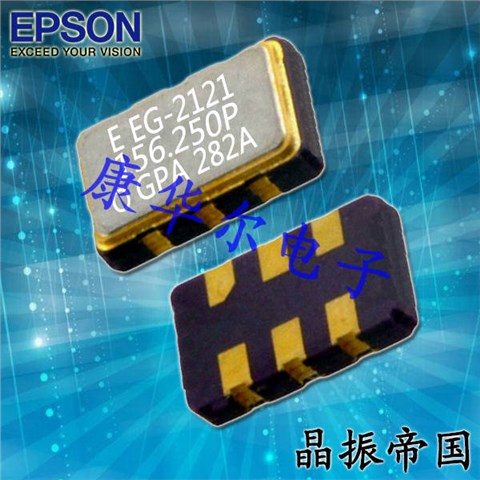

X1G0045110002,爱普生LV-PECL晶振,SG7050EBN光模块晶振

X1G0045110002,爱普生LV-PECL晶振,SG7050EBN光模块晶振X1G0045110002,爱普生LV-PECL晶振,SG7050EBN光模块晶振

产品简介

X1G0045110002,爱普生LV-PECL晶振,SG7050EBN光模块晶振，尺寸7.0×5.0mm，频率125MHZ，支持输出LV-PECL，日本进口晶振，EPSON有源晶振，7050mm差分晶振，差分晶体振荡器，LV-PECL输出晶振，有源差分晶振，石英差分晶振，六脚差分晶振，贴片差分晶振，125MHZ差分晶振，低损耗差分晶振，低功耗差分晶振，低抖动差分晶振，低相位差分晶振，低相噪差分晶振，高质量差分晶振，高性能差分晶振，光模块差分晶振，无线路由器差分晶振，多媒体设备差分晶振，室外基站差分晶振，通信模块差分晶振，可视化智能家居差分晶振，具有良好的可靠性能以及耐压性能。

LVPECL差分晶振产品比较广泛应用于光模块，无线路由器，多媒体设备，室外基站，通信模块，可视化智能家居等应用领域。X1G0045110002,爱普生LV-PECL晶振,SG7050EBN光模块晶振.

产品详情

1

X1G0045110002,爱普生LV-PECL晶振,SG7050EBN光模块晶振，尺寸7.0×5.0mm，频率125MHZ，支持输出LV-PECL，日本进口晶振，EPSON有源晶振，7050mm差分晶振，差分晶体振荡器，LV-PECL输出晶振，有源差分晶振，石英差分晶振，六脚差分晶振，贴片差分晶振，125MHZ差分晶振，低损耗差分晶振，低功耗差分晶振，低抖动差分晶振，低相位差分晶振，低相噪差分晶振，高质量差分晶振，高性能差分晶振，光模块差分晶振，无线路由器差分晶振，多媒体设备差分晶振，室外基站差分晶振，通信模块差分晶振，可视化智能家居差分晶振，具有良好的可靠性能以及耐压性能。

LVPECL差分晶振产品比较广泛应用于光模块，无线路由器，多媒体设备，室外基站，通信模块，可视化智能家居等应用领域。X1G0045110002,爱普生LV-PECL晶振,SG7050EBN光模块晶振.2

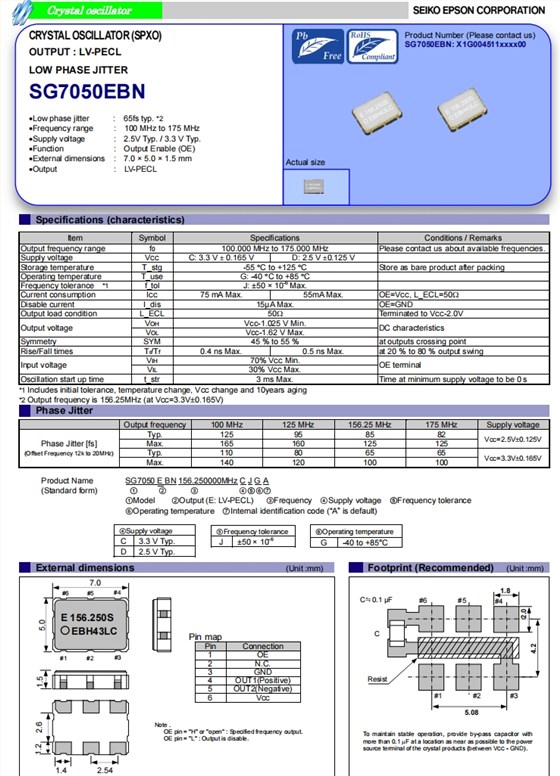

X1G0045110002,爱普生LV-PECL晶振,SG7050EBN光模块晶振 参数表

Item Symbol Specifications Conditions / Remarks
Output frequency range f0 125.000 MHz Please contact us about available frequencies.
Supply voltage VCC C: 3.3 V土0.165 V D: 2.5 V土0.125 V
Storage temperature T_stg -55℃to +125℃ Store as bare product after packing
Operating temperature T_use G: -40℃to +85℃
Frequency tolerance*1 f_tol J: ±50 × 10-6Max.
Current consumption ICC 75 mA Max. 55mA Max. OE=VCC, L_ECL=50Ω
Disable current I_dis 15μA Max. OE=GND
Output load condition L_ECL 50Ω Terminated to VCC-2.0V
Output voltage VOH Vcc-1.025 V Min. DC characteristics
VOL Vcc-1.62 V Max.
Symmetry SYM 45 % to 55 % at outputs crossing point
Rise/Fall times Tr/Tf 0.4 ns Max. 0.5 ns Max. at 20 % to 80 % output swing
Input voltage VIH 70% VCCMin. OE terminal
VIL 30% VCCMax.
Oscillation start up time t_str 3 ms Max. Time at minimum supply voltage to be 0 s
3

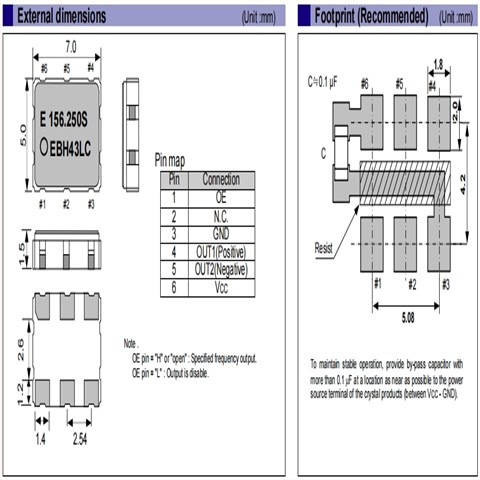

X1G0045110002,爱普生LV-PECL晶振,SG7050EBN光模块晶振 尺寸图

SG7050EBN

X1G0045110002,爱普生LV-PECL晶振,SG7050EBN光模块晶振

差分晶振产品特性：

低相位抖动：65fs类型*2.

频率范围：100 MHz至175 MHz

电源电压：2.5V类型/2.5V3.3 V型

功能：输出启用（OE）

外形尺寸：7.0×5.0×1.5 mm

输出：LV-PECL

SG7050EBN 1

编码 品牌 型号 频率 尺寸 输出方式 电源电压 工作温度
X1G0045110001 爱普生晶振 SG7050EBN 156.250000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110002 爱普生晶振 SG7050EBN 125.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110003 爱普生晶振 SG7050EBN 100.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110004 爱普生晶振 SG7050EBN 106.250000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110005 爱普生晶振 SG7050EBN 122.880000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0045110007 爱普生晶振 SG7050EBN 150.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110008 爱普生晶振 SG7050EBN 155.520000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110011 爱普生晶振 SG7050EBN 114.285000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 3.135 to 3.465 V -40 to 85 °C
X1G0045110012 爱普生晶振 SG7050EBN 156.253906 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0045110601 爱普生晶振 SG7050EBN 156.250000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0045110602 爱普生晶振 SG7050EBN 125.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1G0045110603 爱普生晶振 SG7050EBN 100.000000 MHz 7.00 x 5.00 x 1.70 mm LV-PECL 2.375 to 2.625 V -40 to 85 °C
X1M0003010002 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010003 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010004 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010006 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010007 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010008 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010009 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010010 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010011 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010012 爱普生晶振 XG-2102CA 133.330000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010013 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010014 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010015 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010016 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010017 爱普生晶振 XG-2102CA 133.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010019 爱普生晶振 XG-2102CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010020 爱普生晶振 XG-2102CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010021 爱普生晶振 XG-2102CA 106.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010022 爱普生晶振 XG-2102CA 250.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010023 爱普生晶振 XG-2102CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010025 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010026 爱普生晶振 XG-2102CA 245.760000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010027 爱普生晶振 XG-2102CA 250.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010029 爱普生晶振 XG-2102CA 156.257812 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010030 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0003010031 爱普生晶振 XG-2102CA 148.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010032 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010033 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010035 爱普生晶振 XG-2102CA 199.860000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010036 爱普生晶振 XG-2102CA 200.140000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010037 爱普生晶振 XG-2102CA 216.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0003010039 爱普生晶振 XG-2102CA 263.157900 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010040 爱普生晶振 XG-2102CA 622.080000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010041 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010042 爱普生晶振 XG-2102CA 103.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010043 爱普生晶振 XG-2102CA 105.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010044 爱普生晶振 XG-2102CA 161.132800 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010045 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010046 爱普生晶振 XG-2102CA 644.531250 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003010047 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0003010048 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -20 to 70 °C
X1M0003010049 爱普生晶振 XG-2102CA 156.255000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010050 爱普生晶振 XG-2102CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010051 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010052 爱普生晶振 XG-2102CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003010053 爱普生晶振 XG-2102CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V 0 to 70 °C
X1M0003210000 爱普生晶振 XG-2103CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
X1M0003210001 爱普生晶振 XG-2103CA 132.812500 MHz 7.00 x 5.00 x 1.20 mm LV-PECL 2.970 to 3.630 V -5 to 85 °C
6
