瑞萨HCSL振荡器,XPN536156.250000I,6G无线通信晶振,XP有源晶振

瑞萨HCSL振荡器,XPN536156.250000I,6G无线通信晶振,XP有源晶振，尺寸5.0x3.2mm，频率156.25MHZ，输出逻辑HCSL，Renesas Oscillator，HCSL输出差分晶振，5032mm差分晶振，有源差分晶振，贴片差分晶振，低抖动差分晶振，HCSL差分晶体振荡器，低相位差分晶振，低噪声差分振荡器，低电流差分晶振，低功耗差分振荡器，高性能差分晶振，6G无线通信差分晶振，光通讯差分晶振，仪器设备差分晶振，测试设备差分晶振，网络设备差分晶振，具备超高的可靠性能以及稳定性能。

XP设备是基于超低相位噪声石英的PLL支持大范围频率和输出的振荡器接口类型。这些设备设计为在三不同的电源，有三种封装尺寸具有几种引脚输出配置，以及三种可操作温度范围。XP设备可以编程以生成输出频率从15MHz到2100MHz，分辨率低至1Hz精度。该系列设备的配置功能允许快速交付样品和大批量生产订单。瑞萨HCSL振荡器,XPN536156.250000I,6G无线通信晶振,XP有源晶振.

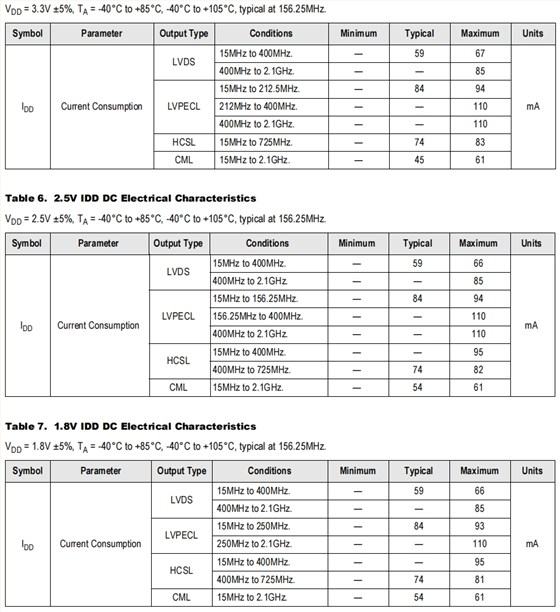

瑞萨HCSL振荡器,XPN536156.250000I,6G无线通信晶振,XP有源晶振 参数表

XP cans

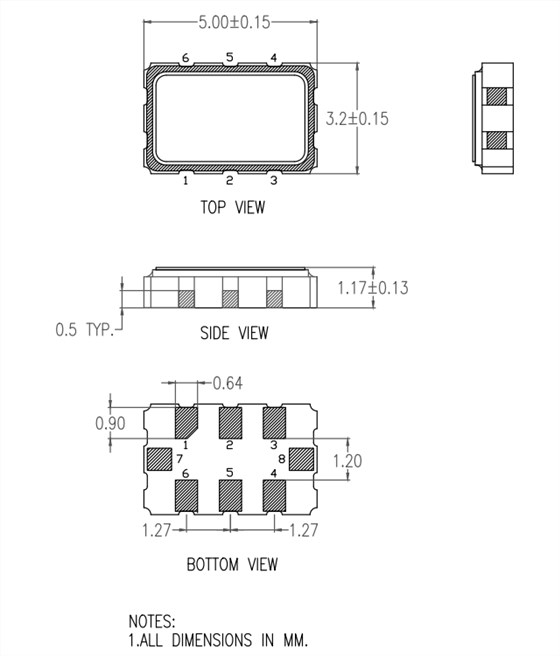

瑞萨HCSL振荡器,XPN536156.250000I,6G无线通信晶振,XP有源晶振尺寸图

OSC晶振产品特性：

输出类型：LVDS、LVPECL、CML

频率范围：15MHz至2100MHZ

输出类型：HCSL

频率范围：15MHz至725MHz

电源电压选项：1.8V、2.5V或3.3V

相位抖动（12kHz至20MHz）：典型值为120fs

程序包选项：

7.0×5.0×1.7毫米

5.0×3.2×1.17毫米

3.2×2.5×1.07毫米

工作温度和频率稳定性：

-40°C至+85°C，±25ppm

-40°C至+105°C，±50ppm

更多相关Renesas晶振型号

Mfr Part #	Mfr	Description	Series	Frequency	Output	Voltage - Supply	Frequency Stability
XPP336100.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	100 MHz	LVPECL	3.3V	±25ppm
XPL536800.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	800 MHz	LVDS	3.3V	±25ppm
XPP736161.132812I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	161.132812 MHz	LVPECL	3.3V	±25ppm
XPL526200.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	200 MHz	LVDS	2.5V	±25ppm
XPP736125.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	125 MHz	LVPECL	3.3V	±25ppm
XPC736174.703000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	174.703 MHz	CML	3.3V	±25ppm
XPL316133.333333I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	133.333333 MHz	LVDS	1.8V	±25ppm
XPC316800.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	800 MHz	CML	1.8V	±25ppm
XPC336212.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	212.5 MHz	CML	3.3V	±25ppm
XPL336016.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	16 MHz	LVDS	3.3V	±25ppm
XPP316156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	LVPECL	1.8V	±25ppm
XPL536C10.937500I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	1.2109375 GHz	LVDS	3.3V	±25ppm
XPP736212.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	212.5 MHz	LVPECL	3.3V	±25ppm
XPL736156.250000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	156.25 MHz	LVDS	3.3V	±25ppm
XPL536148.500000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	148.5 MHz	LVDS	3.3V	±25ppm
XPP736156.253906I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	156.253906 MHz	LVPECL	3.3V	±25ppm
XPC536020.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	20 MHz	CML	3.3V	±25ppm
XPC736174.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	174 MHz	CML	3.3V	±25ppm
XPP736175.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	175 MHz	LVPECL	3.3V	±25ppm
XPL736148.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	148.5 MHz	LVDS	3.3V	±25ppm
XPL336148.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	148.5 MHz	LVDS	3.3V	±25ppm
XPL336156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	LVDS	3.3V	±25ppm
XPL336125.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	125 MHz	LVDS	3.3V	±25ppm
XPL316050.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	50 MHz	LVDS	1.8V	±25ppm
XPP736100.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	100 MHz	LVPECL	3.3V	±25ppm
XPC736625.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	625 MHz	CML	3.3V	±25ppm
XPP736106.250000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	106.25 MHz	LVPECL	3.3V	±25ppm
XPL316032.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	32 MHz	LVDS	1.8V	±25ppm
XPL516156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	156.25 MHz	LVDS	1.8V	±25ppm
XPP735156.250005I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	156.250005 MHz	LVPECL	3.3V	±50ppm
XPP736122.880000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	122.88 MHz	LVPECL	3.3V	±25ppm
XPN336078.125000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	78.125 MHz	HCSL	3.3V	±25ppm
XPP736124.992000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	124.992 MHz	LVPECL	3.3V	±25ppm
XPL336100.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	100 MHz	LVDS	3.3V	±25ppm
XPL736125.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	125 MHz	LVDS	3.3V	±25ppm
XPC316156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	CML	1.8V	±25ppm
XPL536148.163548I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	148.163548 MHz	LVDS	3.3V	±25ppm
XPL736300.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	300 MHz	LVDS	3.3V	±25ppm
XPL316156.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156 MHz	LVDS	1.8V	±25ppm
XPL326200.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	200 MHz	LVDS	2.5V	±25ppm
XPP736200.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	200 MHz	LVPECL	3.3V	±25ppm
XPL526312.500000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	312.5 MHz	LVDS	2.5V	±25ppm
XPL336040.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	40 MHz	LVDS	3.3V	±25ppm
XPP526156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	156.25 MHz	LVPECL	2.5V	±25ppm
XPN326312.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	312.5 MHz	HCSL	2.5V	±25ppm
XPC736100.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	100 MHz	CML	3.3V	±25ppm
XPN336025.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	25 MHz	HCSL	3.3V	±25ppm
XPM736625.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	625 MHz	-	3.3V	±25ppm
XPN336100.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	100 MHz	HCSL	3.3V	±25ppm
XPL736800.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	800 MHz	LVDS	3.3V	±25ppm
XPP726212.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	212.5 MHz	LVPECL	2.5V	±25ppm
XPL536070.656000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	70.656 MHz	LVDS	3.3V	±25ppm
XPP736250.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	250 MHz	LVPECL	3.3V	±25ppm
XPP726312.510900I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	312.5109 MHz	LVPECL	2.5V	±25ppm
XPP736915.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	915 MHz	LVPECL	3.3V	±25ppm
XPP336830.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	830 MHz	LVPECL	3.3V	±25ppm
XPN336156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	HCSL	3.3V	±25ppm
XPN316161.132812I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	161.132812 MHz	HCSL	1.8V	±25ppm
XPP336156.253906I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.253906 MHz	LVPECL	3.3V	±25ppm
XPL316033.333333I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	33.333333 MHz	LVDS	1.8V	±25ppm
XPN536156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	156.25 MHz	HCSL	3.3V	±25ppm
XPP336250.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	250 MHz	LVPECL	3.3V	±25ppm
XPN316100.000000I	Renesas Oscillator	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	100 MHz	HCSL	1.8V	±25ppm
XPL316080.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	80 MHz	LVDS	1.8V	±25ppm
XPL336200.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	200 MHz	LVDS	3.3V	±25ppm
XPL336644.531250I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	644.53125 MHz	LVDS	3.3V	±25ppm
XPL326156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	LVDS	2.5V	±25ppm
XPP736161.132580I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	161.13258 MHz	LVPECL	3.3V	±25ppm
XPP726445.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	445.5 MHz	LVPECL	2.5V	±25ppm
XPL326500.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	500 MHz	LVDS	2.5V	±25ppm
XPL336830.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	830 MHz	LVDS	3.3V	±25ppm
XPP726160.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	160 MHz	LVPECL	2.5V	±25ppm
XPL516625.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	625 MHz	LVDS	1.8V	±25ppm
XPL316322.265625I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	322.265625 MHz	LVDS	1.8V	±25ppm
XPP336312.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	312.5 MHz	LVPECL	3.3V	±25ppm
XPC336156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	CML	3.3V	±25ppm
XPN716156.253906I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	156.253906 MHz	HCSL	1.8V	±25ppm
XPL526156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	156.25 MHz	LVDS	2.5V	±25ppm
XPP516625.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	625 MHz	LVPECL	1.8V	±25ppm
XPL726B00.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	1.1 GHz	LVDS	2.5V	±25ppm
XPL336049.152000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	49.152 MHz	LVDS	3.3V	±25ppm
XPP336050.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	50 MHz	LVPECL	3.3V	±25ppm
XPL316026.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	26 MHz	LVDS	1.8V	±25ppm
XPL736016.254000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	16.254 MHz	LVDS	3.3V	±25ppm
XPP336207.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	207.5 MHz	LVPECL	3.3V	±25ppm
XPL336070.656000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	70.656 MHz	LVDS	3.3V	±25ppm
XPP726312.500000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	312.5 MHz	LVPECL	2.5V	±25ppm
XPP336040.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	40 MHz	LVPECL	3.3V	±25ppm
XPL726C00.000000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	1.2 GHz	LVDS	2.5V	±25ppm
XPP336A00.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	1 GHz	LVPECL	3.3V	±25ppm
XPC536156.250000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	156.25 MHz	CML	3.3V	±25ppm
XPL536200.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	200 MHz	LVDS	3.3V	±25ppm
XPL326161.132800I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	161.1328 MHz	LVDS	2.5V	±25ppm
XPL336160.000000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	160 MHz	LVDS	3.3V	±25ppm
XPN326156.250000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	156.25 MHz	HCSL	2.5V	±25ppm
XPL336830.078125I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	830.078125 MHz	LVDS	3.3V	±25ppm
XPL336312.500000I	Renesas晶振	CLCC 3.20X2.50X0.95 MM, 2.10MM P	XP	312.5 MHz	LVDS	3.3V	±25ppm
XPP736159.375000I	Renesas晶振	CLCC 7.00X5.00X1.70 MM, 2.54MM P	XP	159.375 MHz	LVPECL	3.3V	±25ppm
XPL526027.000000I	Renesas晶振	CLCC 5.00X3.20X1.10 MM, 1.27MM P	XP	27 MHz	LVDS	2.5V	±25ppm
