XLP730050.000000X/IDT有源晶振/6GWIFI应用晶振，尺寸7.0*5.0mm，频率50MHZ，输出逻辑LVPECL，IDT差分振荡器，美国IDT晶振，艾迪悌有源晶振，LVPECL差分晶振，六脚贴片差分晶振，OSC差分晶振，XO时钟晶体振荡器，LVPECL差分输出晶振，差分晶体振荡器，SMD差分晶振，7050mm差分晶振，低抖动差分晶振，低电压差分振荡器，低功耗差分晶振，6G网络设备差分晶振，仪器设备差分晶振，6G光模块差分晶振，6GWIFI应用晶振，无线网络差分振荡器，有源差分晶振，贴片型差分振荡器，具有低电压低功耗的特点。
XLP是一个LVPECL差分晶体振荡器，具有860fs典型的相位抖动，超过12kHz到20MHz的带宽。IDT XLP系列晶体振荡器的频率范围从0.750.50MHz到1350MHz，采用了一系列专有的asic，重点关注降噪技术。XLP730050.000000X/IDT有源晶振/6GWIFI应用晶振.
XLP730050.000000X/IDT有源晶振/6GWIFI应用晶振参数表
Parameter
Symbol
Condition
Min
Typ
Max
Units
Output Frequency Range
FOUTR
0.750
1350
MHz
Frequency Stability
Temperature = -20°C to +70°C
±20
±100
ppm
Temperature = -40°C to +85°C
±25
±100
ppm
Aging (1styear)
Ta = 25°C
3
Aging (10 years)
Ta = 25°C
10
Output Load
TOVDD- 2.0V
50
Ohms
Start-up Time
TST
Output valid time after VDD meets
minimum specified level
10
ms
Output Rise Time
20% to 80% VPP
400
ps
Output Fall Time
80% to 20% VPP
400
ps
Output Clock Duty Cycle
TDTCY
50%VP-P
45
55
%
Output Enable/ Disable Time
TOE
100
ns
Period Jitter, RMS
JPER
Frequency = 156.25MHz
5.80
ps
Random Jitter
RJ
Frequency = 156.25MHz
Per MJSQ spec (Methodologies for
Jitter and Signal Quality specifications)
1.29
ps
Deterministic Jitter
DJ
9.3
ps
Total Jitter
TJ
27.7
ps
Phase Jitter (12kHz – 20MHz)
φJITTER
Common Frequencies
860
fs
Phase Noise Performance
Frequency = 156.25MHz
φNOISE
100Hz of Carrier
-80
dBc/Hz
1kHz of Carrier
-115
dBc/Hz
10kHz of Carrier
-117
dBc/Hz
100kHz of Carrier
-121
dBc/Hz
1MHz of Carrier
-142
dBc/Hz
10MHz of Carrier
-150
dBc/Hz

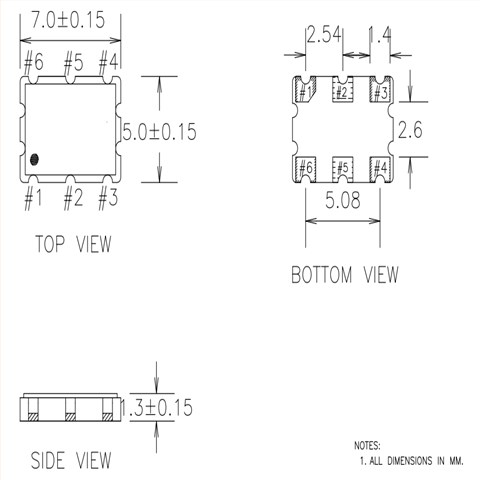

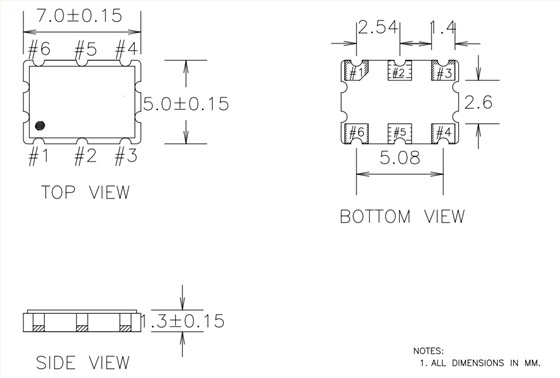

XLP730050.000000X/IDT有源晶振/6GWIFI应用晶振尺寸图
有源晶振产品特性：
频率范围：0.750至1350 MHz
输出类型：LVPECL
频率稳定：± 20ppm，± 25ppm，± 50ppm，或± 100 ppm
电源电压：2.5V或3.3V相位抖动（1.875兆赫至20兆赫）：225fs
典型相位抖动（12 kHz至20兆赫）：860fs
典型的封装选项：5.0毫米x3.2毫米x1.2毫米（JS6）7.0毫米x5.0mmx1.3毫米（JU6）
工作温度：-20°C至+70°C或-40°C至+85°C
更多相关美国IDT晶振型号
| 原厂代码 | 品牌 | 参数 | 型号 | 类型 | 频率 | 输出 | 电压 | 频率稳定度 |
| XLL520085.000000X | IDT振荡器 | OSCILLATOR XO 85.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | XO (Standard) | 85MHz | LVDS | 2.5V | ±100ppm |
| XLL525156.250000X | IDT振荡器 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC52 | XO (Standard) | 156.25MHz | LVDS | 2.5V | ±50ppm |
| XLL525148.500000X | IDT振荡器 | OSCILLATOR XO 148.5MHZ LVDS SMD | XPRESSO™ FXO-LC52 | XO (Standard) | 148.5MHz | LVDS | 2.5V | ±50ppm |
| XLL530074.250000X | IDT振荡器 | OSCILLATOR XO 74.25MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 74.25MHz | LVDS | 3.3V | ±100ppm |
| XLL535180.000000X | IDT振荡器 | OSC XO 180.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 180MHz | LVDS | 3.3V | ±50ppm |
| XLL725156.250000X | IDT振荡器 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 156.25MHz | LVDS | 2.5V | ±50ppm |
| XLL725100.000000X | IDT振荡器 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 100MHz | LVDS | 2.5V | ±50ppm |
| XLL725080.000000X | IDT振荡器 | OSCILLATOR XO 80.000MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 80MHz | LVDS | 2.5V | ±50ppm |
| XLL730100.000000X | IDT振荡器 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 100MHz | LVDS | 3.3V | ±100ppm |
| XLL730050.000000X | IDT振荡器 | OSCILLATOR XO 50.000MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 50MHz | LVDS | 3.3V | ±100ppm |
| XLL730020.000000X | IDT振荡器 | OSCILLATOR XO 20.000MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 20MHz | LVDS | 3.3V | ±100ppm |
| XLL735170.000000X | IDT振荡器 | OSC XO 170.000MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 170MHz | LVDS | 3.3V | ±50ppm |
| XLL735166.666700X | IDT振荡器 | OSC XO 166.6667MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 166.6667MHz | LVDS | 3.3V | ±50ppm |
| XLL735135.000000X | IDT振荡器 | OSC XO 135.000MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 135MHz | LVDS | 3.3V | ±50ppm |
| XLL735125.000000X | IDT振荡器 | OSC XO 125.000MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 125MHz | LVDS | 3.3V | ±50ppm |
| XLL735114.285000X | IDT振荡器 | OSC XO 114.285MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 114.285MHz | LVDS | 3.3V | ±50ppm |
| XLL735040.000000X | IDT振荡器 | OSCILLATOR XO 40.000MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 40MHz | LVDS | 3.3V | ±50ppm |
| XLL735027.000000X | IDT振荡器 | OSCILLATOR XO 27.000MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 27MHz | LVDS | 3.3V | ±50ppm |
| XLL735012.000000X | IDT振荡器 | OSCILLATOR XO 12.000MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 12MHz | LVDS | 3.3V | ±50ppm |
| XLP530125.000000X | IDT振荡器 | OSC XO 125.000MHZ LVPECL SMD | XPRESSO™ FXO-PC53 | XO (Standard) | 125MHz | LVPECL | 3.3V | ±100ppm |
| XLP725156.250000X | IDT振荡器 | OSC XO 156.25MHZ LVPECL SMD | XPRESSO™ FXO-PC72 | XO (Standard) | 156.25MHz | LVPECL | 2.5V | ±50ppm |
| XLP725125.000000X | IDT振荡器 | OSC XO 125.000MHZ LVPECL SMD | XPRESSO™ FXO-PC72 | XO (Standard) | 125MHz | LVPECL | 2.5V | ±50ppm |
| XLP725100.000000X | IDT振荡器 | OSC XO 100.000MHZ LVPECL SMD | XPRESSO™ FXO-PC72 | XO (Standard) | 100MHz | LVPECL | 2.5V | ±50ppm |
| XLP730161.132812X | IDT振荡器 | OSC XO 161.132812MHZ LVPECL SMD | XPRESSO™ FXO-PC73 | XO (Standard) | 161.132812MHz | LVPECL | 3.3V | ±100ppm |
| XLP730050.000000X | IDT振荡器 | OSC XO 50.000MHZ LVPECL SMD | XPRESSO™ FXO-PC73 | XO (Standard) | 50MHz | LVPECL | 3.3V | ±100ppm |
| XLP735160.000000X | IDT振荡器 | OSC XO 160.000MHZ LVPECL SMD | XPRESSO™ FXO-PC73 | XO (Standard) | 160MHz | LVPECL | 3.3V | ±50ppm |
| XLP735150.000000X | IDT振荡器 | OSC XO 150.000MHZ LVPECL SMD | XPRESSO™ FXO-PC73 | XO (Standard) | 150MHz | LVPECL | 3.3V | ±50ppm |
| XLP735133.000000X | IDT振荡器 | OSC XO 133.000MHZ LVPECL SMD | XPRESSO™ FXO-PC73 | XO (Standard) | 133MHz | LVPECL | 3.3V | ±50ppm |
| XLP735125.000000X | IDT振荡器 | OSC XO 125.000MHZ LVPECL SMD | XPRESSO™ FXO-PC73 | XO (Standard) | 125MHz | LVPECL | 3.3V | ±50ppm |
| XLP735096.000000X | IDT振荡器 | OSC XO 96.000MHZ LVPECL SMD | XPRESSO™ FXO-PC73 | XO (Standard) | 96MHz | LVPECL | 3.3V | ±50ppm |
| XLP735060.000000X | IDT振荡器 | OSC XO 60.000MHZ LVPECL SMD | XPRESSO™ FXO-PC73 | XO (Standard) | 60MHz | LVPECL | 3.3V | ±50ppm |
| XLP735025.000000X | IDT振荡器 | OSC XO 25.000MHZ LVPECL SMD | XPRESSO™ FXO-PC73 | XO (Standard) | 25MHz | LVPECL | 3.3V | ±50ppm |
| XLL52V074.175824X | IDT振荡器 | OSC VCXO 74.175824MHZ LVDS SMD | XPRESSO™ FVXO-LC52 | VCXO | 74.175824MHz | LVDS | 2.5V | - |
| XLL52V644.531250X | IDT振荡器 | OSC VCXO 644.53125MHZ LVDS SMD | XPRESSO™ FVXO-LC52 | VCXO | 644.53125MHz | LVDS | 2.5V | - |
| XLL52V160.000000I | IDT振荡器 | OSC VCXO 160.000MHZ LVDS SMD | XPRESSO™ FVXO-LC52 | VCXO | 160MHz | LVDS | 2.5V | - |
| XLL52V025.000000I | IDT振荡器 | OSC VCXO 25.000MHZ LVDS SMD | XPRESSO™ FVXO-LC52 | VCXO | 25MHz | LVDS | 2.5V | - |
| XLL73V500.000000X | IDT振荡器 | OSC VCXO 500.000MHZ LVDS SMD | XPRESSO™ FVXO-LC73 | VCXO | 500MHz | LVDS | 3.3V | - |
| XLL73V316.000000X | IDT振荡器 | OSC VCXO 316.000MHZ LVDS SMD | XPRESSO™ FVXO-LC73 | VCXO | 316MHz | LVDS | 3.3V | - |
| XLL73V148.351648I | IDT振荡器 | OSC VCXO 148.351648MHZ LVDS SMD | XPRESSO™ FVXO-LC73 | VCXO | 148.351648MHz | LVDS | 3.3V | - |
| XLL73V096.000000I | IDT振荡器 | OSC VCXO 96.000MHZ LVDS SMD | XPRESSO™ FVXO-LC73 | VCXO | 96MHz | LVDS | 3.3V | - |
| XLL73V090.000000I | IDT振荡器 | OSC VCXO 90.000MHZ LVDS SMD | XPRESSO™ FVXO-LC73 | VCXO | 90MHz | LVDS | 3.3V | - |
| XLL73V060.000000I | IDT振荡器 | OSC VCXO 60.000MHZ LVDS SMD | XPRESSO™ FVXO-LC73 | VCXO | 60MHz | LVDS | 3.3V | - |
| XLP73V768.000000X | IDT振荡器 | OSC VCXO 768.000MHZ LVPECL SMD | XPRESSO™ FVXO-PC73 | VCXO | 768MHz | LVPECL | 3.3V | - |
| XLP73V560.400000X | IDT振荡器 | OSC VCXO 560.4MHZ LVPECL SMD | XPRESSO™ FVXO-PC73 | VCXO | 560.4MHz | LVPECL | 3.3V | - |
| XLP73V491.520000X | IDT振荡器 | OSC VCXO 491.52MHZ LVPECL SMD | XPRESSO™ FVXO-PC73 | VCXO | 491.52MHz | LVPECL | 3.3V | - |
| XLP73V368.640000X | IDT振荡器 | OSC VCXO 368.64MHZ LVPECL SMD | XPRESSO™ FVXO-PC73 | VCXO | 368.64MHz | LVPECL | 3.3V | - |
| XLP73V161.132800I | IDT振荡器 | OSC VCXO 161.1328MHZ LVPECL SMD | XPRESSO™ FVXO-PC73 | VCXO | 161.1328MHz | LVPECL | 3.3V | - |
| XLP73V100.000000I | IDT振荡器 | OSC VCXO 100.000MHZ LVPECL SMD | XPRESSO™ FVXO-PC73 | VCXO | 100MHz | LVPECL | 3.3V | - |
| XLP73V076.800000I | IDT振荡器 | OSC VCXO 76.80MHZ LVPECL SMD | XPRESSO™ FVXO-PC73 | VCXO | 76.8MHz | LVPECL | 3.3V | - |
| XLL525200.000000I | IDT振荡器 | OSC XO 200.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | XO (Standard) | 200MHz | LVDS | 2.5V | ±50ppm |
| XLL525100.000000I | IDT振荡器 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | XO (Standard) | 100MHz | LVDS | 2.5V | ±50ppm |
| XLL528125.000000X | IDT振荡器 | OSC XO 125.000MHZ LVDS SMD | XPRESSO™ FXO-LC52 | XO (Standard) | 125MHz | LVDS | 2.5V | ±20ppm |
| XLL530300.000000X | IDT振荡器 | OSC XO 300.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 300MHz | LVDS | 3.3V | ±100ppm |
| XLL530156.250000I | IDT振荡器 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 156.25MHz | LVDS | 3.3V | ±100ppm |
| XLL535A90.000000X | IDT振荡器 | OSCILLATOR XO 1.09GHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 1.09GHz | LVDS | 3.3V | ±50ppm |
| XLL535210.000000X | 艾迪悌晶振 | OSC XO 210.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 210MHz | LVDS | 3.3V | ±50ppm |
| XLL535160.000000I | IDT振荡器 | OSC XO 160.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 160MHz | LVDS | 3.3V | ±50ppm |
| XLL535156.250000I | IDT振荡器 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 156.25MHz | LVDS | 3.3V | ±50ppm |
| XLL535020.000000I | IDT振荡器 | OSCILLATOR XO 20.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 20MHz | LVDS | 3.3V | ±50ppm |
| XLL536156.250000X | IDT振荡器 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 156.25MHz | LVDS | 3.3V | ±25ppm |
| XLL536100.000000X | IDT振荡器 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 100MHz | LVDS | 3.3V | ±25ppm |
| XLL536050.000000X | IDT振荡器 | OSCILLATOR XO 50.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 50MHz | LVDS | 3.3V | ±25ppm |
| XLL538156.250000X | IDT振荡器 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 156.25MHz | LVDS | 3.3V | ±20ppm |
| XLL538100.000000X | IDT振荡器 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 100MHz | LVDS | 3.3V | ±20ppm |
| XLL538050.000000X | IDT振荡器 | OSCILLATOR XO 50.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 50MHz | LVDS | 3.3V | ±20ppm |
| XLL538001.000000X | IDT振荡器 | OSCILLATOR XO 1.000MHZ LVDS SMD | XPRESSO™ FXO-LC53 | XO (Standard) | 1MHz | LVDS | 3.3V | ±20ppm |
| XLL720375.000000X | IDT振荡器 | OSC XO 375.000MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 375MHz | LVDS | 2.5V | ±100ppm |
| XLL720156.250000I | IDT振荡器 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 156.25MHz | LVDS | 2.5V | ±100ppm |
| XLL720137.500000I | IDT振荡器 | OSCILLATOR XO 137.5MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 137.5MHz | LVDS | 2.5V | ±100ppm |
| XLL725312.500000X | IDT振荡器 | OSCILLATOR XO 312.5MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 312.5MHz | LVDS | 2.5V | ±50ppm |
| XLL725156.250000I | IDT振荡器 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 156.25MHz | LVDS | 2.5V | ±50ppm |
| XLL725150.000000I | IDT振荡器 | OSC XO 150.000MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 150MHz | LVDS | 2.5V | ±50ppm |
| XLL725125.000000I | IDT振荡器 | OSC XO 125.000MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 125MHz | LVDS | 2.5V | ±50ppm |
| XLL725120.000000I | IDT振荡器 | OSC XO 120.000MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 120MHz | LVDS | 2.5V | ±50ppm |
| XLL725108.000000I | IDT振荡器 | OSC XO 108.000MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 108MHz | LVDS | 2.5V | ±50ppm |
| XLL725100.000000I | IDT振荡器 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 100MHz | LVDS | 2.5V | ±50ppm |
| XLL725080.000000I | IDT振荡器 | OSCILLATOR XO 80.000MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 80MHz | LVDS | 2.5V | ±50ppm |
| XLL725074.250000I | IDT振荡器 | OSCILLATOR XO 74.25MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 74.25MHz | LVDS | 2.5V | ±50ppm |
| XLL726156.250000X | IDT振荡器 | OSCILLATOR XO 156.25MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 156.25MHz | LVDS | 2.5V | ±25ppm |
| XLL726144.000000X | IDT振荡器 | OSC XO 144.000MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 144MHz | LVDS | 2.5V | ±25ppm |
| XLL726135.000000X | IDT振荡器 | OSC XO 135.000MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 135MHz | LVDS | 2.5V | ±25ppm |
| XLL728100.000000X | IDT振荡器 | OSC XO 100.000MHZ LVDS SMD | XPRESSO™ FXO-LC72 | XO (Standard) | 100MHz | LVDS | 2.5V | ±20ppm |
| XLL730195.312500I | IDT振荡器 | OSC XO 195.3125MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 195.3125MHz | LVDS | 3.3V | ±100ppm |
| XLL735A00.000000X | IDT振荡器 | OSCILLATOR XO 1.000GHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 1GHz | LVDS | 3.3V | ±50ppm |
| XLL735500.000000X | IDT振荡器 | OSC XO 500.000MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 500MHz | LVDS | 3.3V | ±50ppm |
| XLL735360.000000X | IDT振荡器 | OSC XO 360.000MHZ LVDS SMD | XPRESSO™ FXO-LC73 | XO (Standard) | 360MHz | LVDS | 3.3V | ±50ppm |
