Si550差分压控晶振,550AE19M2000DGR,6G无线网络晶振,Skyworks振荡器

Si550差分压控晶振,550AE19M2000DGR,6G无线网络晶振,Skyworks振荡器Si550差分压控晶振,550AE19M2000DGR,6G无线网络晶振,Skyworks振荡器

产品简介

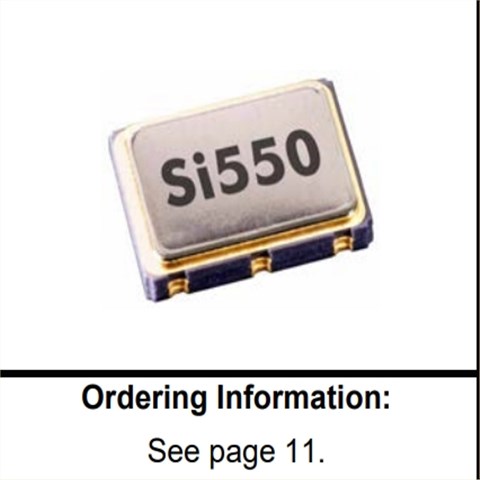

Si550差分压控晶振,550AE19M2000DGR,6G无线网络晶振,Skyworks振荡器，尺寸7.0x5.0mm，频率19.2MHZ，电压3.3V，输出逻辑LVPECL，LVPECL差分晶振，有源差分振荡器，压控差分晶振，VCXO压控晶体振荡器，贴片有源晶振，7050mm差分晶体振荡器，OSC差分晶振，六脚贴片差分晶振，低功耗差分晶振，低抖动差分晶振，6G无线网络差分晶振，6G电信差分晶振，测试测量差分晶振，仪器设备晶振，路由器差分晶振，高性能差分晶振，低相位差分晶振，低损耗差分晶振，低功耗差分晶振，低电压差分晶振，具有低电压低功耗的特点.

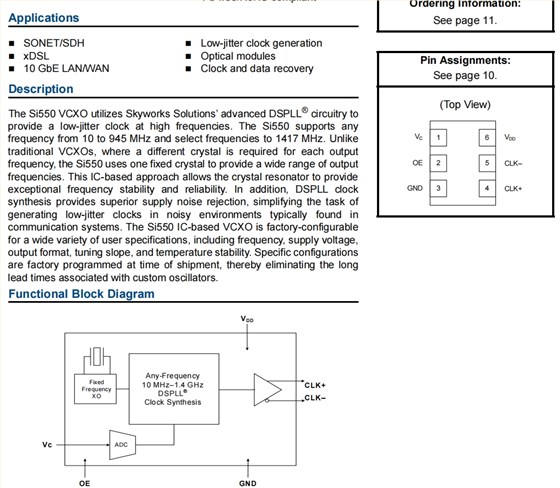

Si550 VCXO压控晶振利用Skyworks Solutions的先进DSPLL®电路在高频下提供低抖动时钟。Si550支持任何频率从10到945MHz，并选择频率到1417MHz。不像传统的VCXO，其中每个输出需要不同的晶体频率，Si550使用一个固定晶体来提供宽范围的输出频率。Si550差分压控晶振,550AE19M2000DGR,6G无线网络晶振,Skyworks振荡器.

产品详情

1

Si550差分压控晶振,550AE19M2000DGR,6G无线网络晶振,Skyworks振荡器，尺寸7.0x5.0mm，频率19.2MHZ，电压3.3V，输出逻辑LVPECL，LVPECL差分晶振，有源差分振荡器，压控差分晶振，VCXO压控晶体振荡器，贴片有源晶振，7050mm差分晶体振荡器，OSC差分晶振，六脚贴片差分晶振，低功耗差分晶振，低抖动差分晶振，6G无线网络差分晶振，6G电信差分晶振，测试测量差分晶振，仪器设备晶振，路由器差分晶振，高性能差分晶振，低相位差分晶振，低损耗差分晶振，低功耗差分晶振，低电压差分晶振，具有低电压低功耗的特点.

Si550 VCXO压控晶振利用Skyworks Solutions的先进DSPLL®电路在高频下提供低抖动时钟。Si550支持任何频率从10到945MHz，并选择频率到1417MHz。不像传统的VCXO，其中每个输出需要不同的晶体频率，Si550使用一个固定晶体来提供宽范围的输出频率。Si550差分压控晶振,550AE19M2000DGR,6G无线网络晶振,Skyworks振荡器.2

Si550差分压控晶振,550AE19M2000DGR,6G无线网络晶振,Skyworks振荡器 参数表

Parameter Symbol Test Condition Min Typ Max Units
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
1.8 V option 1.71 1.8 1.89 V
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS


120
108
99
90 		130
117
108
98 		mA
tristate mode 60 75 mA
Output Enable (OE)2 VIH 0.75 x VDD V
VIL 0.5 V
Operating Temperature Range TA –40 85 °C
Parameter Symbol Test Condition Min Typ Max Units
Control Voltage Tuning Slope1,2,3 KV 10 to 90% of VDD




33
45
90
135
180
356




ppm/V
Control Voltage Linearity4 LVC BSL –5 ±1 +5 %
Incremental –10 ±5 +10 %
Modulation Bandwidth BW 9.3 10.0 10.7 kHz
VCInput Impedance ZVC 500 kΩ
Nominal Control Voltage VCNOM @ fO VDD/2 V
Control Voltage Tuning Range VC 0 VDD V
Parameter Symbol Test Condition Min Typ Max Units
Nominal Frequency1,2,3 fO LVDS/CML/LVPECL 10 945 MHz
CMOS 10 160 MHz
Temperature Stability1,4 TA= –40 to +85 ºC –20
–50
–100

+20
+50
+100 		ppm
Absolute Pull Range1,4 APR ±12 ±375 ppm
Aging Frequency drift over first year. ±3 ppm
Frequency drift over 15 year life. ±10
Power up Time5 tOSC 10 ms
3

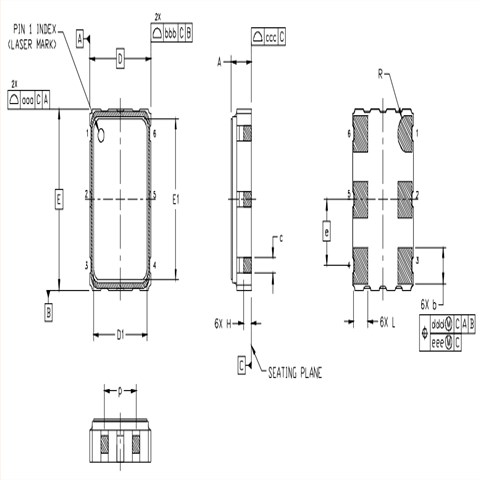

Si550差分压控晶振,550AE19M2000DGR,6G无线网络晶振,Skyworks振荡器尺寸图

Si550

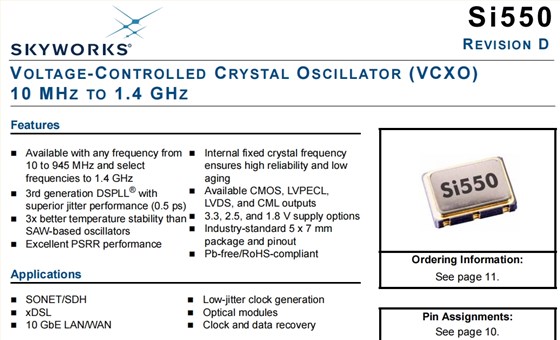

OSC晶振产品特性：

适用于以下任意频率10至945MHz，然后选择频率至1.4GHz

第三代DSPLL®卓越的抖动性能（0.5ps）

温度稳定性比SAW振荡器

出色的PSRR性能

内部固定晶体频率确保高可靠性和低成本变老

可用的CMOS、LVPECL、LVDS和CML输出

3.3、2.5和1.8 V电源选项

行业标准5 x 7mm包装和引脚

无铅/符合RoHS

Si550 1Si550 2

更多相关Skyworks晶振型号

Mfr Part # Mfr Description Series Frequency Output Voltage - Supply Frequency Stability
550AD10M0000DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVPECL Si550 10 MHz LVPECL 3.3V ±50ppm
550AD12M5458DGR Skyworks有源晶振 XTAL OSC VCXO 12.5458MHZ LVPECL Si550 12.5458 MHz LVPECL 3.3V ±50ppm
550AD24M5760DGR Skyworks有源晶振 XTAL OSC VCXO 24.5760MHZ LVPECL Si550 24.576 MHz LVPECL 3.3V ±50ppm
550AD27M0000DGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ LVPECL Si550 27 MHz LVPECL 3.3V ±50ppm
550AD94M0000DGR Skyworks有源晶振 XTAL OSC VCXO 94.0000MHZ LVPECL Si550 94 MHz LVPECL 3.3V ±50ppm
550BD62M5000DGR Skyworks有源晶振 XTAL OSC VCXO 62.5000MHZ LVDS Si550 62.5 MHz LVDS 3.3V ±50ppm
550FD74M2500DGR Skyworks有源晶振 XTAL OSC VCXO 74.2500MHZ LVDS Si550 74.25 MHz LVDS 2.5V ±50ppm
550RC12M2230DGR Skyworks有源晶振 XTAL OSC VCXO 12.2230MHZ LVPECL Si550 12.223 MHz LVPECL 2.5V ±50ppm
550AJ873M515DG Skyworks有源晶振 XTAL OSC VCXO 873.5150MHZ LVPECL Si550 873.515 MHz LVPECL 3.3V ±20ppm
550AJ873M515DGR Skyworks有源晶振 XTAL OSC VCXO 873.5150MHZ LVPECL Si550 873.515 MHz LVPECL 3.3V ±20ppm
550FG125M000DG Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVDS Si550 125 MHz LVDS 2.5V ±20ppm
550FG125M000DGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVDS Si550 125 MHz LVDS 2.5V ±20ppm
550AD10M0000DG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVPECL Si550 10 MHz LVPECL 3.3V ±50ppm
550AD12M5458DG Skyworks有源晶振 XTAL OSC VCXO 12.5458MHZ LVPECL Si550 12.5458 MHz LVPECL 3.3V ±50ppm
550AD24M5760DG Skyworks有源晶振 XTAL OSC VCXO 24.5760MHZ LVPECL Si550 24.576 MHz LVPECL 3.3V ±50ppm
550AD27M0000DG Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ LVPECL Si550 27 MHz LVPECL 3.3V ±50ppm
550AD94M0000DG Skyworks有源晶振 XTAL OSC VCXO 94.0000MHZ LVPECL Si550 94 MHz LVPECL 3.3V ±50ppm
550BD62M5000DG Skyworks有源晶振 XTAL OSC VCXO 62.5000MHZ LVDS Si550 62.5 MHz LVDS 3.3V ±50ppm
550FD74M2500DG Skyworks有源晶振 XTAL OSC VCXO 74.2500MHZ LVDS Si550 74.25 MHz LVDS 2.5V ±50ppm
550RC12M2230DG Skyworks有源晶振 XTAL OSC VCXO 12.2230MHZ LVPECL Si550 12.223 MHz LVPECL 2.5V ±50ppm
550AJ40M0000DGR Skyworks有源晶振 XTAL OSC VCXO 40.0000MHZ LVPECL Si550 40 MHz LVPECL 3.3V ±20ppm
550CA100M000DGR Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ CMOS Si550 100 MHz CMOS 3.3V ±100ppm
550CA24M5760DGR Skyworks有源晶振 XTAL OSC VCXO 24.5760MHZ CMOS Si550 24.576 MHz CMOS 3.3V ±100ppm
550CA25M0000DGR Skyworks有源晶振 XTAL OSC VCXO 25.0000MHZ CMOS Si550 25 MHz CMOS 3.3V ±100ppm
550CA27M0000DGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si550 27 MHz CMOS 3.3V ±100ppm
550CA30M7200DGR Skyworks有源晶振 XTAL OSC VCXO 30.7200MHZ CMOS Si550 30.72 MHz CMOS 3.3V ±100ppm
550CA38M8800DGR Skyworks有源晶振 XTAL OSC VCXO 38.8800MHZ CMOS Si550 38.88 MHz CMOS 3.3V ±100ppm
550CA48M0000DGR Skyworks有源晶振 XTAL OSC VCXO 48.0000MHZ CMOS Si550 48 MHz CMOS 3.3V ±100ppm
550CA49M1250DGR Skyworks有源晶振 XTAL OSC VCXO 49.1250MHZ CMOS Si550 49.125 MHz CMOS 3.3V ±100ppm
550CA49M1520DGR Skyworks有源晶振 XTAL OSC VCXO 49.1520MHZ CMOS Si550 49.152 MHz CMOS 3.3V ±100ppm
550CB25M0000DGR Skyworks有源晶振 XTAL OSC VCXO 25.0000MHZ CMOS Si550 25 MHz CMOS 3.3V ±100ppm
550CK11M2896DGR Skyworks有源晶振 XTAL OSC VCXO 11.2896MHZ CMOS Si550 11.2896 MHz CMOS 3.3V ±100ppm
550CK22M5792DGR Skyworks有源晶振 XTAL OSC VCXO 22.5792MHZ CMOS Si550 22.5792 MHz CMOS 3.3V ±100ppm
550CK24M5760DGR Skyworks有源晶振 XTAL OSC VCXO 24.5760MHZ CMOS Si550 24.576 MHz CMOS 3.3V ±100ppm
550CK29M5000DGR Skyworks有源晶振 XTAL OSC VCXO 29.5000MHZ CMOS Si550 29.5 MHz CMOS 3.3V ±100ppm
550PK13M5600DGR Skyworks有源晶振 XTAL OSC VCXO 13.5600MHZ CMOS Si550 13.56 MHz CMOS 3.3V ±100ppm
550CB24M5760DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si550 24.576 MHz CMOS 3.3V ±100ppm
550AE19M2000DGR Skyworks有源晶振 XTAL OSC VCXO 19.2000MHZ LVPECL Si550 19.2 MHz LVPECL 3.3V ±20ppm
550CC78M3360DGR Skyworks有源晶振 XTAL OSC VCXO 78.3360MHZ CMOS Si550 78.336 MHz CMOS 3.3V ±50ppm
550CC86M0160DGR Skyworks有源晶振 XTAL OSC VCXO 86.0160MHZ CMOS Si550 86.016 MHz CMOS 3.3V ±50ppm
550CD000149DGR Skyworks有源晶振 XTAL OSC VCXO 74.175824MHZ CMOS Si550 74.175824 MHz CMOS 3.3V ±50ppm
550CD000230DGR Skyworks有源晶振 XTAL OSC VCXO 43.04895MHZ CMOS Si550 43.04895 MHz CMOS 3.3V ±50ppm
550CD000231DGR Skyworks有源晶振 XTAL OSC VCXO 77.570634MHZ CMOS Si550 77.570634 MHz CMOS 3.3V ±50ppm
550CD100M000DGR Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ CMOS Si550 100 MHz CMOS 3.3V ±50ppm
550CD108M000DGR Skyworks有源晶振 XTAL OSC VCXO 108.0000MHZ CMOS Si550 108 MHz CMOS 3.3V ±50ppm
550CD10M0000DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si550 10 MHz CMOS 3.3V ±50ppm
550CD120M000DGR Skyworks有源晶振 XTAL OSC VCXO 120.0000MHZ CMOS Si550 120 MHz CMOS 3.3V ±50ppm
550CD122M880DGR Skyworks有源晶振 XTAL OSC VCXO 122.8800MHZ CMOS Si550 122.88 MHz CMOS 3.3V ±50ppm
550CD125M000DGR Skyworks差分晶振 XTAL OSC VCXO 125.0000MHZ CMOS Si550 125 MHz CMOS 3.3V ±50ppm
550CD19M4400DGR Skyworks有源晶振 XTAL OSC VCXO 19.4400MHZ CMOS Si550 19.44 MHz CMOS 3.3V ±50ppm
550CD24M7040DGR Skyworks有源晶振 XTAL OSC VCXO 24.7040MHZ CMOS Si550 24.704 MHz CMOS 3.3V ±50ppm
550CD25M0000DGR Skyworks有源晶振 XTAL OSC VCXO 25.0000MHZ CMOS Si550 25 MHz CMOS 3.3V ±50ppm
550CD27M0000DGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si550 27 MHz CMOS 3.3V ±50ppm
550CD30M7200DGR Skyworks有源晶振 XTAL OSC VCXO 30.7200MHZ CMOS Si550 30.72 MHz CMOS 3.3V ±50ppm
550CD36M8640DGR Skyworks有源晶振 XTAL OSC VCXO 36.8640MHZ CMOS Si550 36.864 MHz CMOS 3.3V ±50ppm
550CD49M5000DGR Skyworks有源晶振 XTAL OSC VCXO 49.5000MHZ CMOS Si550 49.5 MHz CMOS 3.3V ±50ppm
550CD50M0000DGR Skyworks有源晶振 XTAL OSC VCXO 50.0000MHZ CMOS Si550 50 MHz CMOS 3.3V ±50ppm
550CD63M8976DGR Skyworks有源晶振 XTAL OSC VCXO 63.8976MHZ CMOS Si550 63.8976 MHz CMOS 3.3V ±50ppm
550CD64M0000DGR Skyworks有源晶振 XTAL OSC VCXO 64.0000MHZ CMOS Si550 64 MHz CMOS 3.3V ±50ppm
550CD65M5360DGR Skyworks有源晶振 XTAL OSC VCXO 65.5360MHZ CMOS Si550 65.536 MHz CMOS 3.3V ±50ppm
550CD70M6560DGR Skyworks有源晶振 XTAL OSC VCXO 70.6560MHZ CMOS Si550 70.656 MHz CMOS 3.3V ±50ppm
550CD74M1582DGR Skyworks有源晶振 XTAL OSC VCXO 74.1582MHZ CMOS Si550 74.1582 MHz CMOS 3.3V ±50ppm
550CD74M1758DGR Skyworks有源晶振 XTAL OSC VCXO 74.1758MHZ CMOS Si550 74.1758 MHz CMOS 3.3V ±50ppm
550CD77M7600DGR Skyworks有源晶振 XTAL OSC VCXO 77.7600MHZ CMOS Si550 77.76 MHz CMOS 3.3V ±50ppm
550CD80M0000DGR Skyworks有源晶振 XTAL OSC VCXO 80.0000MHZ CMOS Si550 80 MHz CMOS 3.3V ±50ppm
550CD89M6000DGR Skyworks有源晶振 XTAL OSC VCXO 89.6000MHZ CMOS Si550 89.6 MHz CMOS 3.3V ±50ppm
550CF000205DGR Skyworks有源晶振 XTAL OSC VCXO 36.5714285MHZ CMOS Si550 36.5714285 MHz CMOS 3.3V ±50ppm
550CF000256DGR Skyworks有源晶振 XTAL OSC VCXO 27.9127092MHZ CMOS Si550 27.9127092 MHz CMOS 3.3V ±50ppm
550CF100M000DGR Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ CMOS Si550 100 MHz CMOS 3.3V ±50ppm
550CF125M000DGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ CMOS Si550 125 MHz CMOS 3.3V ±50ppm
550CF12M2880DGR Skyworks有源晶振 XTAL OSC VCXO 12.2880MHZ CMOS Si550 12.288 MHz CMOS 3.3V ±50ppm
550CF16M0000DGR Skyworks有源晶振 XTAL OSC VCXO 16.0000MHZ CMOS Si550 16 MHz CMOS 3.3V ±50ppm
550CF20M0000DGR Skyworks有源晶振 XTAL OSC VCXO 20.0000MHZ CMOS Si550 20 MHz CMOS 3.3V ±50ppm
550CF23M5000DGR Skyworks有源晶振 XTAL OSC VCXO 23.5000MHZ CMOS Si550 23.5 MHz CMOS 3.3V ±50ppm
550CF27M0000DGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si550 27 MHz CMOS 3.3V ±50ppm
550CF30M2400DGR Skyworks有源晶振 XTAL OSC VCXO 30.2400MHZ CMOS Si550 30.24 MHz CMOS 3.3V ±50ppm
550CF35M3280DGR Skyworks有源晶振 XTAL OSC VCXO 35.3280MHZ CMOS Si550 35.328 MHz CMOS 3.3V ±50ppm
550CF36M8640DGR Skyworks有源晶振 XTAL OSC VCXO 36.8640MHZ CMOS Si550 36.864 MHz CMOS 3.3V ±50ppm
550CF38M7853DGR Skyworks有源晶振 XTAL OSC VCXO 38.7853MHZ CMOS Si550 38.7853 MHz CMOS 3.3V ±50ppm
550CF65M5360DGR Skyworks有源晶振 XTAL OSC VCXO 65.5360MHZ CMOS Si550 65.536 MHz CMOS 3.3V ±50ppm
550GC10M0000DGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ CMOS Si550 10 MHz CMOS 2.5V ±50ppm
550GC125M000DGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ CMOS Si550 125 MHz CMOS 2.5V ±50ppm
550GC38M7853DGR Skyworks有源晶振 XTAL OSC VCXO 38.7853MHZ CMOS Si550 38.7853 MHz CMOS 2.5V ±50ppm
550GC50M0000DGR Skyworks有源晶振 XTAL OSC VCXO 50.0000MHZ CMOS Si550 50 MHz CMOS 2.5V ±50ppm
550GD27M0000DGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si550 27 MHz CMOS 2.5V ±50ppm
550GD40M0000DGR Skyworks有源晶振 XTAL OSC VCXO 40.0000MHZ CMOS Si550 40 MHz CMOS 2.5V ±50ppm
550GD50M0000DGR Skyworks有源晶振 XTAL OSC VCXO 50.0000MHZ CMOS Si550 50 MHz CMOS 2.5V ±50ppm
550GD60M0000DGR Skyworks有源晶振 XTAL OSC VCXO 60.0000MHZ CMOS Si550 60 MHz CMOS 2.5V ±50ppm
550GF27M0000DGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si550 27 MHz CMOS 2.5V ±50ppm
550GJ54M0000DGR Skyworks有源晶振 XTAL OSC VCXO 54.0000MHZ CMOS Si550 54 MHz CMOS 2.5V ±20ppm
550JD100M000DGR Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ CMOS Si550 100 MHz CMOS 1.8V ±50ppm
550JD37M1250DGR Skyworks有源晶振 XTAL OSC VCXO 37.1250MHZ CMOS Si550 37.125 MHz CMOS 1.8V ±50ppm
550PC20M4800DGR Skyworks有源晶振 XTAL OSC VCXO 20.4800MHZ CMOS Si550 20.48 MHz CMOS 3.3V ±50ppm
550PC27M0000DGR Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si550 27 MHz CMOS 3.3V ±50ppm
550PC40M0075DGR Skyworks有源晶振 XTAL OSC VCXO 40.0075MHZ CMOS Si550 40.0075 MHz CMOS 3.3V ±50ppm
550PC40M0079DGR Skyworks有源晶振 XTAL OSC VCXO 40.0079MHZ CMOS Si550 40.0079 MHz CMOS 3.3V ±50ppm
550PC40M0096DGR Skyworks有源晶振 XTAL OSC VCXO 40.0096MHZ CMOS Si550 40.0096 MHz CMOS 3.3V ±50ppm
550PC74M1760DGR Skyworks有源晶振 XTAL OSC VCXO 74.1760MHZ CMOS Si550 74.176 MHz CMOS 3.3V ±50ppm
550PC74M2500DGR Skyworks有源晶振 XTAL OSC VCXO 74.2500MHZ CMOS Si550 74.25 MHz CMOS 3.3V ±50ppm
550PD10M2400DGR Skyworks有源晶振 XTAL OSC VCXO 10.2400MHZ CMOS Si550 10.24 MHz CMOS 3.3V ±50ppm
550PD122M880DGR Skyworks有源晶振 XTAL OSC VCXO 122.8800MHZ CMOS Si550 122.88 MHz CMOS 3.3V ±50ppm
550PD63M8976DGR Skyworks有源晶振 XTAL OSC VCXO 63.8976MHZ CMOS Si550 63.8976 MHz CMOS 3.3V ±50ppm
550PF19M4400DGR Skyworks有源晶振 XTAL OSC VCXO 19.4400MHZ CMOS Si550 19.44 MHz CMOS 3.3V ±50ppm
550CD100M197DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si550 100.197 MHz CMOS 3.3V ±50ppm
550CD100M196DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED Si550 100.196 MHz CMOS 3.3V ±50ppm
550CD18M4320DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si550 18.432 MHz CMOS 3.3V ±50ppm
550CF70M6560DGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si550 70.656 MHz CMOS 3.3V ±50ppm
550CA100M000DG Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ CMOS Si550 100 MHz CMOS 3.3V ±100ppm
550CA24M5760DG Skyworks有源晶振 XTAL OSC VCXO 24.5760MHZ CMOS Si550 24.576 MHz CMOS 3.3V ±100ppm
550CA25M0000DG Skyworks有源晶振 XTAL OSC VCXO 25.0000MHZ CMOS Si550 25 MHz CMOS 3.3V ±100ppm
550CA27M0000DG Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ CMOS Si550 27 MHz CMOS 3.3V ±100ppm
550CA30M7200DG Skyworks有源晶振 XTAL OSC VCXO 30.7200MHZ CMOS Si550 30.72 MHz CMOS 3.3V ±100ppm
550CA38M8800DG Skyworks有源晶振 XTAL OSC VCXO 38.8800MHZ CMOS Si550 38.88 MHz CMOS 3.3V ±100ppm
550CA48M0000DG Skyworks有源晶振 XTAL OSC VCXO 48.0000MHZ CMOS Si550 48 MHz CMOS 3.3V ±100ppm
550CA49M1250DG Skyworks有源晶振 XTAL OSC VCXO 49.1250MHZ CMOS Si550 49.125 MHz CMOS 3.3V ±100ppm
550CA49M1520DG Skyworks有源晶振 XTAL OSC VCXO 49.1520MHZ CMOS Si550 49.152 MHz CMOS 3.3V ±100ppm
