CO4810-12.000-EXT-T-TR,拉隆小型设备晶振,CO48石英有源晶振
频率：12MHZ
尺寸：7.0×5.0mm
CO4810-12.000-EXT-T-TR,拉隆小型设备晶振,CO48石英有源晶振，尺寸7.0×5.0mm，频率12MHZ，频率稳定性±100ppm，美国Raltron晶振，欧美进口晶振，四脚有源晶振，时钟振荡器，7050mm有源晶振，石英有源晶振，石英晶体振荡器，SMD振荡器，低电压有源晶振，低耗能有源晶振，低相位有源晶振，低相噪有源晶振，低功耗有源晶振，高性能有源晶振，高品质有源晶振，小型设备有源晶振，便携式设备有源晶振，以太网有源晶振，数字视频有源晶振，无线局域网有源晶振，具有高品质低耗能的特点。
OSC晶振产品广泛应用于小型设备，便携式设备，以太网，数字视频，无线局域网等应用领域。CO4810-12.000-EXT-T-TR,拉隆小型设备晶振,CO48石英有源晶振.
CO4810-12.000-EXT-T-TR,拉隆小型设备晶振,CO48石英有源晶振，尺寸7.0×5.0mm，频率12MHZ，频率稳定性±100ppm，美国Raltron晶振，欧美进口晶振，四脚有源晶振，时钟振荡器，7050mm有源晶振，石英有源晶振，石英晶体振荡器，SMD振荡器，低电压有源晶振，低耗能有源晶振，低相位有源晶振，低相噪有源晶振，低功耗有源晶振，高性能有源晶振，高品质有源晶振，小型设备有源晶振，便携式设备有源晶振，以太网有源晶振，数字视频有源晶振，无线局域网有源晶振，具有高品质低耗能的特点。
OSC晶振产品广泛应用于小型设备，便携式设备，以太网，数字视频，无线局域网等应用领域。CO4810-12.000-EXT-T-TR,拉隆小型设备晶振,CO48石英有源晶振.

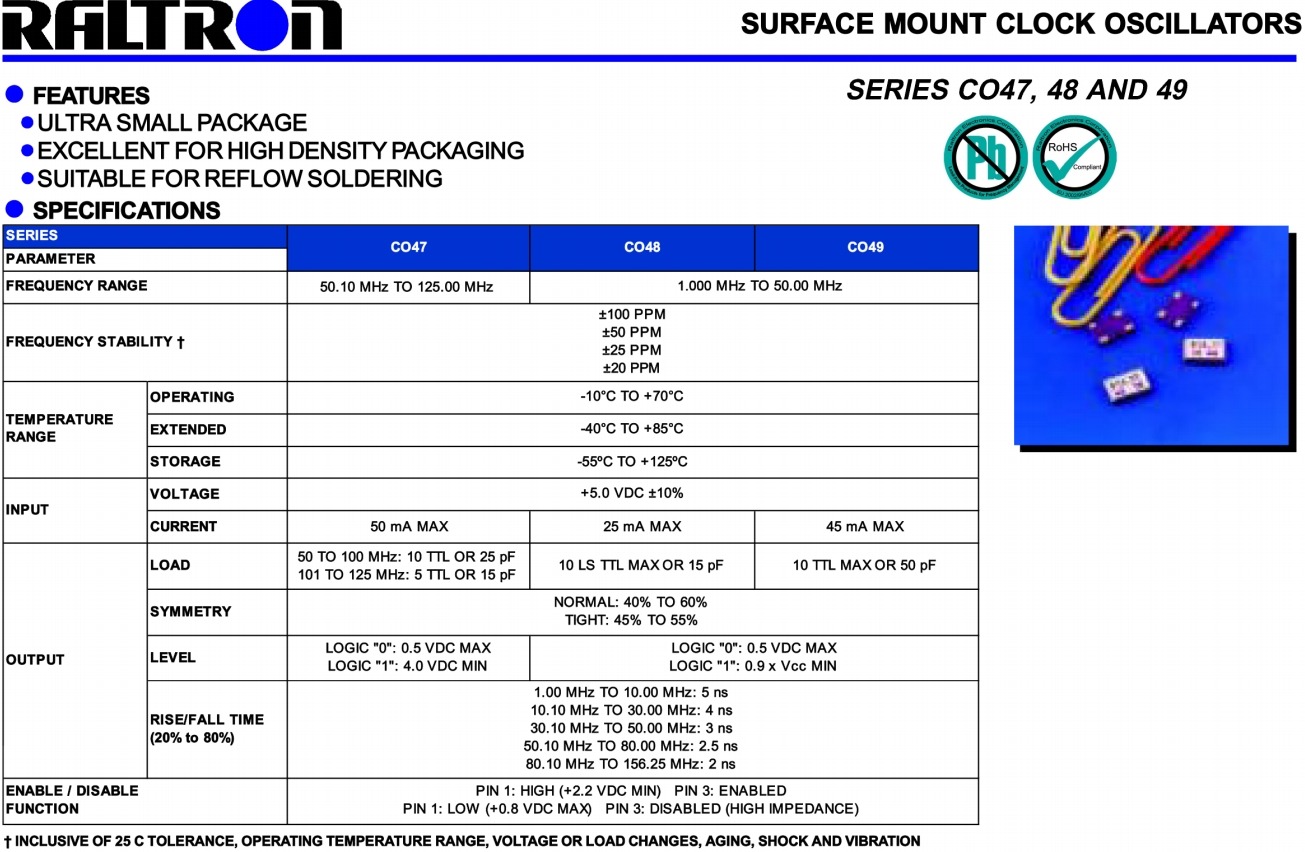

CO4810-12.000-EXT-T-TR,拉隆小型设备晶振,CO48石英有源晶振 参数表
|
型号 |
CO48 (Osc) |
|
|
输出频率范围 |
1.000MHZ~50.000MHZ |
|
|
标准频率 |
12MHZ |
|
|
电源电压范围 |
+1.8~+3.3V |
|
|
电源电压(Vcc) |
+1.8V/+2.6V/+2.8V/+3.0V/+3.3V |
|
|
消耗电流 |
+25mA max.(f≦26MHz)/+2.0mA max.(26＜f≦52MHz) |
|
|
待机时电流 |
- |
|
|
输出电压 |
0.8Vp-p min.(f≦52MHz)/DC-coupled) |
|
|
输出负载 |
10kΩ//10pF |
|
|
频率稳定度 |
常温偏差 |
±1.5×10-6 max.(After 2 reflows) |
|
温度特性 |
±0.5×10-6,±2.5×10-6 max./-30~+85℃ |
|
|
电源电压特性 |
±0.2×10-6 max.(VCC ±5%) |
|
|
负载变化特性 |
±0.2×10-6 max.(10kΩ//10pF±10%) |
|
|
长期变化 |
±1.0×10-6 max./year |
|
|
频率控制 |
控制灵敏度 |
- |
|
频率控制极性 |
- |
|
|
启动时间 |
2.0ms max. |
|

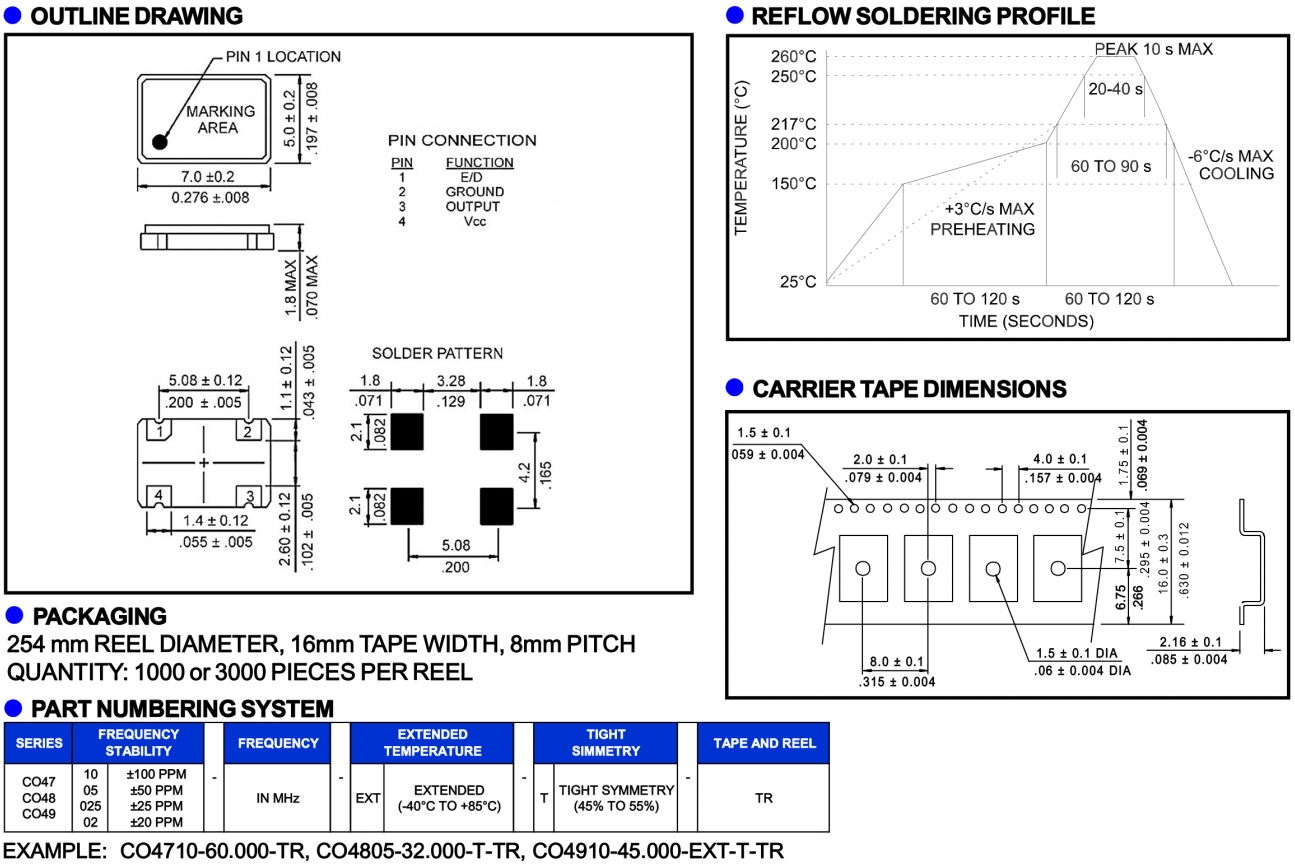

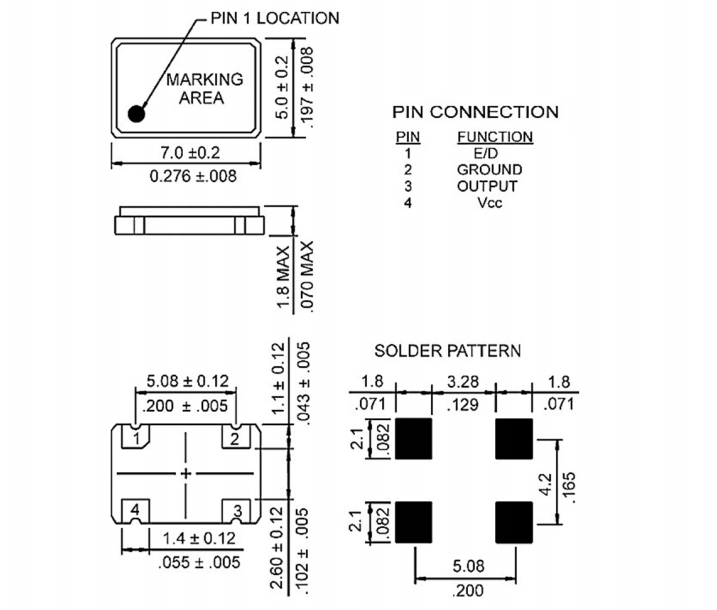

CO4810-12.000-EXT-T-TR,拉隆小型设备晶振,CO48石英有源晶振 尺寸图
CO4810-12.000-EXT-T-TR,拉隆小型设备晶振,CO48石英有源晶振
晶体振荡器产品特性：
尺寸7.0x5.0mm
电压3.3V
工作温度-40°C 至 +85°C
| 元器件详情 | 包装 | Oscillator Type | Operating Frequency | Frequency Stability | Supply Voltage | Operating Temp Range |
| 卷盘 | 50MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4310-50.000-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 50 MHz 7 x 5 mm 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 剪切卷带 | 6MHz | ±100ppm | 3.3V | -10°C to +70°C | ||
| CO4310-6.000-T-TR | ||||||
| Raltron | ||||||
| CO43 系列 6 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 8MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310-8.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 8 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 袋装 | 16.384MHz | ±100ppm | 3V to 3.6V | -10°C to +70°C | ||
| CO4310S-16.384-TR | ||||||
| Raltron | ||||||
| CO43 Series 16.384 MHz 7 x 5 mm 3.6 V ±100 ppm SMT CMOS/TTL Clock Oscillator | ||||||
| 卷盘 | 50MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4310S-50.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 50 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 100MHz | ±25ppm | 3.3V | -20°C to +70°C | ||
| CO46025S-100.000-TR | ||||||
| Raltron | ||||||
| CO46 Series 100 MHz 7 x 5 mm 3.3 V ±25 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 66.67MHz | ±25ppm | 3.3V | -40°C to +85°C | ||
| CO46025S-66.670-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 66.67 MHz 3.3 V ±25 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 散装 | 100MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4605-100.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO46 系列 100 MHz 7 x 5 mm 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 125MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4605-125.000-EXT-TR | ||||||
| Raltron | ||||||
| CO46 系列 125 MHz 7 x 5 mm 3.3 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 60MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4605-60.000M-EXT-TR | ||||||
| Raltron | ||||||
| CO46 Series 60 MHz 7 x 5 mm 3.3 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 62.5MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4605-62.500-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 62.5 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 66MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4605-66.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO46 系列 66 MHz ±50 ppm 3.3 V -40 至 +85°C 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 66MHz | ±50ppm | 3.3V | -20°C to +70°C | ||
| CO4605-66.000-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 66 MHz 3.3 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 80MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4605-80.000-EXT-TR | ||||||
| Raltron | ||||||
| CO46 系列 80 MHz ± 50 ppm 7 x 5 mm 3.3 V 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 66.6MHz | ±50ppm | 3.3V | -40°C to +85°C | ||
| CO4605S-66.600-EXT-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 66.6 MHz 3.3 V ±50 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 剪切卷带 | 133MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4610-133.33-T-TR | ||||||
| Raltron | ||||||
| CO46 系列 133.33 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 剪切卷带 | 60MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4610-60.000-T-TR | ||||||
| Raltron | ||||||
| CO46 系列 60 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 带状包装 | 64MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4610-64.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 64 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 66MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4610-66.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 66 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 剪切卷带 | 66.208MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4610-66.208-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 66.208 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 剪切卷带 | 66.66MHz | ±100ppm | 3.3V | -10°C to +70°C | ||
| CO4610-66.660-T-TR | ||||||
| Raltron | ||||||
| CO46 系列 66.66 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 80MHz | ±100ppm | 3.3V | -20°C to +70°C | ||
| CO4610-80.000-TR | ||||||
| Raltron | ||||||
| CO46 系列 80 MHz 7 x 5 mm 3.3 V ±100 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 60MHz | ±100ppm | 3.3V | -40°C to +85°C | ||
| CO4610S-60.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 60 MHz 3.3 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 64MHz | ±50ppm | 5V | -40°C to +85°C | ||
| CO4705-64.000-EXT-TR | ||||||
| Raltron | ||||||
| CO47 Series 64 MHz 7 x 5 mm 5 V ±50 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 100MHz | ±100ppm | 5V | -20°C to +70°C | ||
| CO4710-100.000-TR | ||||||
| Raltron | ||||||
| CO4 Series 100 MHz 5 V ±100 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 60MHz | ±100ppm | 5V | -10°C to +70°C | ||
| CO4710-60.000-TR | ||||||
| Raltron Crystal | ||||||
| CO47 Series 60 MHz 7 x 5 mm 5 V ±100 ppm Surface Mount Clock Oscillator | ||||||
| 卷盘 | 14.3182MHz | ±25ppm | 5V | -10°C to +70°C | ||
| CO48025-14.31818-TR | ||||||
| Raltron | ||||||
| CO48 系列 14.31818 MHz 7 x 5 mm ±25 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 17.7345MHz | ±25ppm | 5V | -10°C to +70°C | ||
| CO48025-17.734475-TR | ||||||
| Raltron | ||||||
| CO48 系列 17.734475 MHz 7 x 5 mm 5 V ±25 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 29.4912MHz | ±50ppm | 5V | -10°C to +70°C | ||
| CO4805 29.4912-T-TR | ||||||
| Raltron | ||||||
| CO48 系列 29.4912 MHz 7 x 5 mm 5 V ±25 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 11.0592MHz | ±50ppm | 5V | -40°C to +85°C | ||
| CO4805-11.0592M-EXT-TR | ||||||
| Raltron | ||||||
| CO48 系列 11.0592 MHz ± 50 ppm 7 x 5 mm 5 V 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 12.288MHz | ±50ppm | 5V | -20°C to +70°C | ||
| CO4805-12.288MHZ-T | ||||||
| Raltron | ||||||
| CO48 系列 12.288 MHz 7 x 5 mm 5 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 14.7456MHz | ±50ppm | 5V | -20°C to +70°C | ||
| CO4805-14.7456-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 14.7456 MHz 5 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 16MHz | ±50ppm | 5V | -20°C to +70°C | ||
| CO4805-16.000MHZ-T | ||||||
| Raltron | ||||||
| CO4 Series 16 MHz 5 V ±50 ppm -20°C TO +70°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 16.384MHz | ±50ppm | 5V | -10°C to +70°C | ||
| CO4805-16.384M-EXT-TR | ||||||
| Raltron | ||||||
| CO48 系列 16.384 MHz ± 50 ppm 7 x 5 mm 5 V 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 20MHz | ±50ppm | 5V | -10°C to +70°C | ||
| CO4805-20.000MHZ-T | ||||||
| Raltron | ||||||
| CO48 系列 20 MHz 50 ppm 5 V -10 至 70°C 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 27MHz | ±50ppm | 5V | -10°C to +70°C | ||
| CO4805-27.000-EXT-TR | ||||||
| Raltron | ||||||
| CO48 系列 27 MHz ± 50 ppm 7 x 5 mm 5 V 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 29.481MHz | ±50ppm | 5V | -10°C to +70°C | ||
| CO4805-29.481-T-TR | ||||||
| Raltron | ||||||
| CO48 系列 29.481 MHz 7 x 5 mm 5 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 4MHz | ±50ppm | 5V | -20°C to +70°C | ||
| CO4805-4.000-TR | ||||||
| Raltron | ||||||
| CO48 系列 4 MHz 7 x 5 mm 5 V ±50 ppm 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 10MHz | ±100ppm | 5V | -40°C to +85°C | ||
| CO4810-10.000-EXT-TR | ||||||
| Raltron | ||||||
| CO4 Series 10 MHz 5 V ±100 ppm -40°C TO +85°C SMT CMOS Clock Oscillator | ||||||
| 卷盘 | 12MHz | ±100ppm | 5V | -40°C to +85°C | ||
| CO4810-12.000-EXT-T-TR | ||||||
| Raltron | ||||||
| CO48 系列 12 MHz 7 x 5 x 1.8 mm ±100 ppm -40°C 至 +85°C 表面贴装 振荡器 | ||||||
| 卷盘 | 20MHz | ±100ppm | 5V | -40°C to +85°C | ||
| CO4810-20.000-EXT-TR | ||||||
| Raltron | ||||||
| CO48 系列 7 x 5 mm 20 MHz ±100 ppm 5 V -40 至 85°C 表面贴装 时钟振荡器 | ||||||
| 卷盘 | 20MHz | ±100ppm | 5V | -20°C to +70°C | ||
| CO4810-20.000-T-TR | ||||||
| Raltron | ||||||
| CO4 Series 20 MHz 5 V ±100 ppm -20°C TO +70°C SMT CMOS Clock Oscillator |
