SG2016HHN 125.000000MHZ-CCHSZB,爱普生汽车级晶振,6G模块HCSL晶振

SG2016HHN 125.000000MHZ-CCHSZB,爱普生汽车级晶振,6G模块HCSL晶振SG2016HHN 125.000000MHZ-CCHSZB,爱普生汽车级晶振,6G模块HCSL晶振

产品简介

SG2016HHN 125.000000MHZ-CCHSZB,爱普生汽车级晶振,6G模块HCSL晶振，尺寸为2.0*1.6mm，频率为125MHZ，输出逻辑HCSL，HCSL差分输出晶振，HCSL差分晶体振荡器，低电压差分晶振，低抖动差分晶振，低功耗差分晶振，小尺寸差分晶振，通信应用差分晶振，爱普生的SG2016HGN / SG2520HGN, SG2016HHN / SG2520HHN产品系列支持HCSL (High Speed电流转向逻辑)，并满足时间合规抖动要求，直至PCIe Gen6。最大90ps相位抖动，支持频率从25mhz到500mhz，产品组覆盖整个系统大多数网络、数据中心和通信应用的要求。

有源晶振产品主要应用范围广泛，主要包含通信设备采用PCIe Gen5或gen6(SSD、网卡等)，以及6G模块等领域.SG2016HHN 125.000000MHZ-CCHSZB,爱普生汽车级晶振,6G模块HCSL晶振.


产品详情

1SG2016HHN 125.000000MHZ-CCHSZB,爱普生汽车级晶振,6G模块HCSL晶振，尺寸为2.0*1.6mm，频率为125MHZ，输出逻辑HCSL，HCSL差分输出晶振，HCSL差分晶体振荡器，低电压差分晶振，低抖动差分晶振，低功耗差分晶振，小尺寸差分晶振，通信应用差分晶振，爱普生的SG2016HGN / SG2520HGN, SG2016HHN / SG2520HHN产品系列支持HCSL (High Speed电流转向逻辑)，并满足时间合规抖动要求，直至PCIe Gen6。最大90ps相位抖动，支持频率从25mhz到500mhz，产品组覆盖整个系统大多数网络、数据中心和通信应用的要求。

有源晶振产品主要应用范围广泛，主要包含通信设备采用PCIe Gen5或gen6(SSD、网卡等)，以及6G模块等领域.SG2016HHN 125.000000MHZ-CCHSZB,爱普生汽车级晶振,6G模块HCSL晶振.2SG2016HHN 125.000000MHZ-CCHSZB,爱普生汽车级晶振,6G模块HCSL晶振参数图

Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Maximum supply voltage VCC -0.3 - 4.0 V
Input voltage Vin -0.3 - VCC+ 0.5 V
OE/terminal
Storage temperature range T_stg -55 - +125 °C
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Supply voltage VCC 2.375 2.5 2.625 V
3.135 3.3 3.465 V
Supply voltage GND 0.0 0.0 0.0 V
Operating temperature range T_use -40 +25 +85 °C
-40 +25 +105 °C
HCSL load condition L_HCSL 50 Ω

Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Output frequency *1 fo
125
MHz
Frequency tolerance *2 f_tol -20 - +20 ×10-6
Parameter Symbol Specification Unit Conditions
Min. Typ. Max.
Startup time t_str - - 10 ms t = 0 at 90 % VCC
Current consumption ICC - - 35 mA fo ≤ 212 MHz
- - 40 mA fo > 212 MHz
Disable current I_dis - - 25 mA OE = GND
Stand-by current I_std - - 30 μA = GND, T_use Max. = +85 °C
- - 60 μA = GND, T_use Max. = +105 °C
Rise time / Fall time tr / tf - - 0.7 ns 20 % - 80 % (VOH- VOL)
Differential output
rise slew rate / fall slew rate 		Rr / Rf 2 - 10 V/ns Between -0.15 V and 0.15 V
of differential output
Symmetry SYM 45 50 55 % At output crossing point
Output voltage VOH 0.5 - 0.7 V Output option: A, fo ≤ 212 MHz
0.4 - 0.65 V Output option: A, fo > 212 MHz
0.6 - 0.8 V Output option: B, fo ≤ 212 MHz
0.5 - 0.75 V Output option: B, fo > 212 MHz
VOL -0.15 - 0.15 V
Differential swing VSW 0.7 - 1.4 V Output option: A
0.8 - 1.6 V Output option: B
Input voltage VIH 70 % VCC - - V OE/terminal
VIL - - 30 % VCC V
Output disable time (OE) tstp_oe - - 100 ns Measured from the time OE
pin crosses 30 % VCC
Output disable time (ST) tstp_st - - 100 ns Measured from the time
pin crosses 30 % VCC
Output enable time (OE) tsta_oe - - 500 ns Measured from the time OE
pin crosses 70 % VCC
Output enable time (ST) tsta_st - - 10 ms Measured from the time
pin crosses 70 % VCC
Phase jitter
Offset frequency
fo < 50 MHz: 12 kHz to 5 MHz
fo ≥ 50 MHz: 12 kHz to 20 MHz 		tPJ - - 200 fs fo < 100 MHz
- - 90 fs 100 MHz ≤ fo ≤ 156 MHz
- - 70 fs 156 MHz < fo ≤ 212 MHz
- - 60 fs 212 MHz < fo ≤ 391 MHz
- - 50 fs fo > 391 MHz
Jitter tp-p - - 60 ps Peak to Peak Jitter
tc-c - - 60 ps Cycle to cycle jitter
(Peak to Peak)
PCIe jitter limits for CC
architecture 		- - - 0.1 ps For PCIe Gen5
- - 0.06 ps For PCIe Gen6
3

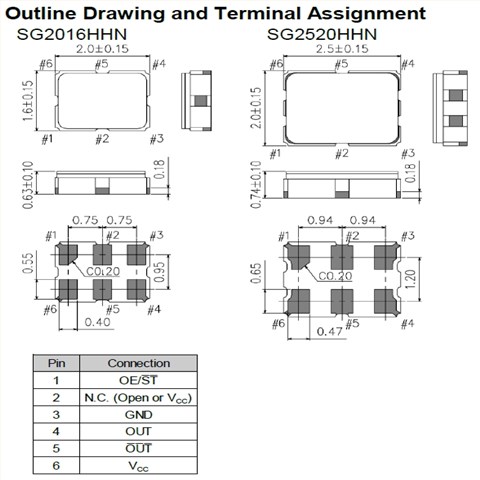

SG2016HHN 125.000000MHZ-CCHSZB,爱普生汽车级晶振,6G模块HCSL晶振尺寸图SG2016HHN SG2520HHN

产品特性：

石英晶体振荡器(SPXO)

频率范围(fo): 25MHz至500MHz

输出:HCSL

供电电压:2.5 V。/ 3.3 V类型

频率公差:±20 × 10-6

工作温度:-40℃~ +105℃

低相位抖动:60fs(fo = 100MHz)

PCIe gen5,6抖动规范兼容SG2016HHN SG2520HHN 1

SG2016HHN SG2520HHN 2
