6G模块差分振荡器,NP2520SA-156.25MHZ-NSC5300B,日本电波晶振，尺寸为2.5*2.0mm，频率156.25MHZ。输出逻辑LVPECL，差分晶振LV-PECL，贴片差分晶振，进口LV-PECL差分振荡器，低电压差分振荡器，低抖动差分晶振，低耗能差分晶振，低电流差分晶振，低相位差分振荡器，6G模块差分晶振，仪器仪器差分晶振，6G光通信差分晶振，无线网络差分振荡器，网络设备差分晶振，贴片型差分晶振，OSC差分晶振，具备低电压低抖动低相位的特点.
LV-PECL晶振产品常常用于6G模块，6G兼容设备，光通信、光收发器，WDM设备，无线网络，小型设备，以及高密度产品等领域.6G模块差分振荡器,NP2520SA-156.25MHZ-NSC5300B,日本电波晶振.

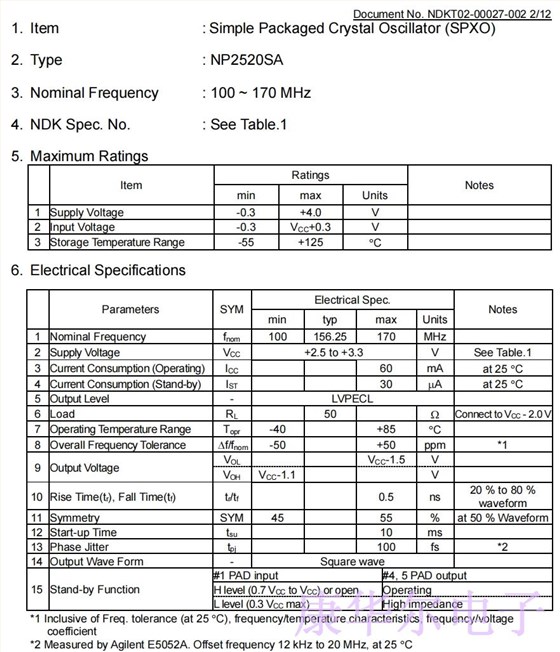

6G模块差分振荡器,NP2520SA-156.25MHZ-NSC5300B,日本电波晶振参数图
Item
Ratings
Notes
min
max
Units
Supply Voltage
-0.3
+4.0
V
Input Voltage
-0.3
VCC+0.3
V
Storage Temperature Range
-55
+125
。C
Parameters
SYM
Electrical Spec.
Notes
min
typ
max
Units
1
Nominal Frequency
fnom
156.25
MHz
2
Supply Voltage
VCC
+2.5 to +3.3
V
See Table.1
3
Current Consumption (Operating)
ICC
60
mA
at 25。C
4
Current Consumption (Stand-by)
IST
30
μA
at 25。C
5
Output Level
-
LVPECL
6
Load
RL
50
Ω
Connect to VCC- 2.0 V
7
Operating Temperature Range
Topr
-40
+85
。C
8
Overall Frequency Tolerance
Δf/fnom
-50
+50
ppm
*1
9
Output Voltage
VOL
VCC- 1.5
V
VOH
VCC- 1.1
V
10
Rise Time(tr), Fall Time(tf)
tr/tf
0.5
ns
20 % to 80 %
waveform
11
Symmetry
SYM
45
55
%
at 50 % Waveform
12
Start-up Time
tsu
10
ms
13
Phase Jitter
tpj
100
fs
*2
14
Output Wave Form
-
Square wave
15
Stand-by Function
#1 PAD input
#4, 5 PAD output
H level (0.7 VCCto VCC) or open
Operating
L level (0.3 VCCmax)
High impedance

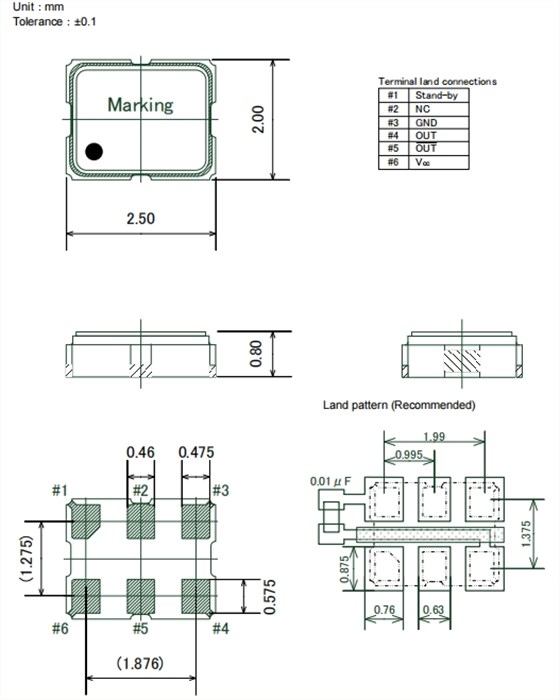

6G模块差分振荡器,NP2520SA-156.25MHZ-NSC5300B,日本电波晶振尺寸图

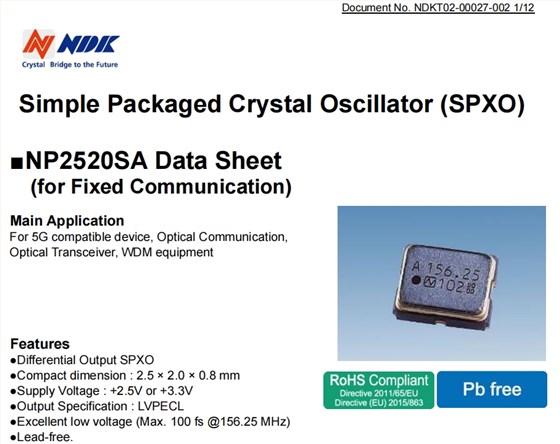

产品特性：
LVPECL差分输出SPXO晶振
紧凑:2.5 x 2.0 x 0.8毫米
电源电压:+2.5V或者+3.3V
低相位抖动:典型。156.25MHz时为100fs
无铅
更多相关日本NDK晶振型号
| Model | Nominal frequency[MHz] | Specification number | 品牌 | Package size(LxW)[mm] | Output specification | Operating temperature rang[℃] | Storage temperature range[℃] | Supply voltage[V] |
| 2725Z | 33MHZ | NSA6297B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 | -55~+125 | +1.8±0.1 |
| 2725Z | 40MHZ | NSA6297B | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 | -55~+125 | +1.8±0.1 |
| 2725Z | 14.31818MHZ | NSA6297C | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 | -55~+125 | +1.8±0.1 |
| 2725Z | 24MHZ | NSA6297C | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 | -55~+125 | +1.8±0.1 |
| 2725Z | 33MHZ | NSA6297C | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 | -55~+125 | +1.8±0.1 |
| 2725Z | 40MHZ | NSA6297C | NDK晶振 | 5.0x3.2 | CMOS | -10~+70 | -55~+125 | +1.8±0.1 |
| NP2520SA | 156.25MHZ | NSC5300A | NDK晶振 | 2.5x2.0 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP2520SA | 156.25MHZ | NSC5300B | NDK晶振 | 2.5x2.0 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP2520SB | 156.25MHZ | NSC5301A | NDK晶振 | 2.5x2.0 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP2520SB | 156.25MHZ | NSC5301B | NDK晶振 | 2.5x2.0 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP2520SAB | 156.25MHZ | NSC5326A | NDK晶振 | 2.5x2.0 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP2520SAB | 156.25MHZ | NSC5326B | NDK晶振 | 2.5x2.0 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP2520SBB | 156.25MHZ | NSC5327A | NDK晶振 | 2.5x2.0 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP2520SBB | 156.25MHZ | NSC5327B | NDK晶振 | 2.5x2.0 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 100MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 122.88MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 125MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 156.25MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 175MHZ | NSC5080A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 100MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 122.88MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 125MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 156.25MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 175MHZ | NSC5341B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 100MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 122.88MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 125MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 156.25MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 175MHZ | NSC5189A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 100MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 122.88MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 125MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 156.25MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 175MHZ | NSC5342B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 200MHZ | NSC5235A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 212.5MHZ | NSC5235A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SA | 200MHZ | NSC5235B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 212.5MHZ | NSC5235B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SA | 200MHZ | NSC5237A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 212.5MHZ | NSC5237A | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SA | 200MHZ | NSC5237B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SA | 212.5MHZ | NSC5237B | NDK晶振 | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3±0.33 |
| NP3225SB | 50MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 100MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 125MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 135MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 148MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 156.25MHZ | NSC5343A | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 200MHZ | NSC5236A | NDK CRYSTAL | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +2.5±0.125 |
| NP3225SB | 50MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 100MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 125MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 135MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 148MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 156.25MHZ | NSC5343B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 200MHZ | NSC5236B | NDK晶振 | 3.2x2.5 | LVDS | -40~+85 | -55~+125 | +3.3±0.33 |
| NP3225SB | 50MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 100MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 125MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 135MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 148MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 156.25MHZ | NSC5344A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 200MHZ | NSC5238A | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +2.5±0.125 |
| NP3225SB | 50MHZ | NSC5344B | NDK晶振 | 3.2x2.5 | LVDS | -40~+105 | -55~+125 | +3.3±0.33 |
