X1G0042610119,6G放大器晶振,爱普生差分晶振SG5032VAN

X1G0042610119,6G放大器晶振,爱普生差分晶振SG5032VAN，尺寸为5.0*3.2mm,频率为120MHZ,输出逻辑LVDS，SPXO差分振荡器，LVDS输出差分晶振，差分晶体振荡器，OSC差分晶振，贴片差分晶振，进口石英差分晶振，有源差分晶振，低电压差分振荡器，低功耗差分晶振，6G应用差分振荡器，仪器设备差分晶振，蓝牙模块差分晶振，智能家居差分振荡器，通讯差分晶振，无线网络差分晶振，工业级差分振荡器.

LVDS晶振产品常常用于各个之中，其中包含仪器设备，蓝牙模块，智能家居，通讯产品，无线网络，工业级产品，消费产品，6G室外晶振等领域.X1G0042610119,6G放大器晶振,爱普生差分晶振SG5032VAN.

X1G0042610119,6G放大器晶振,爱普生差分晶振SG5032VAN 参数表

Item

Symbol

Specifications

Conditions / Remarks

LV-PECL

LVDS

SG3225EAN / SG5032EAN /
SG7050EAN

SG3225VAN / SG5032VAN /
SG7050VAN

Output frequency range

120 MHz

Please contact us about available frequencies.

Supply voltage

VCC

K: 2.5 V - 10 % to 3.3 V + 10 %

Storage temperature

T_stg

-40°C to +125°C

Storage as single product.

Operating temperature

T_use

B: -20°C to +70°C, G: -40°C to +85°C

Frequency tolerance

f_tol

J:±50×10-6, E:±30×10-6, C:±20×10-6

Current consumption

ICC

65 mA Max.

30 mA Max.

OE = Vcc, L_ECL = 50 Q or L_LVDS = 100 Q

Disable current

I_dis

20 mA Max.

OE = GND

Symmetry

SYM

45 % to 55 %

At outputs crossing point

Output voltage (LV-PECL)

VOH

VCC- 1.0 V to VCC- 0.8 V

−

DC characteristics

VOL

VCC- 1.78 V to VCC- 1.62 V

−

Output voltage (LVDS)

VOD

−

250 mV to 450 mV

VOD1, VOD2

DC characteristics

VOD

−

50 mV Max.

dVOD=|VOD1-VOD2|

VOS

−

1.15 V to 1.35 V

VOS1, VOS2

VOS

−

150 mV Max .

dVOS=|VOS1-VOS2|

Output load condition
(ECL) / (LVDS)

L_ECL

50 Q

−

Terminated to VCC-2.0 V

L_LVDS

−

100 Q

Connected between OUT to OUT

Input voltage

VIH

70 % VCCMin .

OE terminal

VIL

30 % VCCMax.

Rise time / Fall time

tr/ tf

350 ps Max.

300 ps Max.

LV-PECL:Between 20 % and 80 % of (VOH-VOL) .
LVDS:Between 20 % and 80 %of Differential Output
peak to peak voltage

Start-up time

t_str

3 ms Max.

Time at minimum supply voltage to be 0 s

Phase Jitter

0.6 ps Max .*1

Offset frequency: 12 kHz to 20 MHz

Frequency aging

f_age

±5×10-6/ year Max.

+25°C, First year, VCC= 2.5 V, 3.3 V

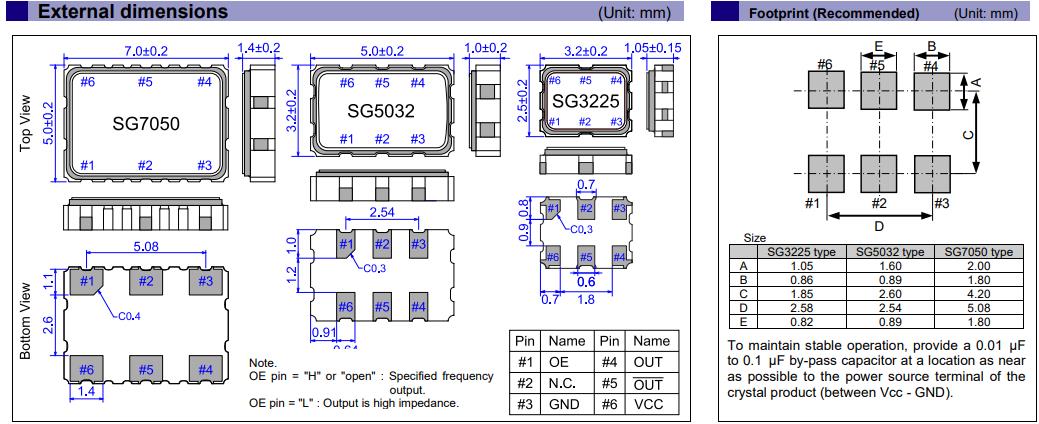

X1G0042610119,6G放大器晶振,爱普生差分晶振SG5032VAN 尺寸表

差分晶振产品特性：

通过锁相环技术实现宽频率范围

基本AT晶体单位

频率范围:73.5 MHz至700 MHz

电源电压:2.5 V至3.3 V

功能:输出使能(OE)

输出:LV-PECL或LVDS

更多相关爱普生晶振型号

编码	品牌	型号	频率	尺寸	输出方式	电源电压	工作温度
X1G0042510107	爱普生晶振	SG3225EAN	98.304000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510111	爱普生晶振	SG3225EAN	133.330000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510112	爱普生晶振	SG3225EAN	144.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510113	爱普生晶振	SG3225EAN	174.703100 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510114	爱普生晶振	SG3225EAN	320.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510115	爱普生晶振	SG3225EAN	500.000000 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042510121	爱普生晶振	SG3225EAN	161.132812 MHz	3.20 x 2.50 x 1.20 mm	LV-PECL	2.250 to 3.630 V	-40 to 85 °C
X1G0042610001	爱普生晶振	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610002	爱普生晶振	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610003	爱普生晶振	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610005	爱普生晶振	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610006	爱普生晶振	SG5032VAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610007	爱普生晶振	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610008	爱普生晶振	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610009	爱普生晶振	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610010	爱普生晶振	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610011	爱普生晶振	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610012	爱普生晶振	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610013	爱普生晶振	SG5032VAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610015	爱普生晶振	SG5032VAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610016	爱普生晶振	SG5032VAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610017	爱普生晶振	SG5032VAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610020	爱普生晶振	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610021	爱普生晶振	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610023	爱普生晶振	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610024	爱普生晶振	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610025	爱普生晶振	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610026	爱普生晶振	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610027	爱普生晶振	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610028	爱普生晶振	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610029	爱普生晶振	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610030	爱普生晶振	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610031	爱普生晶振	SG5032VAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610033	爱普生晶振	SG5032VAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610034	爱普生晶振	SG5032VAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610035	爱普生晶振	SG5032VAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610036	爱普生晶振	SG5032VAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-40 to 85 °C
X1G0042610039	爱普生晶振	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610040	爱普生晶振	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610042	爱普生晶振	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610043	爱普生晶振	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610044	爱普生晶振	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610045	爱普生晶振	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610046	爱普生晶振	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610047	爱普生晶振	SG5032VAN	74.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610048	爱普生晶振	SG5032VAN	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610049	爱普生晶振	SG5032VAN	75.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610050	爱普生晶振	SG5032VAN	150.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610052	爱普生晶振	SG5032VAN	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610053	爱普生晶振	SG5032VAN	312.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610054	EPSON晶振	SG5032VAN	312.515625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610055	爱普生晶振	SG5032VAN	161.132800 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610058	爱普生晶振	SG5032VAN	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610059	爱普生晶振	SG5032VAN	125.006250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610061	爱普生晶振	SG5032VAN	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610062	爱普生晶振	SG5032VAN	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610063	爱普生晶振	SG5032VAN	400.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610064	爱普生晶振	SG5032VAN	106.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
X1G0042610065	爱普生晶振	SG5032VAN	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.250 to 3.630 V	-20 to 70 °C
