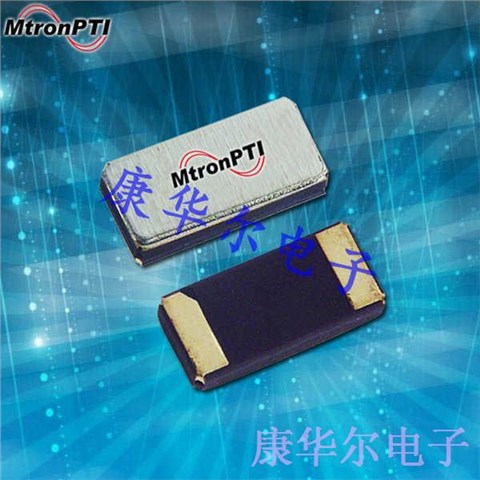

M15322GZL 0.032768|M1532|无源晶振|MTRONPTI晶振

M15322GZL 0.032768|M1532|无源晶振|MTRONPTI晶振,贴片晶振,编码M15322GZL 0.032768,型号M1532,无源晶振,MTRONPTI晶振,精度±20ppm,负载电容12.5PF,温度范围:-40℃-85℃,尺寸1.5mm*3.2mm,3215晶振,晶体谐振器,可以应用在手机,智能手机,电脑,笔记本,智能电视,智能手表,数码相机,智能游戏机等.

M15322GZL 0.032768|M1532|无源晶振|MTRONPTI晶振

型号	M1532
频率范围	0.032768MHZ
负载电容	12.5PF
精度	20PPM
工作温度	-40℃-85℃
存在温度	-40℃-85℃

M15322GZL 0.032768|M1532|无源晶振|MTRONPTI晶振

Part number	Series Datasheet	Crystal Resonator Technology	Frequency Stability	Frequency (MHz)	Frequency Tolerance	Aging	Package	Temperature Range
M12532HH 25.000000	M1253 Series	AT	±25 ppm	25	±25 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532HH 27.000000	MTRONPTI代理商	AT	±25 ppm	27	±25 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532HH 30.000000	M1253 Series	AT	±25 ppm	30	±25 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532HH 50.000000	M1253 Series	AT	±25 ppm	50	±25 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532JJ 25.000000	M1253 Series	AT	±30 ppm	25	±30 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532JJ 27.000000	M1253 Series	AT	±30 ppm	27	±30 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532JJ08 16.384000	M1253 Series	AT	±30 ppm	16.384	±30 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532JJ08 25.000000	M1253 Series	AT	±30 ppm	25	±30 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532JJ09 50.000000	M1253 Series	AT	±30 ppm	50	±30 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532JM 15.360000	M1253 Series	AT	±50 ppm	15.36	±30 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532JM 27.000000	M1253 Series	AT	±50 ppm	27	±30 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532JM 29.491200	M1253 Series	AT	±50 ppm	29.4912	±30 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532JM 40.000000	M1253 Series	AT	±50 ppm	40	±30 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12532JM20 25.000000	M1253 Series	AT	±50 ppm	25	±30 ppm	±5 ppm	2.5 x 3.2 mm	-40?C to +85?C
M12536GJ 25.000000	M1253 Series	AT	±30 ppm	25	±20 ppm	±5 ppm	2.5 x 3.2 mm	-20?C to +70?C
M12536JM 24.000000	M1253 Series	AT	±50 ppm	24	±30 ppm	±5 ppm	2.5 x 3.2 mm	-20?C to +70?C
M12536JM 25.000000	M1253 Series	AT	±50 ppm	25	±30 ppm	±5 ppm	2.5 x 3.2 mm	-20?C to +70?C
M12536JM 50.000000	M1253 Series	AT	±50 ppm	50	±30 ppm	±5 ppm	2.5 x 3.2 mm	-20?C to +70?C
M1002S209 4.000000	MP-1 Series	AT	±20 ppm	4	±20 ppm	±5 ppm	HC-49U	-55?C to +105?C
M1002S210 5.482000	MP-1 Series	AT	±50 ppm	5.482	±20 ppm	±5 ppm	HC-49U	-55?C to +105?C
M1002S223 16.666600	MP-1 Series	AT	±30 ppm	16.6666	±20 ppm	±5 ppm	HC-49U	-40?C to +85?C
M1002S348 4.730880	MP-1 Series	AT	±50 ppm	4.7309	±30 ppm	±5 ppm	HC-49U	-20?C to +70?C
M1002S350 3.686400	MP-1 Series	AT	±100 ppm	3.6864	±30 ppm	±5 ppm	HC-49U	-20?C to +70?C
M1002S351 11.059200	MP-1 Series	AT	±100 ppm	11.0592	±30 ppm	±5 ppm	HC-49U	-20?C to +70?C
